Air Tac US98A120100
Air Pneumatic PU Tube Tube OD 12 Tube ID 10
Product Description:
Pneumatic PU Tube is made of superior PU material, which provides
excellent anti-knot, anti-abrasion, anti-corrosion and anti-aging
features. It has a smooth surface that ensures the tube to be used
more flexibly and be connected to other equipment more smoothly.
Besides, its temperature resistance range is -20℃ to 70℃, and its
burst pressure at 23℃ is up to 10 bar. The tube ID is 10mm, thus
making it suitable for a variety of applications.
Features:
The plastic polyurethane material used for this product meets the
requirements of the ROHS environmental protection standard. It
features a high degree of elasticity, allowing it to easily pass
through tight spaces. Additionally, it has better anti-knot effects
than other plastic tubes.
Moreover, the excellent flexibility of the product allows it to
sustain multiple expansions without damage. Not only that, it also
has an extended operational life and is resistant to abrasion. In
addition, the low permeability of gas prevents leakage and
eliminates any environmental pollution caused by solvents.
On top of that, the product offers excellent physical
characteristics and low compression. Its wide resistance to
chemicals, water, fuel, oil, and bacterium, makes it an even more
desirable product.
Technical Parameters:
| Number ① | Tube OD (mm) | Tube ID (mm) | Wall Thiknes (mm) | Package Length (m) | Working Pressure At 23℃ (bar)② | Burst Pressure At 23℃(bar) | Bend Radius (mm) | Weight Per 100 M (kg) | Temperature (℃) |
| US98A040025□□ | 4.0 | 2.5 | 0.75 | 200 | 8.0 | 35 | 10 | 0.94 | -20~70 |
| US98A060040□□ | 6.0 | 4.0 | 1.00 | 200 | 7.5 | 30 | 15 | 1.93 |
| US98A080050□□ | 8.0 | 5.0 | 1.50 | 100 | 8.0 | 35 | 20 | 3.66 |
| US98A080055□□ | 8.0 | 5.5 | 125 | 100 | 6.0 | 24 | 20 | 3.25 |
| US98A080060□□ | 8.0 | 6.0 | 1.00 | 100 | 4.0 | 16 | 25 | 2.70 |
| US98A100065□□ | 10.0 | 6.5 | 1.75 | 100 | 8.0 | 32 | 25 | 5.44 |
| US98A100080□□ | 10.0 | 8.0 | 1.00 | 100 | 2.5 | 10 | 40 | 3.47 |
| US98A120080□□ | 12.0 | 8.0 | 2.00 | 100 | 7.5 | 30 | 35 | 7.56 |
| US98A120100□□ | 12.0 | 10.0 | 1.00 | 100 | 2.0 | 8 | 60 | 4.24 |
| US98A160120□□ | 16.0 | 12.0 | 2.00 | 100 | 7.5 | 30 | 80 | 8.32 |
Note:

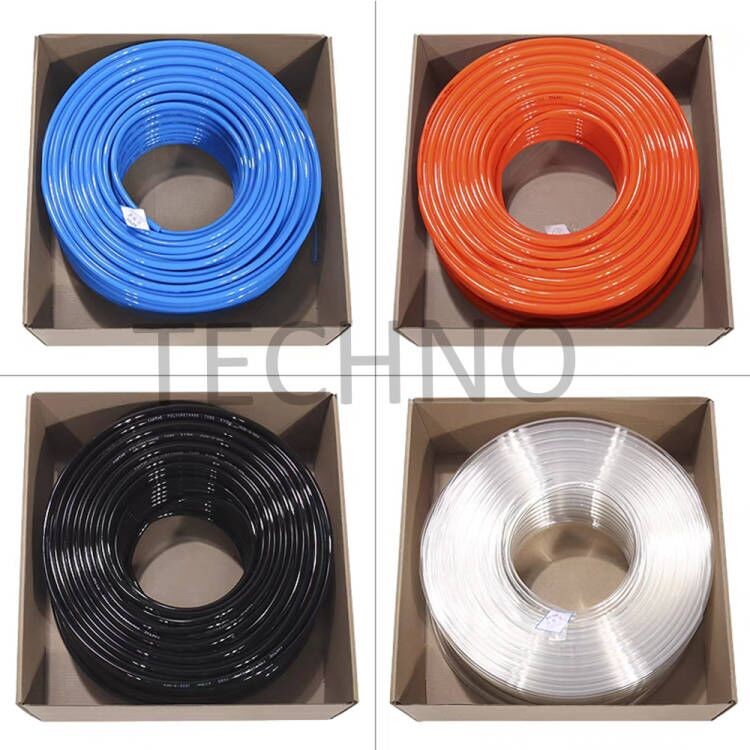

①: The first square of “□□”in the type column is for ordering code
"unit" and the second is for "color'. Blue,black,orange
and clear are standardd colors. Individual orders shall be placed
for other colors.
② : Working pressure:3to 1 safety factor.
Applications:
Hoses are widely-used in various automation industries, such as
automobiles, mechanical manufacturing, metallurgy, electronic
technology, light industry textiles, ceramics, medical devices,
food packaging, etc.
It is able to withstand acidic and alkaline environments, exposure
to chemicals, organic solvents, seawater, corrosive gases, and
other media, as well as being able to use in prolonged exposure to
sunlight or heat.
However, hoses are prone to cracking, damage, etc. It is
recommended to avoid using it under such working conditions as much
as possible.
Support and Services:
Technical Support and Service for Pneumatic PU Tube
We provide technical support and service for Pneumatic PU Tube to
ensure our customers' convenience.
- Technical consultation and product selection service
- Installation guidance and after-sales service
- Remote troubleshooting service
- Product maintenance and repair service
- Provide professional technical support and guidance
Packing and Shipping:
Pneumatic PU Tube Packaging and Shipping
- Packaging: Pneumatic PU Tube shall be packaged in cartons or other
suitable containers.
- Shipping: Pneumatic PU Tube shall be shipped in accordance with
customer’s instructions.
FAQ:
Q: What is 'Pneumatic PU Tube'?
A: Pneumatic PU Tube is a kind of polyurethane tube which is a kind
of air hose used for conveying compressed air and inert gas in
pneumatic systems.
Q: What is the Brand Name for Pneumatic PU Tube?
A: The Brand Name for Pneumatic PU Tube is Air Tac.
Q: What is its Model Number?
A: The Model Number for Pneumatic PU Tube is US98A120100.
Q: Where is it made?
A: Pneumatic PU Tube is made in China.
Q: What is the minimum order quantity?
A: The minimum order quantity for Pneumatic PU Tube is one meter.
