Hydraulic Oil Cylinder TRH1.50MF1LT14X18.00
20MPa with Cushion at Both Ends -10°F ~ +165°Fer
Product Description:
Parker Series 2H Heavy Duty Hydraulic Cylinders demonstrate
superior performance, durability, and trouble-free operation. The
design and construction of the cylinders benefit from Parker's
superior design, using high quality materials and stringent
manufacturing practices. This provides customers the longest
service life possible and reduced operating costs.
The cylinder features the “Jewel” rod gland, hard chrome plated
piston rods, and stepped cushions to guarantee increased machine
productivity. This is due to the reduced downtime, faster cycle
times, and improved system efficiency. To ensure that the cylinders
are in defect-free condition, each individual cylinder is tested
before leaving the factory.
The Parker Series 2H cylinders are the best choice for all
industrial hydraulic application demands, providing a great
performance vote for value.
Features:
Primary Seal
TS-2000 Rod Seal is designed to be completely leakproof. Its unique
self-compensating and self-relieving feature is able to withstand
any possible variations and effectively cope with any potential
mechanical deflection.
Jewel Rod Gland Assembly
This assembly is unique in that it can be replaced without needing
to disassemble the cylinder. It sports a long bearing surface which
is inboard of the seals, guaranteeing that it gets the necessary
lubrication from within the cylinder. A sturdy O-ring is used to
complete the seal and assure its tight connection between the gland
and head, acting like a prevailing torque-type lock.
Secondary Seal
The Double-Service Wiperseal™ was specially designed to both wipe
away any oil film adhering to the rod during the extend stroke and
clean it on the return stroke.
Piston Rod Stud
This part is available on 2.000" diameter rods and smaller, and can
only be used alongside standard style #4 rod end threads. The
threads of the studs have been carefully rolled and they have all
been made from high strength steel. The connection between the stud
and piston rod is solidified with anaerobic adhesive.
Piston Rod
These rods are made of medium carbon steel. The inductions
casehardening, hard chrome-plating and polishing to 10 RMS finish
make them incredibly strong. Depending on the size, the material
always has a minimum yield between 85,000 and 100,000 psi between
0.625" to 4.000". While larger diameters may vary between 57,000 to
90,000 psi depending on their rod diameter.
Ports
Standard ports are SAE “O” ring ports, although NPTF ports are
available as an optional at no extra charge. Oversize NPTF and SAE
ports can be supplied for an extra fee.
Applications:
Parker's TRH1.50MF1LT14X6.00 Hydraulic Oil Cylinder is a important
component for industrial equipment. It is made with high quality
materials and certified by CE. It has a nominal pressure of 3000
psi and is capable of withstanding tension loads of J, JB, and JJ.
It is designed to work with hydraulic oil and comes with a standard
square head. The minimum order quantity is 1 and the price is
negotiable. It will be packaged in cartons and can be delivered
within 1-7 work days after payment. Payment terms include T/T,
Western Union, and Paypal. The supply ability is 5000PCs per month.
Flange Mountings – J, JB, JJ, H, HB, and HH
Application:
• Straight line force transfer
• Compression loads (push) – use H, HB or HH
• Tension loads (pull) – use J, JB, or JJ
Advantages:
• Rigid base mounting due to large flange area
• Force is transferred along the centerline of the cylinder
Pivot Mountings – BB and SB
Application:
• Curved or arc line force transfer
• Can be used in compression or tension loads
• Movement in a simple arc – use BB mountings
• Movement in a compound arc – use SB mountings
Advantages:
• Ease of mounting
• Design flexibility
• Self aligning (SB)
Trunnion Mountings – D, DB, DD and DE
Application:
• Curved or arc line force transfer
• Can be used in compression or tension loads
• Compression loads – use DB or DD, DE mountings
• Tension loads – use D, DD or DE mountings
Advantages:
• Ease of mounting
• Design flexibility
• Self aligning
Technical Parameters:

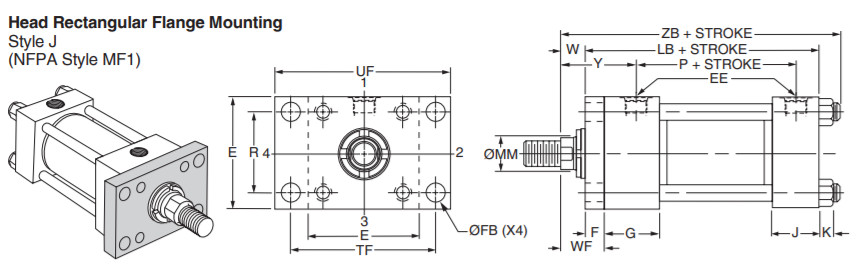

| Style J – Dimensional and Mounting Data |
Bore
Ø | Rod
No. | MM
Rod
Ø | W | WF | Y | Add Stroke |
| ZB Max. |
| 1.50 | 1 (std.) | 0.625 | 0.63 | 1.00 | 2.00 | 6.25 |
| 2 | 1.000 | 1.00 | 1.38 | 2.38 | 6.63 |
| 2.00 | 1 (std.) | 1.000 | 0.75 | 1.38 | 2.38 | 6.69 |
| 2 | 1.375 | 1.00 | 1.63 | 2.63 | 6.94 |
| 2.50 | 1 (std.) | 1.000 | 0.75 | 1.38 | 2.38 | 6.81 |
| 2 | 1.750 | 1.25 | 1.88 | 2.88 | 7.31 |
| 3 | 1.375 | 1.00 | 1.63 | 2.63 | 7.06 |
| 3.25 | 1 (std.) | 1.375 | 0.88 | 1.63 | 2.75 | 7.94 |
| 2 | 2.000 | 1.25 | 2.00 | 3.13 | 8.31 |
| 3 | 1.750 | 1.13 | 1.88 | 3.00 | 8.19 |
| 4.00 | 1 (std.) | 1.750 | 1.00 | 1.88 | 3.00 | 8.50 |
| 2 | 2.500 | 1.38 | 2.25 | 3.38 | 8.88 |
| 3 | 2.000 | 1.13 | 2.00 | 3.13 | 8.63 |
| 5.00 | 1 (std.) | 2.000 | 1.13 | 2.00 | 3.13 | 9.38 |
| 2 | 3.500 | 1.38 | 2.25 | 3.38 | 9.63 |
| 3 | 2.500 | 1.38 | 2.25 | 3.38 | 9.63 |
| 4 | 3.000 | 1.38 | 2.25 | 3.38 | 9.63 |
| 6.00 | 1 (std.) | 2.500 | 1.25 | 2.25 | 3.50 | 10.81 |
| 2 | 4.000 | 1.25 | 2.25 | 3.50 | 10.81 |
| 3 | 3.000 | 1.25 | 2.25 | 3.50 | 10.81 |
| 4 | 3.500 | 1.25 | 2.25 | 3.50 | 10.81 |
| Style J – Dimensional and Mounting Data |
Bore
Ø | E | EE | F | FB
Ø | G | J | K | R | TF | UF | Add Stroke |
| NPTF1 | SAE2 | LB | P |
| 1.50 | 2.50 | 1/2 | 10 | 0.38 | 0.44 | 1.75 | 1.50 | 0.38 | 1.63 | 3.44 | 4.25 | 5.00 | 2.88 |
| 2.00 | 3.00 | 1/2 | 10 | 0.63 | 0.56 | 1.75 | 1.50 | 0.44 | 2.05 | 4.13 | 5.13 | 5.25 | 2.88 |
| 2.50 | 3.50 | 1/2 | 10 | 0.63 | 0.56 | 1.75 | 1.50 | 0.44 | 2.55 | 4.63 | 5.63 | 5.38 | 3.00 |
| 3.25 | 4.50 | 3/4 | 12 | 0.75 | 0.69 | 2.00 | 1.75 | 0.56 | 3.25 | 5.88 | 7.13 | 6.25 | 3.50 |
| 4.00 | 5.00 | 3/4 | 12 | 0.88 | 0.69 | 2.00 | 1.75 | 0.56 | 3.82 | 6.38 | 7.63 | 6.63 | 3.75 |
| 5.00 | 6.50 | 3/4 | 12 | 0.88 | 0.94 | 2.00 | 1.75 | 0.81 | 4.95 | 8.19 | 9.75 | 7.13 | 4.25 |
| 6.00 | 7.50 | 1 | 16 | 1.00 | 1.06 | 2.25 | 2.25 | 0.88 | 5.73 | 9.44 | 11.25 | 8.38 | 4.88 |
