Rexroth Hydraulic valve Industrial Automation
4WE6C62/EG24N9K4

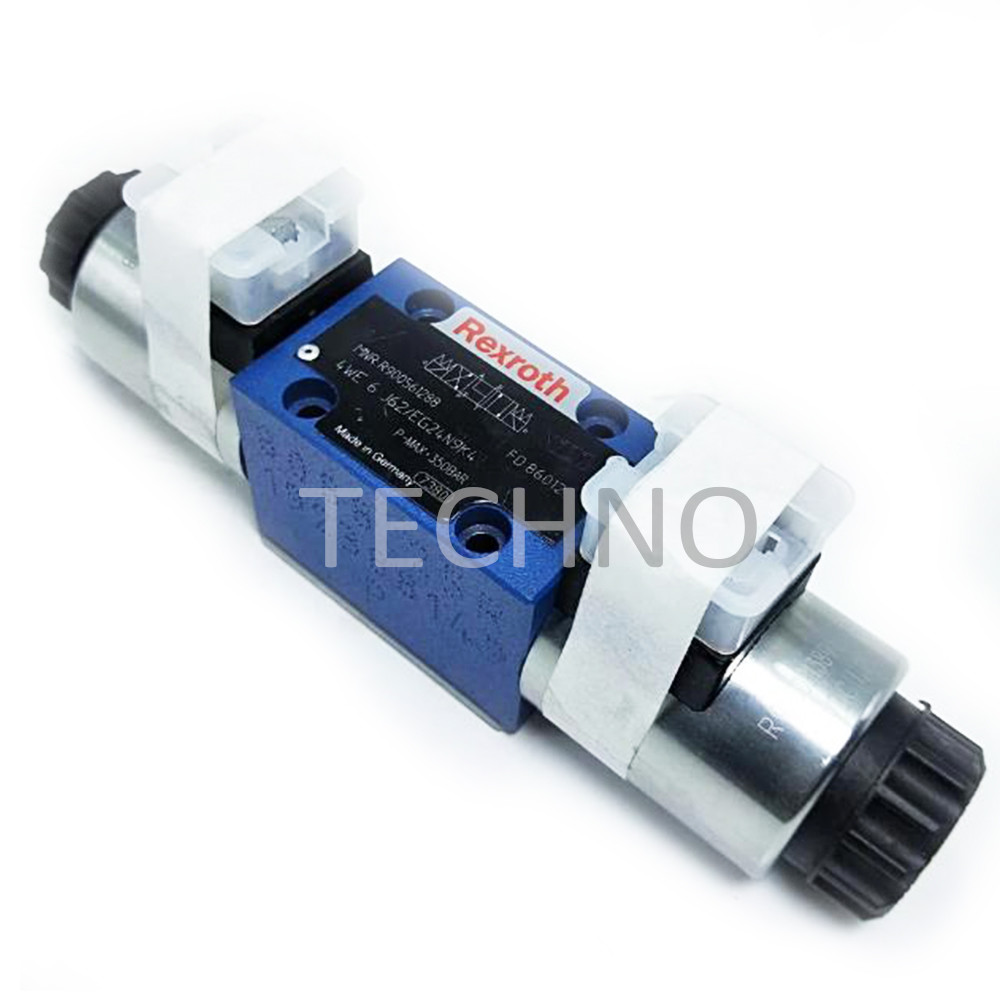

Rexroth 4WE6C62/EG24N9K4 Hydraulic Valve Industrial Automation
Power Consumption 30W
Product Description:
Hydraulic Control Valve is an essential part of any hydraulic
system, enabling precise control of pressure and flow for a wide
range of applications. It offers maximum flow of 80 (DC) and 60
(AC) L/min, power consumption of 30W, holding power of 50VA and
ambient temperature range of –30 to +50 (NBR Seals) °C, and can be
installed in any position. It is designed to maintain a constant
pressure in the system, even when the flow rate changes, thus
providing reliable and safe operation. The Pressure Control Valve
offers excellent control accuracy and repeatability, and is
suitable for a wide range of applications, from industrial to
automotive. It is easy to install and maintain, making it the ideal
choice for any hydraulic system.
Features:
This high-performance direct operated directional spool valve is
operated using a solenoid. It has porting patterns according to DIN
24340 form A, ISO 4401-03-02-05, and NFPA T3.5.1 R2-2002 D03.
Subplates are to be referred to the data sheet RE 45052. The
solenoid has a wet-pin design and can use DC or AC voltage. It also
has a detachable coil, which can be rotated by 90° and changed
without having to open the pressure-tight chamber. The electrical
connection is either individual or central. A manual override is
available as an optional feature. For a smoothly switching variant,
see RE 23183. An inductive position switch and proximity sensor
(contactless) is to be referred to RE 24830. Useful supplementary
documentation includes "General product information on hydraulic
products" (RE 07008) and "Installation, commissioning and
maintenance of industrial valves" (RE 07300).
Technical Parameters:
| Property | Value |
|---|
| Power consumption | 30W |
| Application | Industrial Automation |
| Ambient temperature range | –30 To +50 (NBR Seals) °C |
| Holding power | 50VA |
| Installation position | Any |
| Hydraulic fluid | Oil |
| Maximum flow | 80 (DC); 60 (AC) L/min |
| Viscosity range | 2.8 To 500 Mm2/s |
| AC solenoid, 50 Hz | Lower rated current I 1 in A | Upper rated current I 2 in A |
| W24 | 2.3 | 3.6 |
| W42 | 1.45 | 1.92 |
| W48 | 1.15 | 1.92 |
| W100 | 0.64 | 0.9 |
| W110 | 0.6 | 0.9 |
| W115 | 0.52 | 0.9 |
| W127 | 0.48 | 0.6 |
| W200 | 0.33 | 0.6 |
| W220 | 0.31 | 0.6 |
| W230 | 0.26 | 0.36 |
| W240 | 0.26 | 0.36 |
| AC solenoid, 60 Hz | Lower rated current I 1 in A | Upper rated current I 2 in A |
| W24 | 1.73 | 2.4 |
| W42 | 1.13 | 1.92 |
| W48 | 1.09 | 1.92 |
| W100 | 0.58 | 0.9 |
| W110 | 0.52 | 0.9 |
| W115 | 0.43 | 0.9 |
| W127 | 0.37 | 0.6 |
| W200 | 0.3 | 0.6 |
| W220 | 0.26 | 0.36 |
| W230 | 0.2 | 0.36 |
| W240 | 0.22 | 0.36 |
Applications:
Hydraulic valve production is widely used in numerous fields and is
an important part of many industries, such as construction
machinery, mining machinery, hydraulic elevators, injection molding
machines, bending and stamping equipment, casting plants, steel
mills, CNC machine tools, and agricultural machinery.
The production of hydraulic valves also has a diverse range of
applications in different areas. It can be found in coking plants,
coal mines, packaging machines, and steel mills. Furthermore, they
are necessary components of injection molding machines, bending and
stamping equipment, as well as casting plants and CNC machine
tools.
In conclusion, hydraulic valve production has many applications for
various industries and fields, ranging from construction machinery
to agricultural machinery.
Support and Services:
Hydraulic Control Valve Technical Support and Service
We provide technical support and service for our Hydraulic Control
Valve product. Our team of experienced technicians can answer any
questions you may have about the product and can provide assistance
with installation, operation, maintenance and troubleshooting.
We also offer a comprehensive warranty for our Hydraulic Control
Valve product that covers parts and labor. This warranty includes
free repair or replacement of any defective parts and free labor
for any necessary repairs or replacements.
If you need assistance with your Hydraulic Control Valve product,
please don't hesitate to contact us. Our customer service team is
always ready to help.
Packing and Shipping:
Packaging and Shipping for Hydraulic Control Valve
The Hydraulic Control Valve is safely packaged for shipment in a
box or crate. Shipping is done via air freight, truck, or boat
depending on the size of the order and destination.
