    Rexroth HED8OA-2X/200 Hydraulic Directional Control Valve CE Certificate

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : HED8OA-2X/200
    Certification : CE
    Price : Negotiation
    Delivery Time : 1-7Work Days After Payment
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 pieces/1Month
    • Product Details
    • Company Profile

    Rexroth HED8OA-2X/200 Hydraulic Directional Control Valve CE Certificate

    Rexroth HED8OA-2X/200

    Efficient Insulation Coordination Pressure Control Switch


    Rexroth HED8OA-2X/200 Efficient Insulation Coordination Pressure Control Switch For Precision Control



    Product Description:

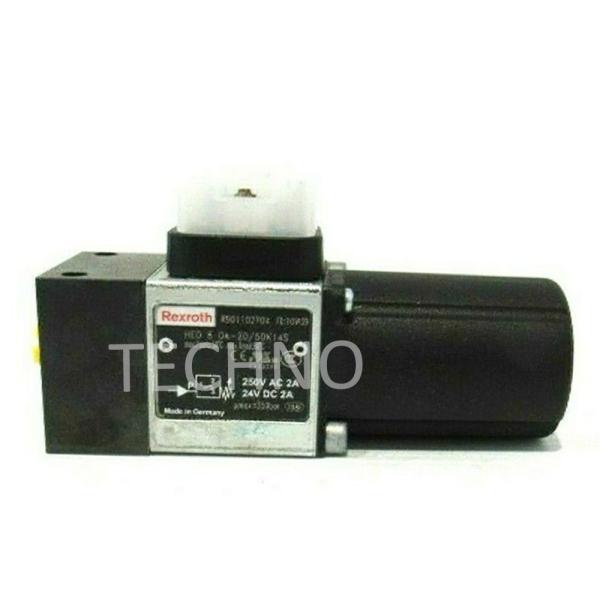

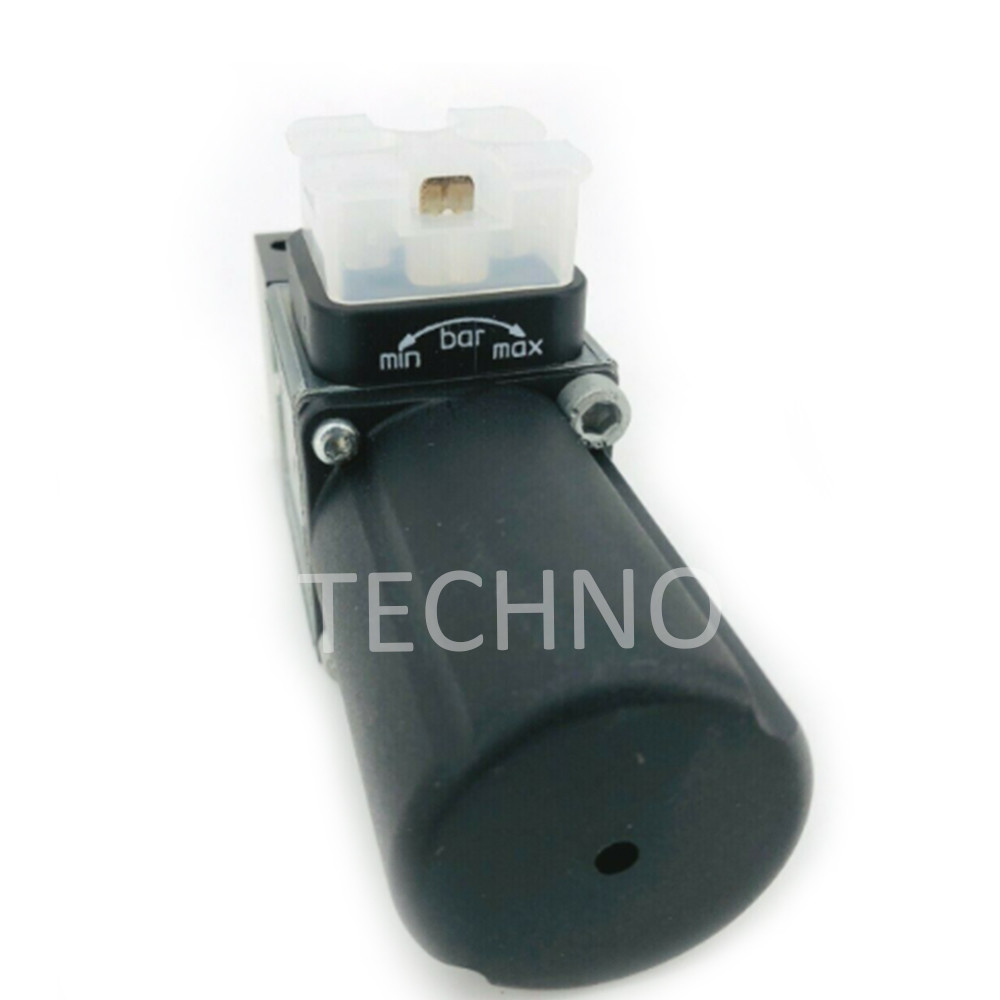

    Hydro-electric pressure switch type HED 8

    The hydro-electric pressure switch type HED 8 is a piston type pressure switch. It mainly consists of housing, installation kit with piston, compression spring, adjustment element and micro switch.

    When the pressure to be monitored meets the preset one, the micro switch will be operated. The pressure is applied on the piston via the nozzle. The piston is supported by the spring plate and the force of the compression spring can be continuously adjusted. The movement of the piston pushes the micro switch and triggers it when the preset pressure is reached. At this point, the electric circuit will switch on or off according to the system setup.

    In order to make the system more robust, the spring plate features a mechanical positive stop. It helps to protect the micro switch from mechanical damages caused by sudden pressure drop. Meanwhile, the overpressure will not lead to solid compression of the compression spring.

    Notice: To extend the service life of the switch, it should be mounted in low vibration condition and be protected from hydraulic pressure surges.


    Features:

    < p>For subplate mounting and pipeline installation, the valve block is designed according to ISO 16873 for flange connection and ISO 4401 as a vertical stacking element. With 5 pressure ratings, there are 4 adjustment types available: a spindle with/without protective cap; a spindle with scale, with/without protective cap; a rotary knob with scale; and a lockable rotary knob with scale. The electrical connection can be done either with a large cubic connector or an M12 x 1 connector. Additionally, it also includes a micro switch with NC/NO contact function and potential-free switching of currents from 1 mA to 2 A. It is approved by UL for pressure ranges up to 350 bar. < /p>



    Technical Parameters:

    ParametersValues
    Hydraulic Regulator-
    Load cycles≥5 Million
    Transition resistance<50 MΩ
    Hydraulic Valve-
    Maximum switching frequency7200 1/h
    Insulation coordinationOvervoltage Category 3
    Weight0.8 Kg
    Pressure Control Valve-
    Minimum current1.0 With 24 V DC MA
    Installation positionAny
    Viscosity range10 To 800 Mm²/s

    Rexroth HED8OA-2X/200 Hydraulic Directional Control Valve CE Certificate


    Applications:

    In the field of petroleum and chemical production, pressure relays can monitor pressure changes in containers and pipelines, timely trigger alarm devices or automatic control valves, and ensure the safety and stability of the production process.

    The pharmaceutical field also sees pressure relays as its savior. Here, pressure relays are responsible for real-time monitoring of the pressure of pharmaceutical equipment. In the event of abnormal pressure fluctuations, it can take quick measures such as closing valves and starting emergency pumps to prevent equipment damage and maintain drug quality.

    In the industry of food processing and packaging, pressure relays are also a great tool. It is used to monitor the pressure status of production equipment, thereby ensuring that products are produced and packaged under suitable pressure conditions, and improving production efficiency and product quality.


    Support and Services:

    Hydraulic Control Valve Technical Support and Service

    We offer comprehensive technical support and service for our Hydraulic Control Valve. Our knowledgeable customer service team is available to provide any assistance you may need and can answer any questions you may have.

    We offer a wide range of services, including installation, troubleshooting, and maintenance. Our technicians are highly trained and experienced in working with hydraulic control valves to ensure that your products are properly installed and maintained.

    We also offer an online support portal that allows our customers to easily submit service requests. Our customer service team will respond quickly and efficiently to all service requests.

    If you ever need help with a Hydraulic Control Valve, please do not hesitate to contact us. We are always here to help.


    Packing and Shipping:

    Packaging and Shipping for Hydraulic Control Valve:

    • The hydraulic control valve will be packaged in heavy-duty cardboard boxes to protect against damage during transport.
    • The boxes will be labeled with product information, including the part number and the shipping destination.
    • We will ship the hydraulic control valves via UPS, FedEx, or DHL, depending on the customer's preference.
    • We will always ensure that the hydraulic control valves are securely fastened to the pallet for transport.

    FAQ:

    Q1: What is the brand name of the Hydraulic Control Valve?

    A1: The brand name of the Hydraulic Control Valve is Rexroth.

    Q2: What is the model number of the Hydraulic Control Valve?

    A2: The model number of the Hydraulic Control Valve is HED8OH-2X/50.

    Q3: Where is the Hydraulic Control Valve made?

    A3: The Hydraulic Control Valve is made in China.

    Q4: Does the Hydraulic Control Valve have a CE certification?

    A4: Yes, the Hydraulic Control Valve has a CE certification.

    Q5: What is the minimum order quantity for the Hydraulic Control Valve?

    A5: The minimum order quantity for the Hydraulic Control Valve is 1.
