Product Description:
We provide load-sensing-systems for smaller working machines that
come in sizes 18, 28, and 35, with a nominal pressure of 250 bar
and a maximum pressure of 280 bar in an open circuit.
Features:

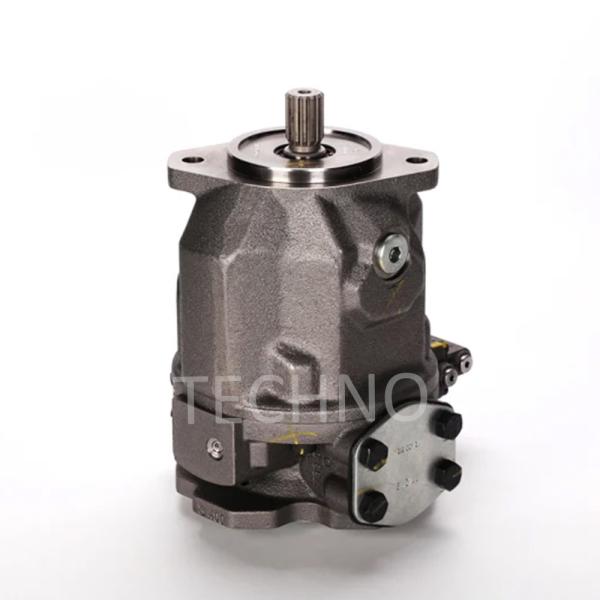

Variable pump with axial piston rotary group of swash plate design
for hydrostatic drives in open circuit has a lot of advantages.
Firstly, its flow is proportion to the drive speed and
displacement; and each flow can be infinitely varied by controlling
the swashplate angle. Compared to fixed systems, it has the fuel
savings of up to 15% with optimized efficiency, though same power
at less fuel consumption and increased service life.
Besides, it is of compact design by integrated controller, with a
wide range of highly adaptable control devices for all important
applications. In addition, it has the stepless flow variation by
adjusting the swashplate angle, low noise, high power density,
excellent suction characteristics, and high flexibility due to
interchangeable through drive adapter Applications.
Technical Parameters:
| Technical Data |
| Size | 35 |
| Nominal pressure | pN | bar (psi) | 250 (3600) |
| Peak pressure | pmax | bar (psi) | 280 (4000) |
| Displacement | Vg max | cm^3 (in^3 ) | 35 (2.1) |
| Speed | nmax | rpm | 3000 |
| Flow | at nmax | qV max | l/min(gpm) | 105 (27.7) |
| Power | Δp = 250 bar (3600 PSI) | Pmax | kW | 44 |
| Torque | Δp = 250 bar (3600 PSI) | Tmax | Nm (lb-ft) | 139 (102.5) |
| Weight (approx.) | m | kg (lbs) | 18.4 (40.6) |
Applications:
Hydraulic pumps are popularly used in diverse areas such as
machinery, engineering, shipbuilding, and agriculture. Its
versatility harmonizes and revolves around various mechanical
equipment, industrial equipment, and agricultural machinery.
Basically, the main role of a hydraulic pump is to transmit liquid
from one point to another. Furthermore, it is capable of changing
the pressure and flow of liquid into mechanical or electrical
energy.
Support and Services:
Piston Hydraulic Pumps Technical Support and Services
At , we are proud to provide technical support and services for our
piston hydraulic pumps. Our technicians are trained and certified
in the maintenance and repair of these pumps, and we’re available
24/7 to provide assistance when you need it.
Product Maintenance and Troubleshooting
We provide comprehensive maintenance and troubleshooting services
for our piston hydraulic pumps. Our technicians are experienced in
diagnosing and repairing any issues that may arise, and we can
provide timely and efficient repairs to ensure your pump is running
at its best.
Training and Certification
We offer training and certification for our technicians, so they
can remain up-to-date on the latest advances in piston hydraulic
pump technology. We also offer a range of courses for customers who
want to learn more about the pumps they own.
Spare Parts
We carry a wide range of spare parts for our piston hydraulic
pumps, so you can keep your pump running smoothly. Our parts are
sourced from trusted suppliers, and we can ship them directly to
you when you need them.
Warranty
All of our piston hydraulic pumps come with a standard warranty,
covering any defects in materials or workmanship. If you experience
any problems with your pump, our technicians are available to
repair or replace it, depending on the severity of the issue.
Packing and Shipping:
Piston Hydraulic Pumps will be packaged according to the customer's
specific requirements. They will be securely fastened to ensure no
damage will occur during shipping. All packages will be clearly
labeled with the correct shipping information.
The shipping method will depend on the size of the order and the
customer's requirements. Small orders will be shipped via a courier
service while larger orders will be shipped using a freight
carrier. All orders will be insured for the full value.
```
