Product Description:

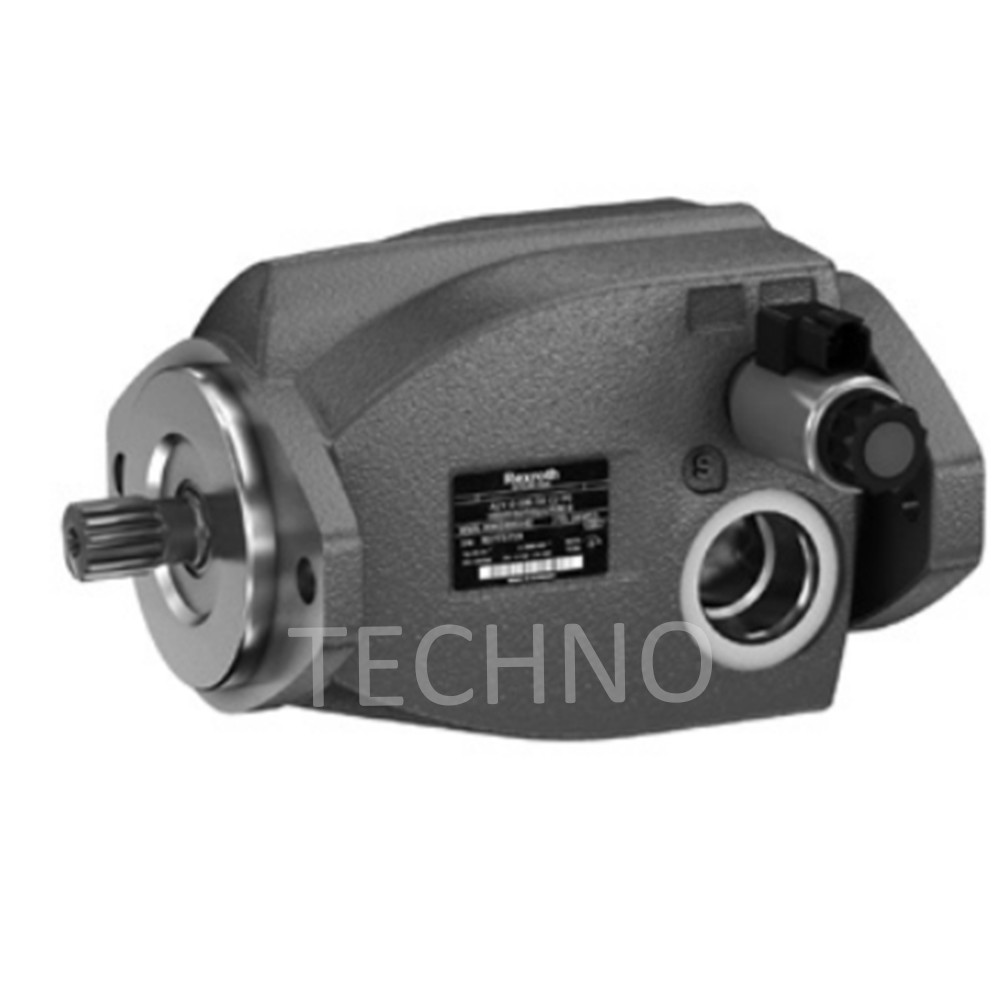

This load-sensing-system is designed for use in a range of smaller
working machines. The sizes available are 18, 28 and 35. The system
operates at a nominal pressure of 250 bar,while the maximum
pressure achievable is 280 bar. An open circuit system is used to
control the pressure.
Features:
Variable pump with axial piston rotary group of swash plate design
for hydrostatic drives in open circuit is significant in that it
offers up to 15% fuel savings compared to fixed systems while still
achieving equal power but with less fuel consumption. Its optimized
efficiency also leads to increased service life when compared to
gear pumps. Further, this pump features a compact design by
integrated controller and has a wide range of highly adaptable
control devices for various important applications.
Moreover, stepless flow variation is achieved by adjusting the
swashplate angle, and offers a number of other features such as low
noise, high power density, excellent suction characteristics and
high flexibility due to an interchangeable through drive adaptor.
It can be used in various applications such as construction
machines, industrial machines and agricultural machines.
Technical Parameters:
| Attribute | Value |
|---|
| Peak pressure | 280 (4000) |
| Displacement | 35 (2.1) |
| Description | A1VO035DRS0C200/10BLVB2S41A2S300 |
| Nominal pressure | 250 (3600) |
| Torque | 139 (102.5) |
| Speed | 3000 |
| Power | 44 |
| Flow | 105 (27.7) |
| Type | Hydraulic Piston-Powered Pumps, Piston-Actuated Hydraulic Pumps,
Piston-Driven Hydraulic Pumps |
Applications:
Hydraulic pumps have been widely used in numerous industrial
fields, such as machinery, engineering, shipbuilding, and
agriculture. These pumps are fitted to various mechanical
equipments,industrial equipments as well as agricultural
machineries for performing various essential functionalities.
The primary use of hydraulic pump is to transport liquid from one
part to another. Aside from that, this pump is also capable of
converting the pressure and flow of the liquid into mechanical or
electrical energy.
Support and Services:
Piston Hydraulic Pumps Technical Support and Service
We provide technical support and service for our piston hydraulic
pumps. Our experienced technicians will help you to install,
maintain, repair and troubleshoot any issue with our piston
hydraulic pumps.
Our technical support and service include:
- 24/7 customer support
- On-site installation and maintenance
- Parts replacement and repair
- Diagnostic and troubleshooting services
- Regular maintenance and inspection
If you have any questions or need help, don’t hesitate to contact
us. We are here to help you.
Packing and Shipping:
Piston Hydraulic Pumps are packaged in cardboard boxes and shipped
in wooden pallets. The boxes are designed to protect the pumps
during transport and handling. The pallets are designed to ensure
that the boxes are securely stacked during transport. All shipments
are insured and tracked for both customer and seller satisfaction.
