For those looking for load-sensing-systems for smaller working
machines, we offer multiple sizes: 18, 28, and 35. The nominal
pressure is set at 250 bar, and the maximum pressure is at 280 bar.
These load-sensing-systems are also open circuit.
Features:

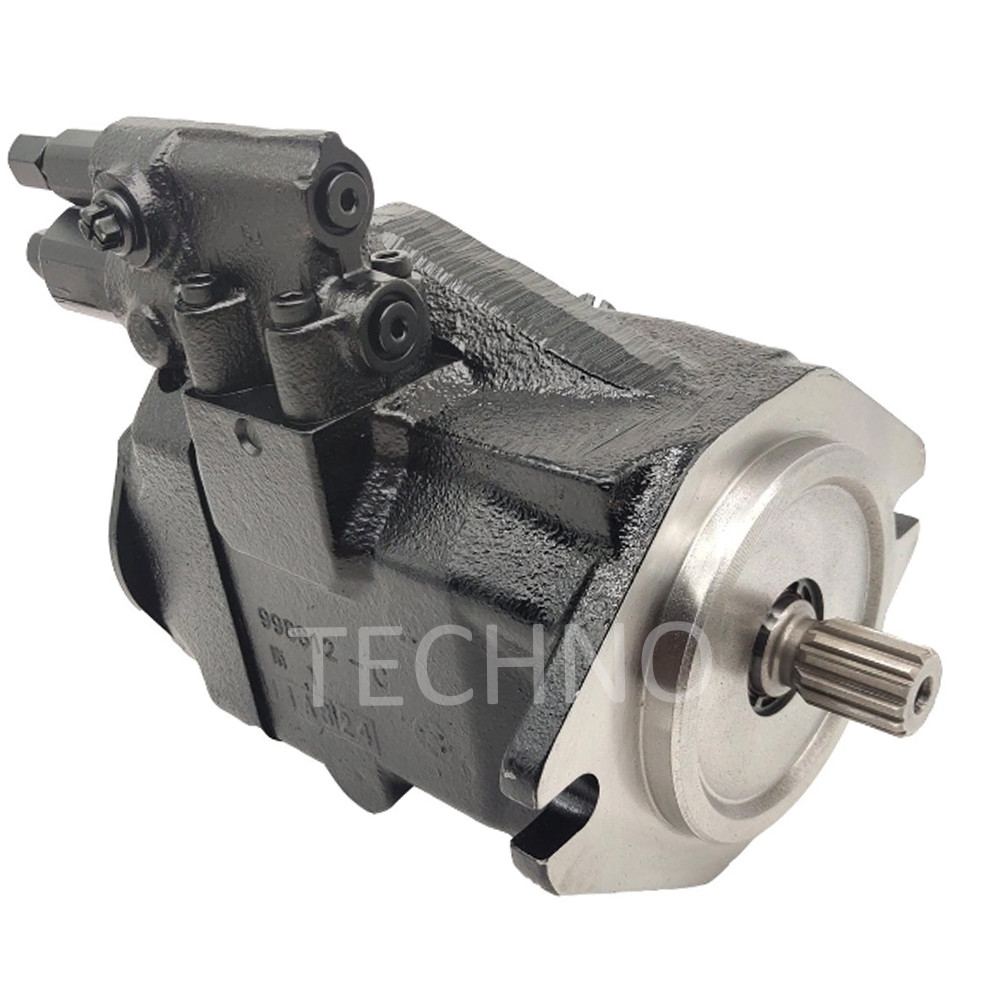

A variable pump with an axial piston rotary group of swashplate
design is effective for hydrostatic drives in an open circuit.
The flow produced by the said pump is proportional to the drive
speed and displacement and can be infinitely varied by controlling
the swashplate angle. It provides significant fuel savings of up to
15%, with optimized efficiency, though same power is achieved with
lesser fuel consumption, as compared to fixed systems.
Additionally, it also offers an extended service life than gear
pumps.
The pump has a compact design with an integrated controller and a
wide range of highly adaptable control devices for all important
applications. Stepless flow variation is accomplished by adjusting
the swashplate angle. It is known for its low noise, high power
density and excellent suction characteristics. Moreover, due to the
interchangeable through drive adapter, it offers high flexibility
to its users.
This pump has a variety of applications and can be used in
forestry, mining and agricultural machinery, energy, industrial and
construction machinery industries.
Technical Parameters:
| Technical Data |
| Size | 35 |
| Nominal pressure | pN | bar (psi) | 250 (3600) |
| Peak pressure | pmax | bar (psi) | 280 (4000) |
| Displacement | Vg max | cm^3 (in^3 ) | 35 (2.1) |
| Speed | nmax | rpm | 3000 |
| Flow | at nmax | qV max | l/min(gpm) | 105 (27.7) |
| Power | Δp = 250 bar (3600 PSI) | Pmax | kW | 44 |
| Torque | Δp = 250 bar (3600 PSI) | Tmax | Nm (lb-ft) | 139 (102.5) |
| Weight (approx.) | m | kg (lbs) | 18.4 (40.6) |
Applications:
Hydraulic pumps are used in many aspects of our everyday life. They
are employed in fields such as machinery engineering, shipbuilding
and agriculture, covering almost all types of mechanical and
industrial equipment, as well as agricultural machinery.
A hydraulic pump has numerous functions, but its primary use is to
move liquid from one location to another. Additionally, it is able
to convert the pressure and flow of a liquid to mechanical or
electrical energy.
Support and Services:
Piston Hydraulic Pumps Technical Support and Service
Our expert team of engineers and technicians are here to provide
you with the best technical support and service for your Piston
Hydraulic Pumps. We provide the most comprehensive technical advice
covering all aspects of the installation, operation, maintenance
and repair of your pumps.
We are here to help you with any questions or issues you may have
with your pumps. Our team can provide you with fast and reliable
response times and can provide troubleshooting and advice for your
pumps. We can also provide on-site service and repairs for your
pumps, when needed.
We have the experience and knowledge to make sure your pumps are
running at their optimal performance and efficiency. We are
dedicated to providing you with the highest quality customer
service and support.
Packing and Shipping:
Packaging and Shipping for Piston Hydraulic Pumps
Piston hydraulic pumps are professionally packaged and prepared for
safe shipping. Each pump is carefully inspected before being placed
in a sturdy box with adequate padding, then sealed for optimal
protection. The box is then shrink-wrapped to ensure that it
remains securely closed during transit.
All shipments are sent out via a reputable carrier and tracked
throughout the process. The carrier will contact the recipient to
confirm delivery. If the recipient is not available, the carrier
will leave a note with instructions on how to receive the package.
