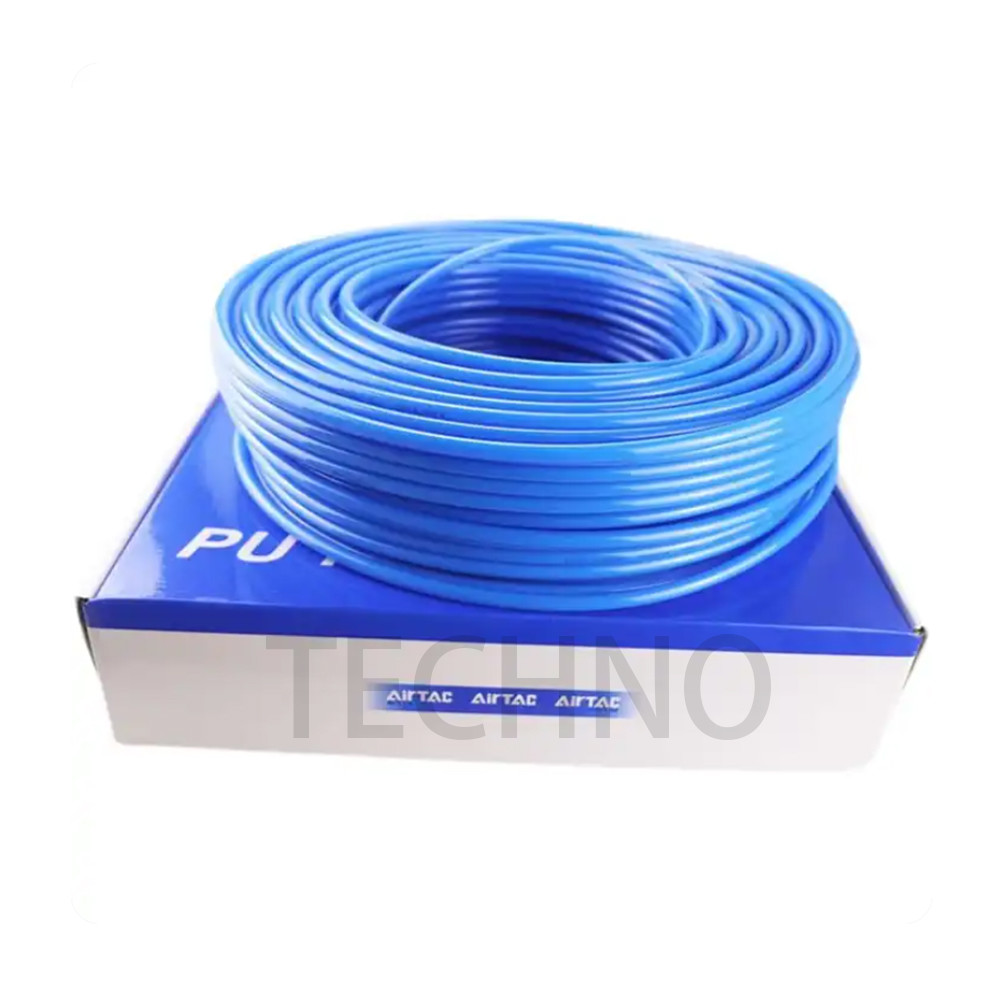

Air Tac US98A080055
PU Anti-Knot Tube High-Performance Durable Cost-Effective
Product Description:
Pneumatic PU Tube is made of high-quality plastic polyurethane
material, which is durable, anti-abrasion and light weight. The
surface of the tube is smooth and comes in different colors, such
as blue, black, orange and clear. As per the weight per 100 m, it
is only 3.25kg. The working medium of this tube is air, and it is
widely used in many areas, such as industrial, medical, automotive,
and engineering etc. Polyurethane material provides this tube with
superior flexibility and makes it an ideal choice for many
applications. This Pneumatic PU Tube is also highly resistant to
oil, chemical, and ozone, which makes it suitable for a wide range
of applications.
Features:
This product is made of plastic polyurethane material which is in
compliance with ROHS environmental protection standard. It also has
a high elasticity which allows the tube to be bent into tight
spaces and have an anti-knot effect that surpasses other plastic
tubes.
Furthermore, this product offers an excellent flexibility to bear
cyclic extension, with a low permeability of gas that keeps its
environment free from leakage and pollution. It also has a good
anti-solubility and a low compression, so it can maintain its
physical properties without any problems.
Finally, it is equipped with wide resistance to chemicals, water,
fuel, oil, and bacteria, proving this product's versatility in a
wide range of environments.
Technical Parameters:
| Parameters | Description |
|---|
| Color | Blue, black, orange and Clear |
| Working Medium | Air |
| Material | PU |
| Burst Pressure at 23℃ (bar) | 24 |
| Package Length (m) | 10000 |
| Tube ID (mm) | 5.5 |
| Tube OD (mm) | 8.0 |
| Weight Per 100 M (kg) | 3.25 |
| Temperature (℃) | -20~70 |
| Tube Surface | Smooth |
| Anti-abrasion | Yes |
| Anti-knot | Yes |
| Low permeability of gas | Yes |
Applications:
Hoses are widely used in the automation industries, such as:
automobiles, mechanical manufacturing, metallurgy, electronic
technology, light industry textiles, ceramics, medical devices,
food packaging, etc.
They are used in various conditions, too: acidic and alkaline
environments, chemicals, organic solvents, seawater, corrosive
gases, and other media. As well as being used for extended periods
in sunlight or heat.
However, hoses can be at risk of cracking, damage, and other
phenomena, so it is advised to avoid using them under such working
conditions as much as possible.
Support and Services:
Pneumatic PU Tube Technical Support and Service
Our company provides professional technical support and service for
Pneumatic PU Tube, including:
- Providing professional technical advice on product selection
- Providing technical service during product installation and
commissioning
- Providing after-sales technical support and maintenance
- Providing spare parts and consumables for product maintenance
- Providing quality assurance services for product quality
Packing and Shipping:
Packaging and Shipping for Pneumatic PU Tube
Our Pneumatic PU Tube is packaged carefully to ensure its safe
delivery to the customer. We use high-grade cardboard material for
each package, and each individual tube is then wrapped in bubble
wrap for added protection. Our boxes are also labeled with the
customer's address and the contents to ensure efficient delivery.
We offer both domestic and international shipping options. Domestic
orders are sent via UPS or FedEx and usually arrive within 3-5
business days. International orders are sent via DHL Express and
typically arrive within 5-7 business days.
FAQ:
- Q: What is the Brand Name for Pneumatic PU Tube?
- A: The Brand Name is Air Tac.
- Q: What is the Model Number for Pneumatic PU Tube?
- A: The Model Number is US98A080055.
- Q: Where is Pneumatic PU Tube made?
- A: Pneumatic PU Tube is made in China.
- Q: Is Pneumatic PU Tube certified?
- A: Yes, Pneumatic PU Tube is certified by CE.
- Q: How many pieces can be supplied for Pneumatic PU Tube?
- A: Pneumatic PU Tube can be supplied up to 5000 pieces per 1 Month.
