Air Tac US98A100065
Small Bend Radius Air Hose 5.44kg Weight Per 100M
Product Description:

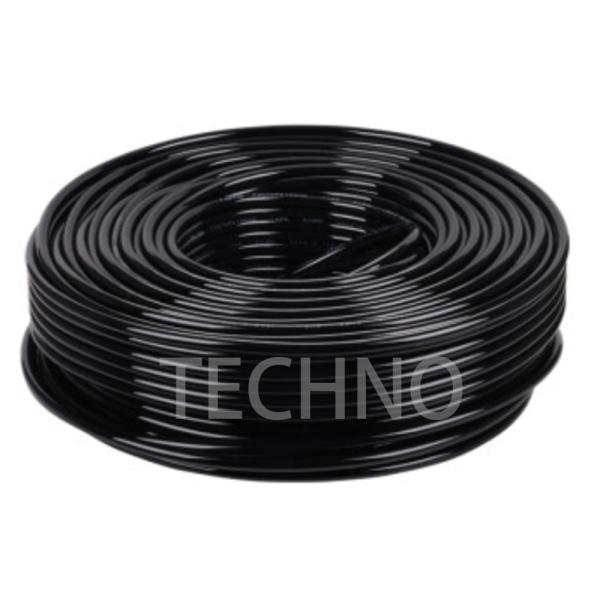

Pneumatic PU Tube is an excellent solution to your air-conducting
needs. It is made of a flexible Polyurethane material and plastic
polyurethane, ensuring excellent performance and durability. This
product has a wide variety of colors, including blue, black, orange
and clear. It is also available in a variety of lengths, with a
tube OD of 10mm, and a temperature range of -20℃ to 70℃. This
product offers superior flexibility and performance, making it
ideal for many applications. It is a cost-effective solution that
is designed to provide reliable results for a long period of time.
Features:
This plastic-polyurethane material conforms to the ROHS
environmental protection requirements.
It is characterized by high elasticity, a small bend radius that
enables it to pass through tight spaces.
In addition, it provides better anti-knot effect than other plastic
tubes, and excellent flexibility easily standing up to repeated
expansions.
Other features include: anti-abrasion, a long working life suitable
for environments easily worn; low permeability of gas reducing any
leakage or pollution; and good anti-solubility to avoid any solvent
leakage.
Low compression allows it to maintain excellent physical
characteristics while its wide resistance provides it with a
certain amount of resistance to chemicals, water, fuel, oil and
bacteria.
Technical Parameters:
| Number ① | Tube OD (mm) | Tube ID (mm) | Wall Thiknes (mm) | Package Length (m) | Working Pressure At 23℃ (bar)② | Burst Pressure At 23℃(bar) | Bend Radius (mm) | Weight Per 100 M (kg) | Temperature (℃) |
| US98A040025□□ | 4.0 | 2.5 | 0.75 | 200 | 8.0 | 35 | 10 | 0.94 | |
| US98A060040□□ | 6.0 | 4.0 | 1.00 | 200 | 7.5 | 30 | 15 | 1.93 | |
| US98A080050□□ | 8.0 | 5.0 | 1.50 | 100 | 8.0 | 35 | 20 | 3.66 | |
| US98A080055□□ | 8.0 | 5.5 | 125 | 100 | 6.0 | 24 | 20 | 3.25 | |
| US98A080060□□ | 8.0 | 6.0 | 1.00 | 100 | 4.0 | 16 | 25 | 2.70 | -20~70 |
| US98A100065□□ | 10.0 | 6.5 | 1.75 | 100 | 8.0 | 32 | 25 | 5.44 |
| US98A100080□□ | 10.0 | 8.0 | 1.00 | 100 | 2.5 | 10 | 40 | 3.47 | |
| US98A120080□□ | 12.0 | 8.0 | 2.00 | 100 | 7.5 | 30 | 35 | 7.56 | |
| US98A120100□□ | 12.0 | 10.0 | 1.00 | 100 | 2.0 | 8 | 60 | 4.24 | |
| US98A160120□□ | 16.0 | 12.0 | 2.00 | 100 | 7.5 | 30 | 80 | 8.32 | |
Note:

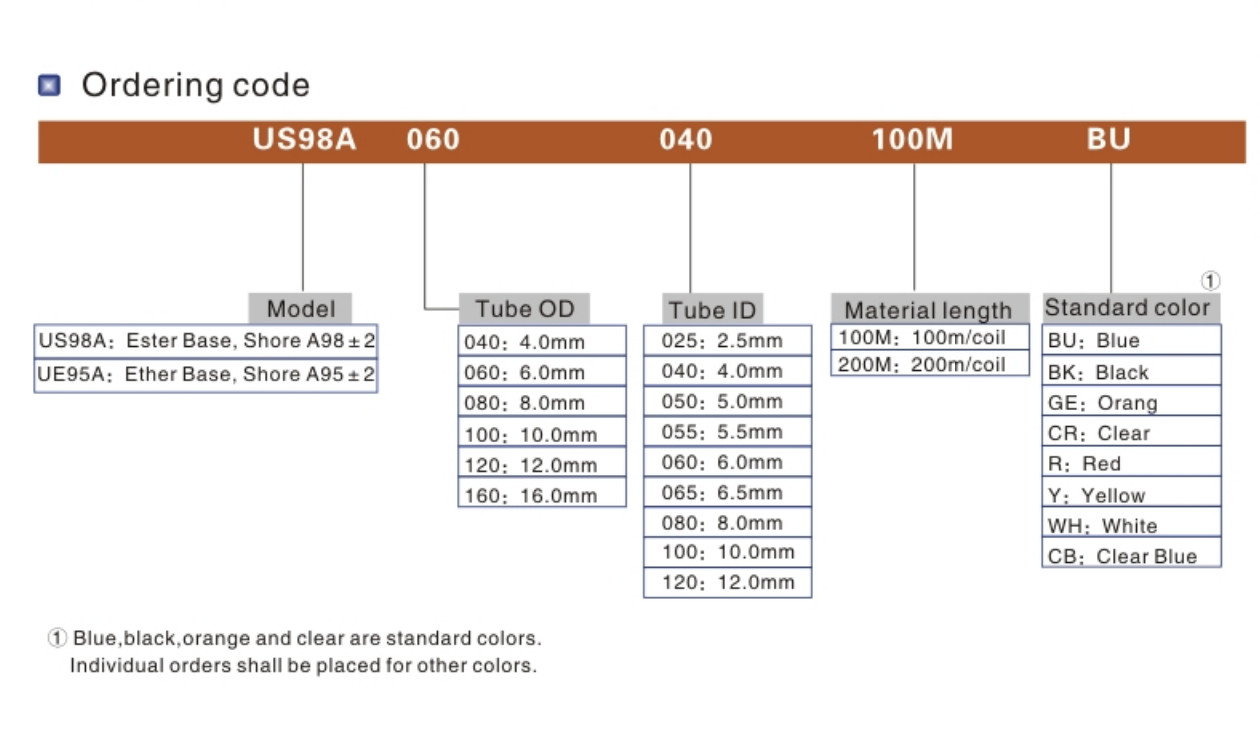

①: The first square of “□□”in the type column is for ordering code
"unit" and the second is for "color'. Blue,black,orange
and clear are standardd colors. Individual orders shall be placed
for other colors.
② : Working pressure:3to 1 safety factor.
Applications:
Hoses are widely used in automation industries such as automobiles,
mechanical manufacturing, metallurgy, electronic technology, light
industry textiles, ceramics, medical devices, food packaging, etc.
However, special attention should be paid to their application in
acidic and alkaline environments, chemicals, organic solvents,
seawater, corrosive gases, and other media, as well as under
prolonged exposure to sunlight or heat. In such cases, hoses are
prone to cracking, damage and other phenomena. Therefore, it is
best to try to avoid using hoses under such working conditions as
much as possible.
Support and Services:
Pneumatic PU Tube technical support and service include:
- 24/7 technical support
- Free product consultation
- On-site installation and maintenance
- Replacement and spare parts supply
- Periodic product check and repair
- Remote technical assistance
- Recurring training and education
Packing and Shipping:
Pneumatic PU Tube Packaging and Shipping:
- The Pneumatic PU Tube is securely packaged in a box for protection
during shipment.
- The box is then sealed and secured with tape.
- The box is then placed in a larger cardboard box for shipping.
- The cardboard box is sealed and labeled with the appropriate
shipping information.
- The package is then sent to the customer via a reputable shipping
carrier.
FAQ:
- Q1: What is Pneumatic PU Tube?
- A1: Pneumatic PU Tube, also known as Polyurethane Tube, is a
flexible tubing that are typically made of thermoplastic
polyurethane that is used in a variety of applications, such as in
air lines, vacuum lines, and fluid lines.
- Q2:What is the Brand Name of this Pneumatic PU Tube?
- A2: The Brand Name of this Pneumatic PU Tube is Air Tac.
- Q3: What is the Model Number of this Pneumatic PU Tube?
- A3: The Model Number of this Pneumatic PU Tube is US98A100065.
- Q4: Where is this Pneumatic PU Tube from?
- A4: This Pneumatic PU Tube is from China.
- Q5: Does this Pneumatic PU Tube have a Certification?
- A5: Yes, this Pneumatic PU Tube has a CE Certification.
