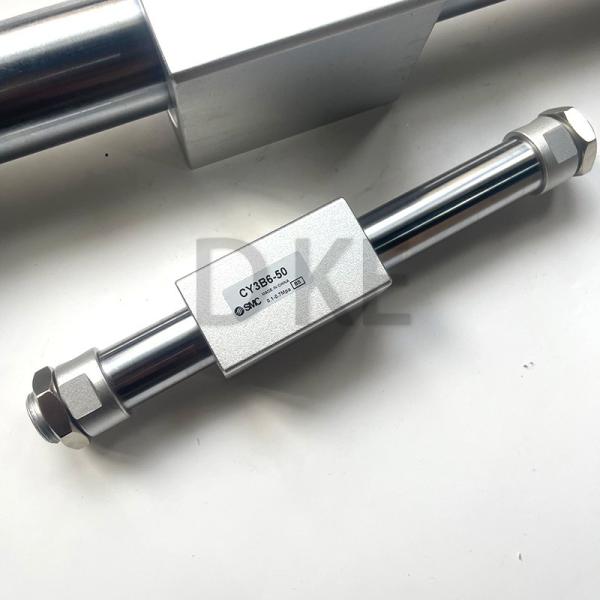

SMC Pneumatic Cylinder CY3B6-50
Stroke 50mm Bore 6mm Stable operation
Product Description:
The SMC Rodless Cylinder uses industrial strength magnets located
in the piston and external carriage to form a single unit, which
will travel when actuated with air pressure. Through re-designing
of the body and head cover shapes, along with the use of magnetic
coupling, the product weight has been greatly reduced.
Additionally, it has no external leakage, making it well-suited for
use in a variety of environments.
The item has a wide range of applications, and is able to save
mounting space thanks to its magnetically coupled design.
Furthermore, it allows for loads and moments to be achieved through
integrated guides, with a variety of guides available to help reach
the desired accuracy or allowable moment.
What's more, CY is available in 9 bore sizes, from 6mm to 63mm,
with standard stokes up to 1000mm. The 5 different model variations
offer the greatest application choice and auto switches are
integrated as standard. It is sure to meet any requirements upon
purchase!
Technical Parameters:
| Specifications |
| Bore size [mm] | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Air |
| Proof pressure | 1.05 MPa |
| Max. operating pressure∗1 | 0.7 MPa |
| Min. operating pressure | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.14 | 0.12 | 0.12 | 0.12 |
| Ambient and fluid temperatures | −10 to 60°C (No freezing) |
| Piston speed | 50 to 500 mm/s |
| Cushion | Rubber bumper |
| Lubrication | Not required (Non-lube) |
| Mounting orientation | Horizontal, Inclined, Vertical |
| Mounting nut (2 pcs.) | Standard equipment (Accessory) |
| Magnet holding force [N] | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | 1471 | 2256 |
| Stop with Air Pressure Circuit |
Bore size
[mm] | Model | Allowable kinetic energy for
intermediate stop (Es) [J] |
| 6 | CY3B6 | 0.007 |
| 10 | CY3B10 | 0.03 |
| 15 | CY3B15 | 0.13 |
| 20 | CY3B20 | 0.24 |
| 25 | CY3B25 | 0.45 |
| 32 | CY3B32 | 0.88 |
| 40 | CY3B40 | 1.53 |
| 50 | CY3B50 | 3.12 |
| 63 | CY3B63 | 5.07 |
