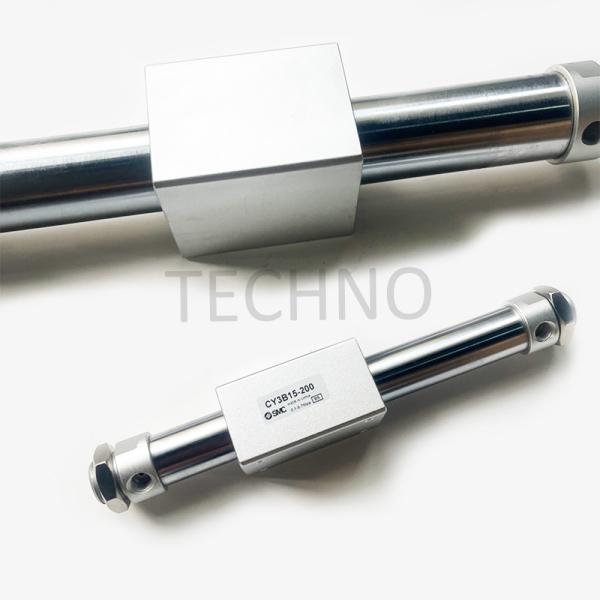

The SMC rod less cylinder is a revolutionary product that harnesses
the power of industrial strength magnets to form a single unit that
can travel when actuated with air pressure. To reduce the product
weight, SMC has gone to great lengths to re-design the body and
head cover shapes, making use of the magnetic coupling feature.
The SMC CY series provides many benefits that make it suitable for
a wide range of application settings. As the product does not
suffer from external leakage effects, it can be used in various
environments. Besides that, these cylinders can save mounting space
and offer load capacity as well as moment capabilities via the use
of integrated guides, which are available in five different model
variations. Also, these cylinders are available in nine different
bore sizes ranging from 6mm to 63mm with a standard stroke up to
1000mm. For extra convenience, auto switches are included as as
standard feature.
Applications:
Different industries have different needs when it comes to their
production. To meet this varied demand, the following industries
are applicable:
Hotels, Garment Shops, Building Material Shops, Manufacturing
Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurants, Home Use, Retail, Food Shop, Printing Shops,
Construction Works, Energy & Mining, Food & Beverage Shops,
Advertising Companies, and Other.
All of these industries are able to benefit from the production
solutions our company has to offer.
Technical Parameters:
| Model | W | X | Y | ZZ | P (Piping port) |
| Nil | TN | TF |
| CY3B6 | 25 | 10 | — | 78 | M3 x 0.5 | — | — |
| CY3B10 | 30 | 16 | — | 81 | M5 x 0.8 | — | — |
| CY3B15 | 35 | 19 | — | 103 | M5 x 0.8 | — | — |
| CY3B20 | 50 | 25 | — | 132 | Rc1/8 | NPT1/8 | G1/8 |
| CY3B25 | 50 | 30 | — | 137 | Rc1/8 | NPT1/8 | G1/8 |
| CY3B32 | 50 | 40 | — | 156 | Rc1/8 | NPT1/8 | G1/8 |
| CY3B40 | 60 | 40 | — | 182 | Rc1/4 | NPT1/4 | G1/4 |
| CY3B50 | 60 | 60 | 16 | 180 | Rc1/4 | NPT1/4 | G1/4 |
| CY3B63 | 70 | 70 | 16 | 192 | Rc1/4 | NPT1/4 | G1/4 |
