The SMC rod less cylinder is an innovative design utilizing
industrial strength magnets located in the piston and external
carriage to form a single unit that moves when actuated with air
pressure. In addition, the product's weight has been minimized
through the creative re-design of the body and head cover shapes
and magnetic coupling. In addition, since external leakage is not
an issue, the CY series can be used in a wide variety of
environments.
Moreover, these magnetically coupled cylinders have a number of
distinct advantages that can be used in the user's favor.
Specifically, these cylinders are able to save space due to their
efficient design as well as enabling the user to preform a number
of different loads and moments through the integrated guides. In
addition, CY series provided the user with a range of 9 different
bore sizes, from 6mm to 63mm, with standard stroke up to 1000 mm
and 5 different model variations to fit all of the user's needs. As
a standard, the series is self-equipped with auto switches.
Applications:
Hotels, Garment Shops, Building Material Shops and Manufacturing
Plants are all industries that this product can be applied to.
Furthermore, it can be used for Machinery Repair Shops, Food &
Beverage Factories and Farms. In addition, Restaurant, Home Use,
Retail, Food Shop and Printing Shops can also make use of this
product. Lastly, it is applicable in Construction works, Energy &
Mining, Food & Beverage Shops and Advertising Companies.
Technical Parameters:
| Specifications |
| Bore size [mm] | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Air |
| Proof pressure | 1.05 MPa |
| Max. operating pressure∗1 | 0.7 MPa |
| Min. operating pressure | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.14 | 0.12 | 0.12 | 0.12 |
| Ambient and fluid temperatures | −10 to 60°C (No freezing) |
| Piston speed | 50 to 500 mm/s |
| Cushion | Rubber bumper |
| Lubrication | Not required (Non-lube) |
| Mounting orientation | Horizontal, Inclined, Vertical |
| Mounting nut (2 pcs.) | Standard equipment (Accessory) |
| Magnet holding force [N] | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | 1471 | 2256 |
Bore size
[mm] | Standard stroke
[mm] | Manufacturable stroke
[mm] |
| 6 | 50, 100, 150, 200 | 20 to 300 |
| 10 | 50, 100, 150, 200, 250, 300 | 20 to 500 |
| 15 | 50, 100, 150, 200, 250, 300, 350,
400, 450, 500 | 20 to 1000 |
| 20 | 100, 150, 200, 250, 300, 350, 400,
450, 500, 600, 700, 800 | 25 to 1500 |
| 25 | 25 to 3000 |
| 32 |
| 40 | 100, 150, 200, 250, 300, 350, 400,
450, 500, 600, 700, 800, 900, 1000 | 25 to 3000 |
| 50 | 40 to 5000 |
| 63 |
Support and Services:
Piston Pneumatic Cylinder Technical Support and Services
We provide technical support and services for piston pneumatic
cylinders to ensure customers receive the best performance and
value from their products. Our technical team is available to
answer any questions about cylinder installation, operation, and
maintenance. We also provide troubleshooting, troubleshooting
guides, and preventive maintenance guides to help customers
maintain their cylinders in optimal condition.
We offer a wide range of services to meet the needs of our
customers, including:
- Installation and commissioning services
- Cylinder maintenance and repair
- Troubleshooting and diagnostics
- On-site service and support
- Spare parts and accessories
- Application engineering and design assistance
We pride ourselves on offering excellent customer service and
technical support. If you have any questions or concerns, please
don’t hesitate to contact us.
Packing and Shipping:
Packaging and Shipping of Piston Pneumatic Cylinder:
The piston pneumatic cylinder is packaged in a cardboard box, with
the product placed in a foam insert. The box is then sealed with
tape to ensure it is secure. The product is then shipped out via a
courier service, with tracking information provided to the
customer.
FAQ:
Q1: What is the brand name of the Piston Pneumatic Cylinder ?
A1: The brand name of the Piston Pneumatic Cylinder is SMC.
Q2: What is the model number of the Piston Pneumatic Cylinder ?

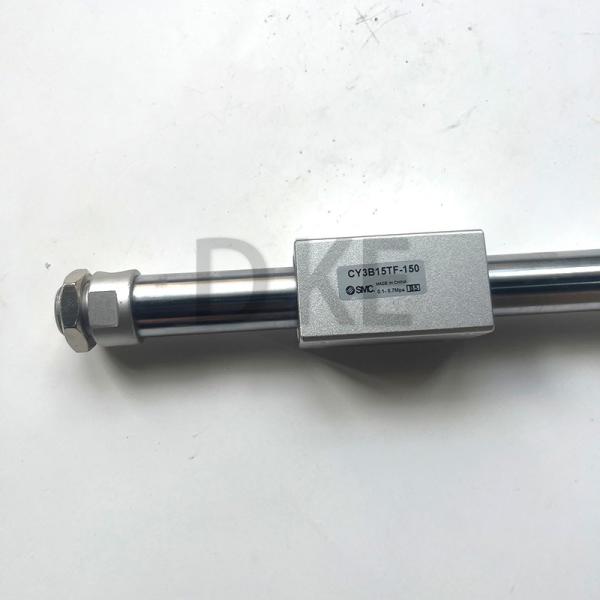

A2: The model number of the Piston Pneumatic Cylinder is
