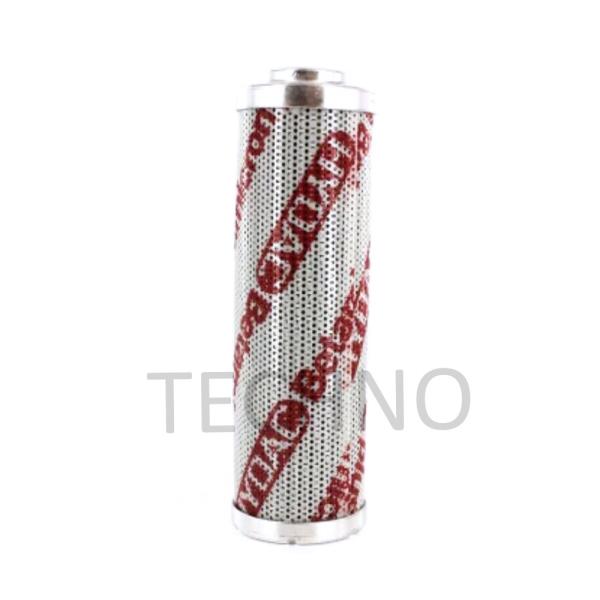

HYDAC Cartridge Filter 0055-D-010-V
Metal Fibre -30~100℃ Corrosion Protection
Product Description:
Precision Filter Elements are engineered to meet the highest
standards for filtration performance, offering a wide range of
pressure difference and pressure ranges. These filter elements are
constructed with a 20μm filter rating, Wire Mesh filter element
media, and stainless steel material for superior filtration
performance. With its high precision design, Precision Filter
Components are capable of handling a wide range of applications,
from 30~200 Bar, making them ideal for a variety of industrial
filtration needs. High Precision Filter Elements are designed to
provide superior filtration performance with a Wire Mesh Filter
Element, making them an ideal choice for industries that require
reliable, precise filtration solutions.
Features:
HYDAC Filter Elements are designed to protect vital and expensive
hydraulic components from any harm that could be caused by dust,
impurities and other particles present in fluids. The top-notch
quality of these elements stands above the rest.
HYDAC Filter Elements are best suited for filtration of mineral
oils, non-flam fluids, and rapidly biodegradable fluids. These are
available in disposable elements and cleanable elements, making it
easier to cater to different requirements. The key features of
these elements are: High contamination retention capacity,Supreme adsorption of finest
particles over a wide differential pressure range,Remarkably
consistent beta value stability over a wide differential pressure
range,Good fluid compatibility due to the use of epoxy resins for
impregnation and bonding,Element protection due to high collapse
burst pressure resistance (during cold start and differential
pressure surges),Exceptional flow fatigue stability due to solid
filter material supports,The filtration ratings of HYDAC Filter Elements are 3µm, 5µm, 10µm,
and 20µm absolute.
Technical Parameters:
| Approx. filter surface area (cm²) |
| Size | V | W | W/HC |
| 30 | 268 | 256 | – |
| 60 | 318 | 330 | 418 |
| 110 | 648 | 672 | 910 |
| 140 | 852 | 884 | 1200 |
| 160 | 1082 | 857 | 1144 |
| 240 | 1702 | 1348 | 1911 |
| 280 | 3615 | 2862 | 4264 |
| 330 | 2260 | 1795 | 3133 |
| 500 | 3640 | 2891 | 5207 |
| 660 | 4770 | 3795 | 6958 |
| 990 | – | – | 10091 |
| 1320 | – | – | 13916 |
Applications:
Our filters can be used with a variety of different hydraulic media
such as mineral oils, lubrication oils, non-flam fluids, synthetic,
and rapidly biodegradable oils.However, for any use involving water, please contact our technical
sales department for compatibility advice. Our filter material supports on both sides, as well as its high
inherent stability, make our filters resistant to flow fatigue,
meeting even the highest standards set by ISO 3724.
Customization:
- Brand Name: HYDAC
- Model Number: 0030-D-003-BH3HC
- Place of Origin: China
- Certification: CE
- Minimum Order Quantity: 1
- Price: Negotiation
- Packaging Details: Carton /As The Clients Require
- Delivery Time: 1-7Work Days After Payment
- Payment Terms: T/T, Western Union,Paypal
- Supply Ability: 5000PCs per month
- Filter Element End Cap: Clip-on
- Filter Element Length: Multiple Lengths
- Filter Element Core: Metal Fibre
- Filter Element Diameter: 55mm
- Pressure Rating: 0.6MPa
We provide custom-made Precision Filter Assembly, High Accuracy
Filter and Precision Filter Elementry with superior quality and
competitive price.
FAQ:
Q: Could you add our logo on your products?
A: Yes, if your quantity more than 50pcs. we could add your logo on
the products.
Q: Do you provide samples ?
A:Yes, we could offer the sample for free charge, but do not pay the
cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T
in advance ,balance before shipment. Payment ways are : T/T,
Western Union, Paypal Alipay.
Q:Can we buy 1 piece for quality testing?
A:Yes, no problem.
