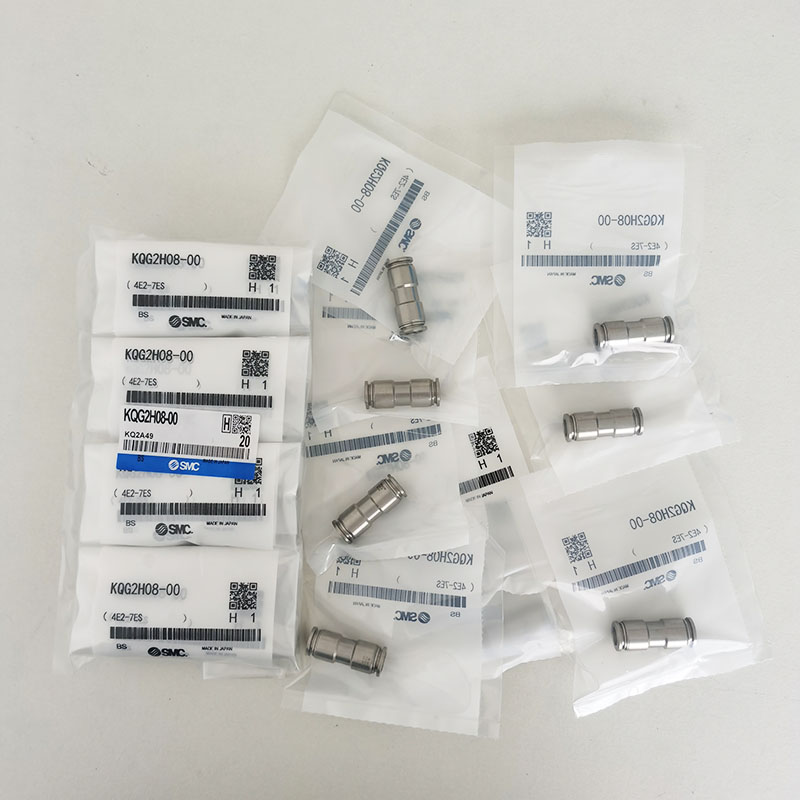

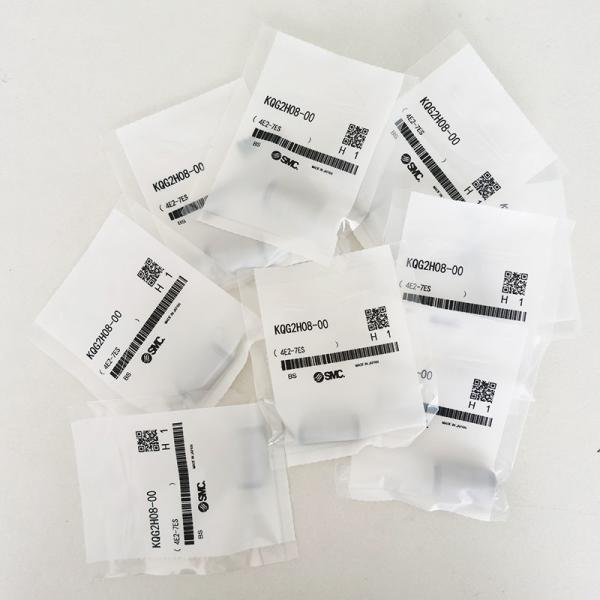

SMC KQG2H08-00

Temperature -5~150℃ Power Industry SS316

SMC Joints KQG2H08-00 Temperature -5~150℃ Power Industry SS316

Product Description:

SMC's KQG2 stainless steel range offers engineers a choice of superior-performance, lightweight, and compact fittings. The fittings are 30% smaller and 62% lighter than SMC's existing KQG range, and they are available to fit tubing diameters from 3.2 to 16mm. They are ideal for operations that require resistance to corrosion, chemicals, and high-temperatures.

The fittings are useful for compressed air, water, and steam operations, and they are designed to function in a broad range of pressure (from -100kPa to 1MPa) and temperature (-5°C to +150°C). The fittings are manufactured from SUS316 stainless steel, which is highest grade of stainless steel available and provides better corrosion and chemical resistance properties than 304 stainless steel. It is particularly suitable for chloride-rich environments.

Features:

This small and light weight product has a great impact on production operation: Its dimensions are about 30% shorter than KQGL06-01S and 62% lighter in weight.

Material of this product are made of Metal parts, Stainless Steel 316, seal parts, special FKM. Its tubing material is applicable to FEP, PFA, Nylon, Soft nylon, Polyurethane and Polyolefin. Also, this product has a wide range of temperature performance, from -5 to 150°C, and moreover, it is grease-free and applicable to steam.

Applicable Tubing: Metric Size, Connection Thread: M, R, RC

Note 1) For soft nylon tubing, water cannot be used.

Note 2) Consult with SMC regarding applicable tube separately.

Note 3) Avoid using in a vacuum holding application such as a leak tester, since there is leakage.

Note 4) Check the operating pressure range and operating temperature range of the tubing.

Note 5) It is recommended that you use the inner sleeve in the following conditions (Except Ø3.2):

●When using at a high temperature.

●When using at a high temperature.

Component Parts:

FAQ:

Q: Where is your factory ? Can we visit your factory?

A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome cu

stomers to visit our company and factory.

Q: What is your payment term and payment way?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment

ways are : T/T, Western Union, Paypal, Alipay.

Q:What’s the shipping way?

A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 ye

ars,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. W

e will send you the tracking number once we got it.

For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will

find the most cost-effective one for you.

YW DKE TRADING COMPANY integrates industrial manufacturing and exporting, mainly specialized in carious kinds of pneumatic fittings, including Joints/ connectors, Hydraulic Components, Solenoid Valve& etc., covered SMC type, Rexroth Type and Parker Type. Tell us the list you need then we are going to offer you the right thing with better price.

We adhere to high starting point, high quality, high level of "three high" strategy and excellent management system, which help us to develop steadily. With good quality, better price and on-time delivery, Yufeng gained praise in both domestic and international market. We also gained the super star company by our government and clients.

For the furture, DKE will never stop to pursue innovation and refinement as to create values for customers and the society at large, and strives to make it into a world-famous enterprise with model.
