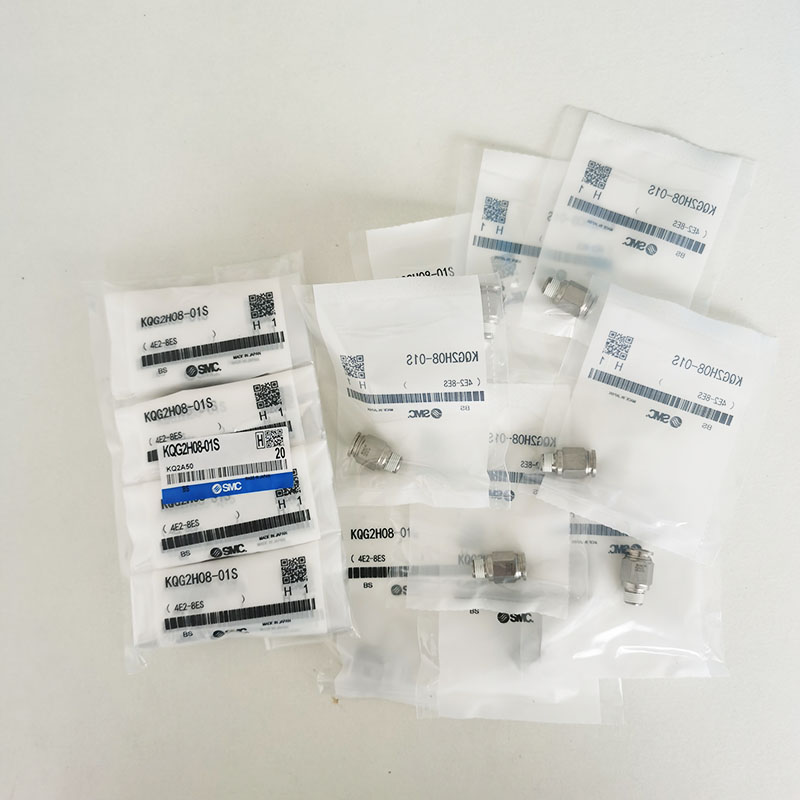

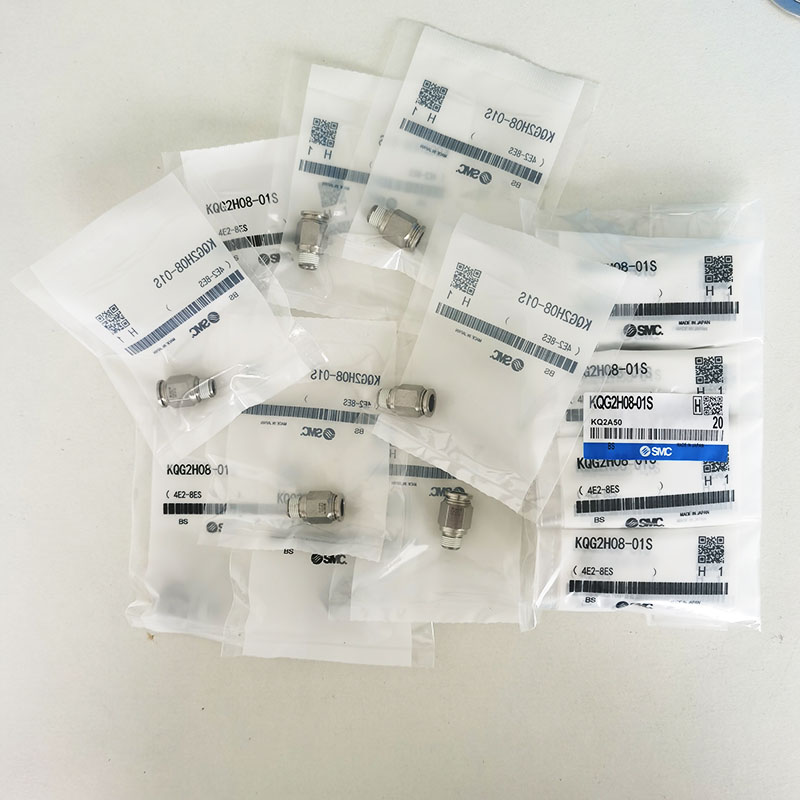

SMC KQG2H08-01S
SUS316 0-1mpa 1/8 Aerospace Industry
Product Description:
SMC KQG2 series one-touch pneumatic fittings offer consumers a
wealth of benefit. These fittings are 30% smaller and 62% lighter
than the existing KQG range and compatible with a wide range of
tubing diameters from 3.2 to 16mm. Their lightweight and compact
design allows them to be used in various environments — from
compressed air and water to steam — while their performance in
diverse pressure and temperature conditions (-100kPa to 1MPa and
-5°C to +150°C respectively) is ideal. What's more, these fittings
are made of SUS316 stainless steel, offering superior corrosion
resistant properties compared to the grade 304 stainless steel.
Such properties make them particularly suitable for chloride
environments.In conclusion, SMC KQG2 series one-touch pneumatic
fittings are designed for engineers who need a reliable fitting in
corrosive and high-temperature settings. They boast features such
as lightweight and compact design, wide range of tubing diameters
and superior corrosion-resistant properties for low-maintenance.
Features:
The KQGL06-01S is compact and light, featuring dimensions approx.
30% shorter and an approx. 62% lighter weight in comparison with
other models. Its metal parts are made of stainless steel 316,
while its seal parts are made of special FKM. It can be used with
various tubing materials, including FEP, PFA, Nylon, Soft Nylon,
Polyurethane and Polyolefin, and supports fluid temperature from -5
to 150°C. Moreover, it is grease-free and can be used with steam.
Applicable Tubing:
| Applicable Tubing | Applicable Tubing | FEP, PFA, Nylon, Soft nylon Note 1), Polyurethane, Polyolefin |
| Tubing 0.D. | Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 |
| Specifications | Fluid Note 3) | Air, Water, Steam Note 2) |
| Operating pressure range | -100 kPa to 1 MPa Note 4) |
| Proof pressure | 3.0 MPa |
| Ambient and fluid temperature Note 5) | - 5 to 150°C (No freezing) Note 4) |
| Lubricant | Grease-free specification |
| Seal on the threads | With sealant |
Temperature
Condition of Mounting
the Inner Sleeve | Tubing | Temperature |
| FEP tubing/TH Series | 80°C or more |
| Super PFA tubing/TL Series | 120°C or more |
| |
Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak
tester, since there is leakage.
Note 4) Check the operating pressure range and operating
temperature range of the tubing.
Note 5) It is recommended that you use the inner sleeve in the
following conditions (Except Ø3.2):
●When using at a high temperature.
●When using at a high temperature.
Male Connector: KQG2H |
Applicable
tubing O.D
(mm) | Connection
thread
R, M | Model | H
(Width
across flat) | Note 1)
ØD | L | A* | M | Note 2)
Efective
area (mm²) | Weight |
| ø3.2 | M5 x 0.8 | KQG2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.3 |
| 1/8 | KQG2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 5.7 |
| 1/4 | KQG2H23-02S | 14 | 21 | 16.3 | 16.9 |
| ø4 | M5 x 0.8 | KQG2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5 |
| 1/8 | KQG2H04-01S | 15.3 | 12.2 | 5.6 | 4.7 |
| 1/4 | KQG2H04-02S | 14 | 20.9 | 16.2 | 15.8 |
| ø6 | M5 x 0.8 | KQG2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 7.7 |
| 1/8 | KQG2H06-01S | 18.1 | 15 | 13.1 | 7 |
| 1/4 | KQG2H06-02S | 14 | 20.8 | 16.1 | 14.5 |
| 3/8 | KQG2H06-03S | 17 | 23 | 17.9 | 27.3 |
| ø8 | 1/8 | KQG2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 16.1 | 26.1 | 12.8 |
| 1/4 | KQG2H08-02S | 22.3 | 17.6 | 12.9 |
| 3/8 | KQG2H08-03S | 17 | 23.7 | 18.6 | 24.7 |
| ø10 | 1/8 | KQG2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 18.9 |
| 1/4 | KQG2H10-02S | 27.9 | 23.2 | 41.5 | 21.6 |
| 3/8 | KQG2H10-03S | 23 | 17.9 | 20.6 |
| 1/2 | KQG2H10-04S | 22 | 28.6 | 22.2 | 51.1 |
| ø12 | 1/4 | KQG2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 27.4 |
| 3/8 | KQG2H12-03S | 24.7 | 19.6 | 20.5 |
| 1/2 | KQG2H12-04S | 22 | 28.7 | 22.3 | 44.6 |
| ø16 | 3/8 | KQG2H16-03S | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 46 |
| 1/2 | KQG2H16-04S | 24 | 29.5 | 23.1 | 113 | 37.4 |
