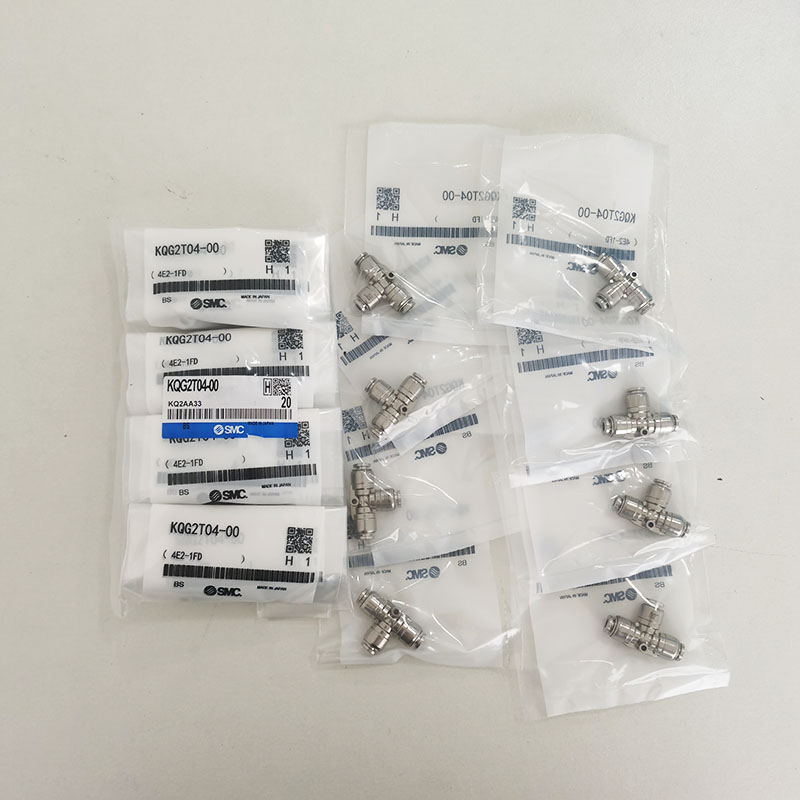

SMC KQG2T04-00
One-Touch Pipe Fittings Union Tee
Product Details:
The SMC one touch fitting has 6 mm diameter. It is made from 316
stainless steel.
- Union elbow
- Compact and light weight
- Design flexibility
- Grease-free series
Applications:
SMC's KQG2T04-00 Pneumatic Tee Fitting is a one-touch pipe fitting
designed for quick connection and disconnection of air and liquid
pipes, with a shape of tee. It is made of SS316, and its
temperature range is from -25°C to 150°C. This product is certified
by CE, and the minimum order quantity is 20. The price can be
negotiated based on the quantity and delivery time is 1-7 work days
after payment. Payment terms include T/T, Western Union and Paypal.
SMC can supply up to 5000 pieces of this pneumatic tee fitting per
month.
This one-touch tee fitting is ideal for use in applications that
require quick connection and disconnection of air and liquid pipes.
It is easy to use and provides a secure connection. The SS316
material and certified CE provide a reliable and durable
construction, making it suitable for applications in various
industries such as chemical, pharmaceutical, food, and more. This
pneumatic tee fitting is an excellent choice for pneumatic systems,
and is sure to provide a long-lasting, secure connection.
Specifications
| Parameter | Value |
|---|
| Material | SS316 |
| Types | One-Touch Couplings Single-Action |
| Application | Pneumatic Systems |
| Brand | SMC |
| Proof Pressure | 3.0MPa |
| Temperature Range | -5°C To 150°C |
| Shape | Tee |
| Applicable Tube O.D. | 4 |
Technical Parameters
| Union Elbow: KQG2T |
Applicable
tubing O.D
(mm) | Model | Note 1)
ØD | L | A | Q | M | ØN | ØO | Note 2)
Efective
area (mm²) | Weight |
| ø3.2 | KQG2T23-00 | 8.3 | 13.6 | 20.5 | 4.1 | 12 | 3.2 | 5.6 | 3.4 | 7.9 |
| ø4 | KQG2T04-00 | 9.1 | 14.6 | 21.8 | 4.4 | 12.6 | 3.2 | 5.6 | 6.4 | 9.5 |
| ø6 | KQG2T06-00 | 11.4 | 16.6 | 24.6 | 5.2 | 13.6 | 3.2 | 5.6 | 13.4 | 14.2 |
| ø8 | KQG2T08-00 | 13.7 | 20.1 | 31.1 | 7 | 16.1 | 4.2 | 8 | 25.6 | 24.4 |
| ø10 | KQG2T10-00 | 16.6 | 22 | 34 | 8 | 17 | 4.2 | 8 | 40 | 36.8 |
| ø12 | KQG2T12-00 | 18.7 | 24.6 | 37.7 | 9.1 | 18.6 | 4.2 | 8 | 57.4 | 46.9 |
| ø16 | KQG2T16-00 | 24.6 | 28.8 | 43.4 | 10.6 | 20.8 | 4.2 | 8 | 100 | 75.5 |
If you have any other question, welcome contact us
