Product Description:

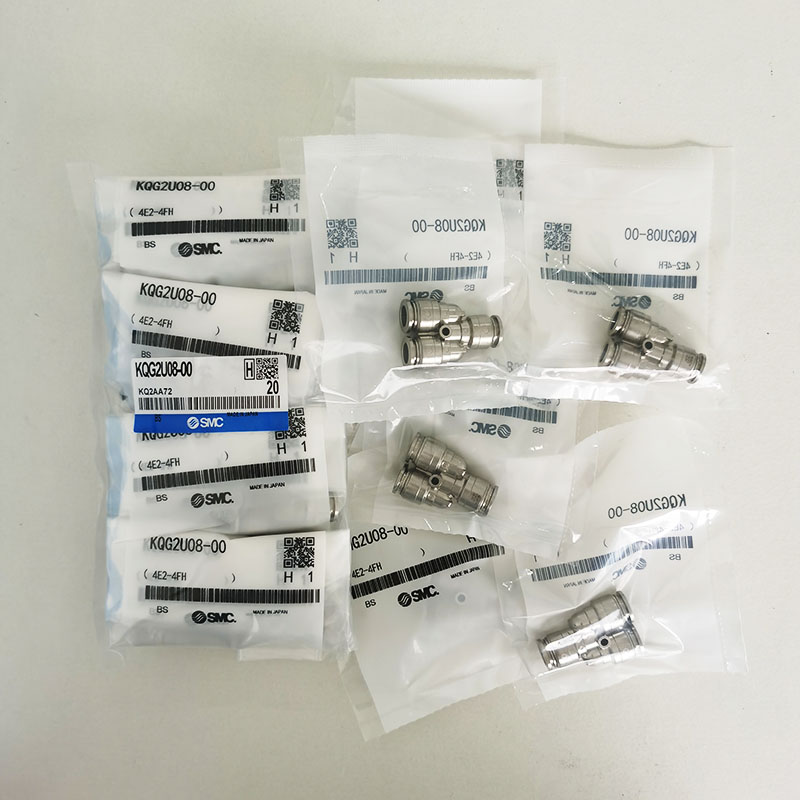

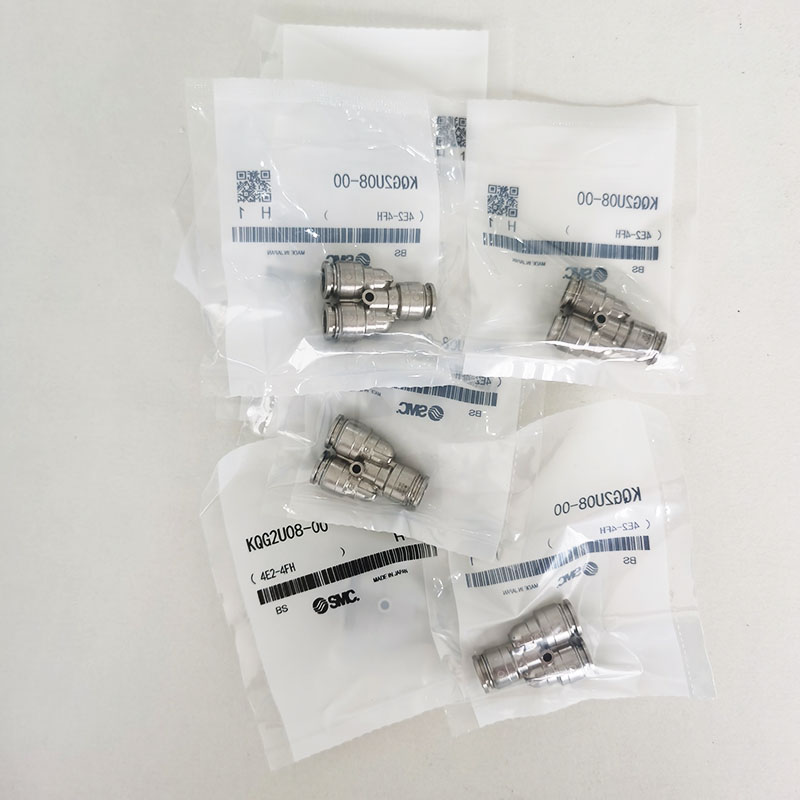

SMC KQG2U08-00 Plugs Pneumatic Automation Industry Tubing 0.D. Ø8 Connection Type Threaded

The SMC KQG2 series of stainless steel one-touch pneumatic fittings bring engineers reliable performance and robust protection against corrosion, chemicals and high temperatures. Boasting a range of advantages, these fittings are 30% smaller and 62% lighter than traditional fittings. Their compact design provides compatibility with tubing diameters of 3.2mm-16mm.

The KQG2 series is an incredibly versatile system, suitable for use with a variety of compressed air, water and steam systems. Its impressive operating pressure range is (-100kPa to 1MPa) and temperature range (-5°C to +150°C). Its premium quality SUS316 stainless steel provides far better pitting and corrosion resistance, predominantly in chloride environments, when compared to SUS304 stainless steel.

Features:

This product is remarkable for its compactness and lightness. It is about 30% shorter and 62% lighter than the KQGL06-01S. It is built with 316 stainless steel for its metallic components and special FKM rubber for its sealing parts.

This product is incredibly versatile and works with a range of tubing materials, such as FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. It even works in temperatures ranging from -5°C up to 150°C, so there is no need to worry about it not functioning in extreme weather.

Design wise, it is also grease-free, making it perfect for running with steam. Even better, its slim profile makes it easier for installation in a variety of areas.

Technical Parameters:

Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak tester, since there is

leakage.
Note 4) Check the operating pressure range and operating temperature range of the

tubing.
Note 5) It is recommended that you use the inner sleeve in the following conditions

(Except ø3.2).
When using in an environment where the fluid temperature changes drastically.
When using at a high temperature.

Applications:

TheKQG2 series one-touch fittings are a great option for those in need of an easy-to-use, cost-effective solution. They are highly versatile and suitable for a wide range of tubing, including FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin. Additionally, these fittings can also be used with air, water, and steam, and include FKM seals for complete protection.

Furthermore, their grease-free design allows for hassle-free installation and is the perfect choice for steam applications.

In conclusion, the KQG2 series one-touch fittings are a great asset for anyone in need of an efficient and reliable solution.

Customization:

Support and Services:

Our technical support and service for Pneumatic Hose Fittings are as follows:

• Assistance in product selection
• On-site installation and maintenance
• Troubleshooting
• Repair and replacement
• Answering technical questions
• Providing guidance on use and safety

Packing and Shipping:

Pneumatic hose fittings are safely and securely packaged and shipped in cardboard boxes that are designed to protect the product. Each box contains the appropriate number of fittings, along with any instructions or information that may be required. All packaging materials are recyclable.

The fittings are shipped via ground transportation, with the option to upgrade to a faster shipping method. All orders are shipped within 24 hours of receipt and include tracking information.
