Product Description:
The SMC KQG2 series of stainless steel one-touch pneumatic fittings
provides engineers with reliable performance and excellent
protection against corrosion, chemicals, and high temperatures.
These high-performance fittings offer a variety of advantages,
including being 30% smaller and 62% lighter than conventional
fittings and come with a compact design, able to be used with
tubing diameters ranging from 3.2mm to 16mm.
Furthermore, KQG2 series is highly versatile, appropriate for usage
in compressed air, water, and steam systems. Its operating pressure
range ranges from (-100kPa to 1MPa) and temperature conditions are
between (-5°C to +150°C). Taking it a step further, they are made
of SUS316 stainless steel, higher grade than SUS304 stainless
steel. This type of stainless steel guarantees enhanced pitting and
corrosion resistance capabilities, especially in chloride
environments.
Features:
This product is significantly more compact and light than the
KQGL06-01S, standing 30% shorter and weighing 62% less. Its metal
parts are fabricated using stainless steel 316, with specialized
FKM for the seal parts. Its expansive compatibility with tubing
materials makes it suitable for a wide variety of applications; it
can safely be used with FEP, PFA, nylon, soft nylon, polyurethane
and polyolefin tubing across a temperature range of -5 to 150°c.
Additionally, it is grease-free, so it is suitable for use with
steam as well.
Technical Parameters:
| Attribute | Value |
|---|
| Material | SS316 |
| Application | Aerospace Industrial |
| Operating pressure range | -100 KPa To 1 MPa |
| Ambient and fluid temperature | - 5 To 150°C |
| Proof pressure | 3.0 MPa |
| Connection Type | Threaded |
| Brand | SMC |
| Tubing 0.D. | Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 |
| Joints, Plugs Pneumatic | Yes |
| Joints, Nipples, Pneumatic | Yes |
Applications:
The KQG2 series one-touch fittings are an excellent choice for
those seeking an easy-to-use and economical solution. They are
highly versatile and can be used on a multitude of tubing, such as
FEP, PFA, nylon, soft nylon, polyurethane and polyolefin. In
addition, these fittings can also be used on air, water, and steam,
and they are fitted with FKM seals for added protection.
The KQG2 series fittings offer no-hassle installation due to their
grease-free design, making them a great option for steam
applications. To sum it up, these one-touch fittings are a great
investment for anyone looking for an efficient and reliable
solution.
Support and Services:
Pneumatic Hose Fittings technical support and services include:
- On-site technical support and installation services
- Troubleshooting and maintenance services
- Regular inspection and maintenance services
- Replacement parts and upgrades
Packing and Shipping:
Packaging and Shipping for Pneumatic Hose Fittings:

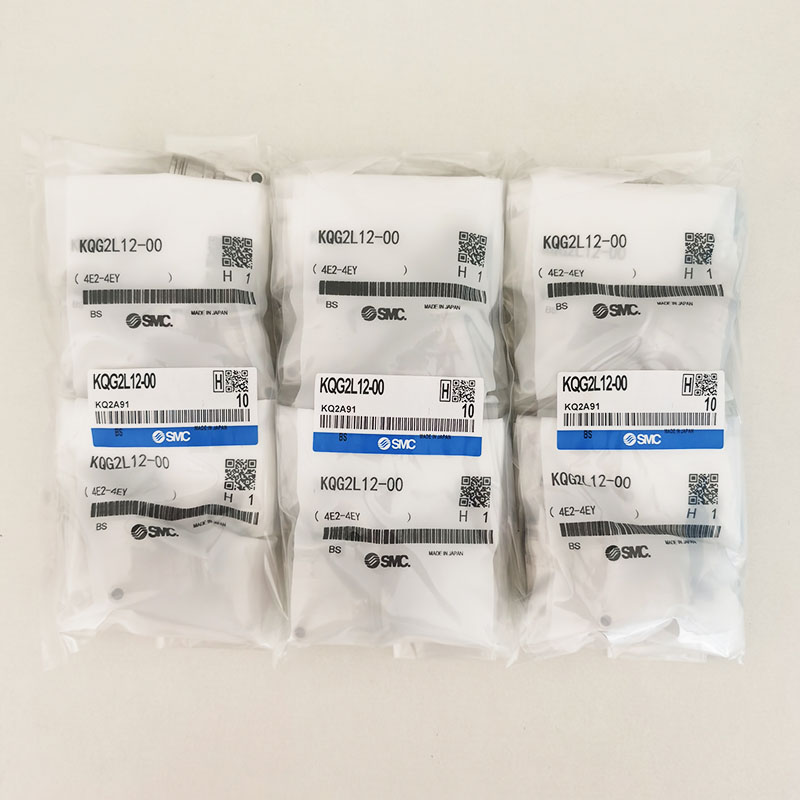

1. Packaging: Pneumatic Hose Fittings are packaged in sturdy
cardboard boxes. The size of the box will depend on the size and
quantity of the product being shipped.
2. Shipping: Pneumatic Hose Fittings are shipped by air or ground
depending on the customer's choice. All shipments are tracked and
insured for safe arrival.
FAQ:
Q&A: Pneumatic Hose Fittings
Q1: What is the brand name?
A1: The brand name is SMC.
Q2: What is the model number?
A2: The model number is KQG2L12-00.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have a certification?
A4: Yes, this product has a CE certification.
Q5: What is the minimum order quantity?
A5: The minimum order quantity is 20.
