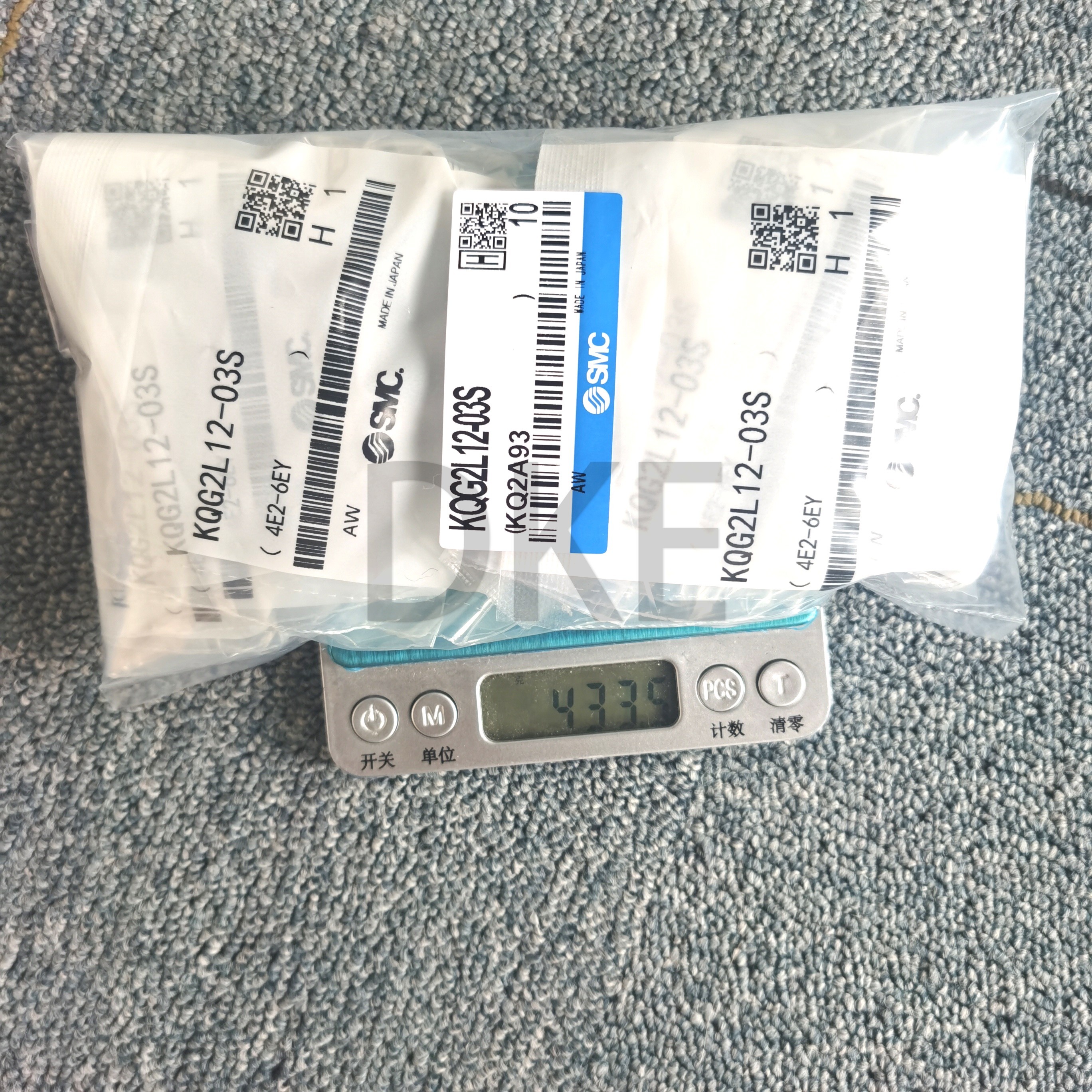

SMC KQG2L12-03S

Pneumatic Fittings Tubing O.D. Ø12 Proof pressure 3.0 MPa

Product Description:

The SMC KQG2 series of stainless steel one-touch pneumatic fittings provides engineers with reliable performance and excellent protection against corrosion, chemicals and high temperatures. These high-performance fittings offer a range of significant benefits, including being up to 30% smaller and 62% lighter than standard fittings. With their compact design, they can be used with tubing diameters ranging from 3.2mm to 16mm.

In addition, the KQG2 series is incredibly versatile and suitable for various compressed air, water and steam systems. Furthermore, the fittings have an operating pressure range of (-100kPa to 1MPa) and temperature conditions (-5°C to +150°C). For added strength and durability, they are constructed from SUS316 stainless steel. This grade of stainless steel is a cut above SUS304 stainless steel, delivering improved pitting and corrosion resistance qualities, particularly in saline environments.

Features:

This product is highly compact and light, with dimensions reduced by approximately 30% and a weight that is approximately 62% lighter than its predecessor, the KQGL06-01S. It is constructed with stainless steel 316 for its metal parts and FKM for its seal parts.

This product is also versatile, capable of working with a range of tubing materials, including FEP, PFA, nylon, soft nylon, polyurethane and polyolefin, at temperatures between -5 and 150°c. Furthermore, it is completely grease-free, making it suitable for use with steam.

Technical Parameters:

Note 1) For soft nylon tubing, water cannot be used.

Note 2) Consult with SMC regarding applicable tube separately.

Note 3) Avoid using in a vacuum holding application such as a leak tester, since there is leakage.

Note 4) Check the operating pressure range and operating temperature range of the tubing.

Note 5) It is recommended that you use the inner sleeve in the following conditions (Except Ø3.2):

● When using at a high temperature.

● When using at a high temperature.

Applications:

The KQG2 series one-touch fittings are an excellent choice for those in need of an easy, yet cost-effective solution. They are highly versatile and suitable for a wide range of tubing, such as FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin, as well as air, water, and steam. Furthermore, these fittings come with FKM seals to provide extra protection and a grease-free design for trouble-free installation.

Not only that, but they are also ideal for steam applications due to their user-friendly design and grease-free features. As such, the KQG2 series one-touch fittings are an ideal asset for anyone in need of an efficient and long-lasting solution.

Support and Services:

Pneumatic Hose Fittings technical support and services includes help with installation, troubleshooting and repair of all the related products. We provide a comprehensive suite of online resources such as manuals, FAQs, product diagrams, and video tutorials to help you quickly resolve any issues you may have with the product. In addition, we provide telephone and email support from our experienced technical support team, to help you with any queries you have.

We also offer a comprehensive selection of spare parts to ensure you get the right replacement part for your Pneumatic Hose Fittings. We provide same-day shipping on all parts orders, and our parts are backed by a one-year warranty.

Packing and Shipping:

Pneumatic Hose Fittings are securely packaged in sturdy cardboard boxes with the product securely cushioned inside. The box is then labeled with the product description and shipping address. All orders are shipped via a reliable and secure delivery service, such as UPS or FedEx. Customers can also have the option of having their orders shipped via an express service for an additional fee.
