KQG2T12-03S Quick Connect Fitting Male Branch SUS316 Aerospace Industry

Ask Lasest Price
Brand Name :	SMC
Model Number :	KQG2T12-03S
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	5000 pieces/1Month
Delivery Time :	1-7Work Days After Payment

Add to Cart

Product Details
Company Profile

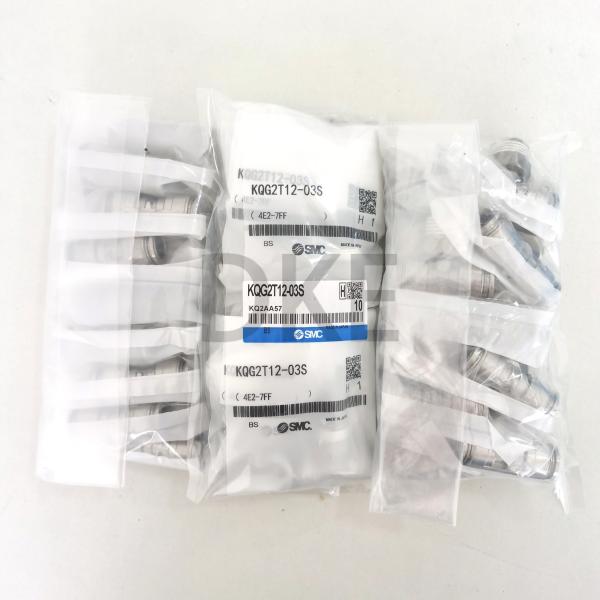

KQG2T12-03S Quick Connect Fitting Male Branch SUS316 Aerospace Industry

SMC KQG2T12-03S

Quick-Connect Fittings Male Branch SUS316

Product Description:

Following industry requests for a range of light-weight, grease-free and high-performance metal fittings, our R&D engineers have re-designed their popular KQG/KFG and KQB metal fittings ranges. The new versions are even smaller, lighter and stronger.

Our new KQG2 Series of stainless steel 316 one-touch fittings are 30% smaller and 62% lighter than the previous models, with 8 new options and now 17 models in total. Compatible with a variety of tube diameters from 3.2mm up to 16mm, these fittings are designed for applications where heat, corrosion and chemical resistance is a necessity.

The KFG2 Series, our stainless steel 316 insert type fitting, has been extended from 5 to 9 models, with NPT threads and a 16mm tube size. These fittings can operate at temperatures from -65ºC to 260ºC when selected without a sealing thread agent, with sleeveless sealing ensuring easier maintenance.

Finally, our brass option, Series KQB2 includes 17 models with both NPT and G thread options. 30% smaller and 62% lighter than previous models, electroless nickel plating is applied to all brass parts to ensure these fittings look great for the duration of their lifetime.

Applications:

SMC's KQG2T04-00 Pneumatic Tee Fitting is a one-touch pipe fitting designed for quick connection and disconnection of air and liquid pipes, with a shape of tee. It is made of SS316, and its temperature range is from -25°C to 150°C. This product is certified by CE, and the minimum order quantity is 20. The price can be negotiated based on the quantity and delivery time is 1-7 work days after payment. Payment terms include T/T, Western Union and Paypal. SMC can supply up to 5000 pieces of this pneumatic tee fitting per month.

This one-touch tee fitting is ideal for use in applications that require quick connection and disconnection of air and liquid pipes. It is easy to use and provides a secure connection. The SS316 material and certified CE provide a reliable and durable construction, making it suitable for applications in various industries such as chemical, pharmaceutical, food, and more. This pneumatic tee fitting is an excellent choice for pneumatic systems, and is sure to provide a long-lasting, secure connection.

Its temperature range is from -25°C to 150°C, making it suitable for both high and low temperature applications. The minimum order quantity is 20 and the price can be negotiated based on the quantity, delivery time, and payment terms. SMC can supply up to 5000 pieces of this product per month, making it a great and convenient option.

Technical Parameters:

Male Elbow: KQG2T
Applicable tubing O.D (mm)	Connection thread R, M	Model	H (Width across flat)	Note 1) ØD	L1	L2	A*	M	Note 2) Efective area (mm²)	Weight (g)
ø3.2	M5 x 0.8	KQG2T23-M5	8	8.3	13.1	14.8	16	12	3.2	8.1
	1/8	KQG2T23-01S	10		13.6	14.9	15.9		3.4	9.4
	1/4	KQG2T23-02S	14		13.6	18.7	18.1		3.4	17.7
ø4	M5 x 0.8	KQG2T04-M5	8	9.1	13.7	15.2	16.8	12.6	4.5	9
	1/8	KQG2T04-01S	10		14.4	15.3	16.7		6	10.4
	1/4	KQG2T04-02S	14		14.4	19.1	18.9		6	18.8
ø6	M5 x 0.8	KQG2T06-M5	8	11.4	14.7	16.3	19	13.6	4.5	11.9
	1/8	KQG2T06-01S	10		15.9	16.4	19		13.9	13.4
	1/4	KQG2T06-02S	14			20.2	21.2			21.8
	3/8	KQG2T06-03S	17			21.6	22.2			33.3
ø8	1/8	KQG2T08-01S	12	13.7	18.6	18.3	22	16.1	26.3	20
	1/4	KQG2T08-02S	14		19.1	21.5	23.6			25.5
	3/8	KQG2T08-03S	17		19.1	22.9	24.6			36.8
ø10	1/8	KQG2T10-01S	12	16.6	20	19.7	24.9	17	40.8	28.4
	1/4	KQG2T10-02S	14		21	22.9	26.5			31.1
	3/8	KQG2T10-03S	17			24.3	27.5			41.4
	1/2	KQG2T10-04S	22			28.5	30.4			68
ø12	1/4	KQG2T12-02S	14	18.7	22.6	24	28.6	18.6	57.2	37.8
	3/8	KQG2T12-03S	17		23.6	25.3	29.5			39.3
	1/2	KQG2T12-04S	22		23.6	29.5	32.4			68.8
ø16	3/8	KQG2T16-03S	19	24.6	26.3	28	34.5	20.8	71	63.7
ø16	1/2	KQG2T16-04S	22	24.6	27.3	31.8	37	20.8	100	77.6

KQG2T12-03S Quick Connect Fitting Male Branch SUS316 Aerospace Industry
