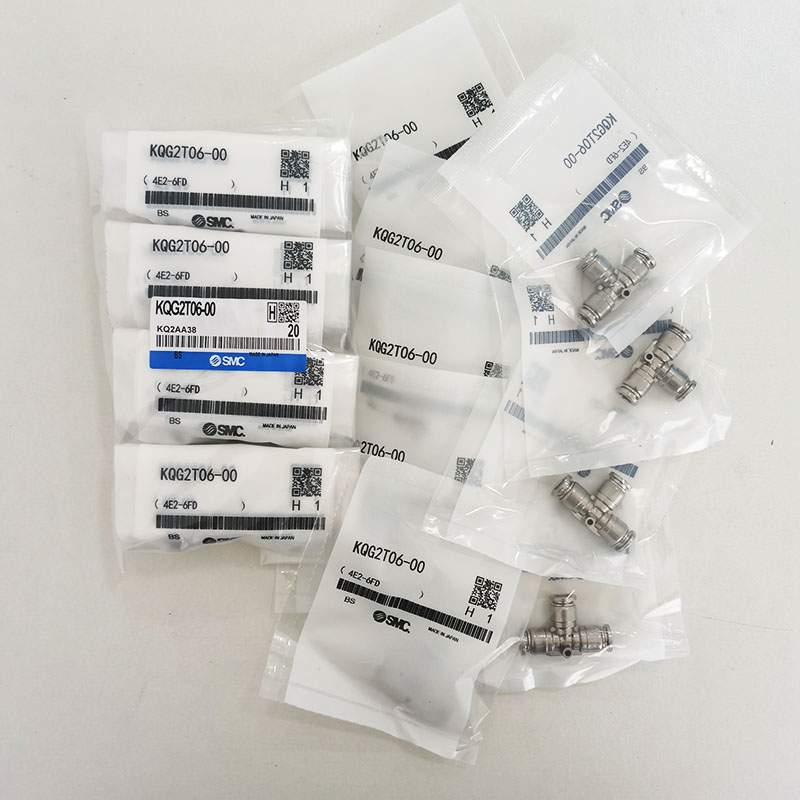

SMC KQG2T06-00
Joints One-Touch Pipe Tee Power Industry SUS316
Product Description:
SMC KQG2 series one-touch pneumatic fittings offer consumers a
great range of benefits. They are 30% smaller and 62% lighter than
the older KQG range, and fit a variety of tubing diameters ranging
from 3.2 to 16mm. Also, they are lightweight and compact, making
them suitable for a variety of environments, from compressed air
and water to steam.
These fittings are designed to perform under a wide range of
pressures, from -100kPa to 1MPa, and temperatures, from -5°C to
+150°C, making them highly reliable. Furthermore, they are
constructed using SUS316 stainless steel, which is stronger than
the usual grade 304 stainless steel, and offers superior resistance
to corrosion in chloride environments.
Features:
SMC KQG2 Series One-Touch Pneumatic Fittings
SMC KQG2 series one-touch pneumatic fittings are manufactured from
SUS316 stainless steel, offering better corrosion resistance
properties than grade 304 stainless steel. The SUS316 stainless
steel provides superior pitting and corrosion resistance, and is
particularly suitable for chloride environments.
This product is greater in compactness and lightness than its
predecessor, the KQGL06-01S. It is approximately 30% shorter and
62% lighter. Additionally, the metal parts of the KQG2 are made
with stainless steel 316 and sealed with special FKM. It is
compatible with tubes made of TEP, PFA, Nylon, soft nylon,
polyurethane or polyolefin.
Applicable Tubing: Metric Size, Connection Thread: M, R, RC
| Applicable Tubing | Applicable Tubing | FEP, PFA, Nylon, Soft nylon Note 1), Polyurethane, Polyolefin |
| Tubing 0.D. | Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 |
| Specifications | Fluid Note 3) | Note 2) |
| Operating pressure range | -100 kPa to 1 MPa Note 4) |
| Proof pressure | 3.0 MPa |
| Ambient and fluid temperature Note 5) | - 5 to 150°C (No freezing) Note 4) |
| Lubricant | Grease-free specification |
| Seal on the threads | With sealant |
Temperature
Condition of Mounting
the Inner Sleeve | Tubing | Temperature |
| FEP tubing/TH Series | 80°C or more |
| Super PFA tubing/TL Series | 120°C or more |
| |
Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak
tester, since there is leakage.
Note 4) Check the operating pressure range and operating
temperature range of the tubing.
Note 5) It is recommended that you use the inner sleeve in the
following conditions (Except Ø3.2):
●When using at a high temperature.
●When using at a high temperature.
Technical Parameters
| Union Elbow: KQG2T |
Applicable
tubing O.D
(mm) | Model | Note 1)
ØD | L | A | Q | M | ØN | ØO | Note 2)
Efective
area (mm²) | Weight |
| ø3.2 | KQG2T23-00 | 8.3 | 13.6 | 20.5 | 4.1 | 12 | 3.2 | 5.6 | 3.4 | 7.9 |
| ø4 | KQG2T04-00 | 9.1 | 14.6 | 21.8 | 4.4 | 12.6 | 3.2 | 5.6 | 6.4 | 9.5 |
| ø6 | KQG2T06-00 | 11.4 | 16.6 | 24.6 | 5.2 | 13.6 | 3.2 | 5.6 | 13.4 | 14.2 |
| ø8 | KQG2T08-00 | 13.7 | 20.1 | 31.1 | 7 | 16.1 | 4.2 | 8 | 25.6 | 24.4 |
| ø10 | KQG2T10-00 | 16.6 | 22 | 34 | 8 | 17 | 4.2 | 8 | 40 | 36.8 |
| ø12 | KQG2T12-00 | 18.7 | 24.6 | 37.7 | 9.1 | 18.6 | 4.2 | 8 | 57.4 | 46.9 |
| ø16 | KQG2T16-00 | 24.6 | 28.8 | 43.4 | 10.6 | 20.8 | 4.2 | 8 | 100 | 75.5 |
