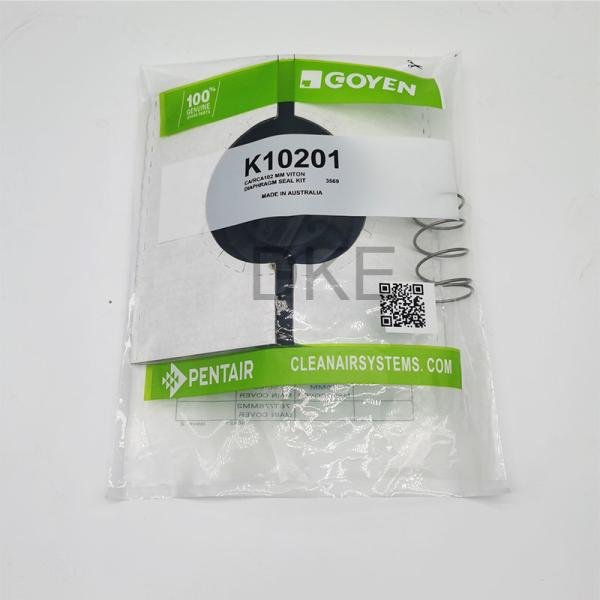

GOYEN Dust Collector Pulse Jet Valve Membrane Repair Kit K10201
Product AttributesModel No.: K10201
Brand: GOYEN
Spring: 2
Diaphragm Material: Buna (Nitrile)
Packaging: Individual Plastic Bag Sealed
Diaphragm Outer Diameter: φ200mm
Bleed Hole: 2
Name: K10203 Buna RCA102 Diaphragm Kit
Seat Outer Diameter: φ116.5mm
Seat Inter Diameter: φ60mm
Applicable Valves: 4'' CA102MM, RCA102MM
K10200 K10201 K10202 K10203 Diaphragm Repair Kit
We can supply Goyen Valve repair kits for many size or
configuration Goyen valve. All kits are same as Goyen spare parts
and are produced by our own factory. Diaphragm kits typically
contain the replacement diaphragm(s) as well as the spring(s).
Popular valves and repair kits are in stock and available to ship
in short times. We can offer unbeatable prices on your dust
collector spare parts, including diaphragm valves, solenoids and
control boards. The K10203 diaphragm kits are shown below. If you
don't see the kit you need, pls feel free to contact us.
Technical Parameters:
| Material | Repair Kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) |
| K2016 |
| K2034 |
| Buna/Buna | K2002(M764) |
| FKM | K2007(M2080B) |
| K2004(1328B) |
| K2017 |
| K2033 |
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 |
| K2549 |
| K2531 |
| K2545 |
| K2546 |
| Buna/Buna | K2502(M736) |
| FKM | K2503(M1887) |
| K2530 |
| K2532 |
| K2551 |
| Buna/Nylon | K2500(M1183) | CA32, RCA32, CA35, RCA35, | 1-1/2'' |
| K3500(M1581) | CA40, RCA40, CA45, RCA45 |
| K4000(M1182) | |
| K4502(M2162) | |
| Buna/Buna | K3502(M1591) | |
| K4504(M2187) | |
| FKM | K2503(M1887) | |
| K4004(M1761) | |
| K4007(M1156) | |
| K4503(M2163) | |
| Buna/Nylon, Buna/Buna | K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) |
| FKM | K5000(M1157A) |
| K5002(M1528A) |
| Buna/Nylon, Buna/Buna | K7600 | CA76, RCA76 | 3'' |
| K7604 |
| K7610 |
| FKM | K7602 |
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 |
| FKM | K10201 |
| Buna/Nylon, Buna/Buna | K8000 | CA8, RCA8 | 8'' |
| FKM | |
Packing and Shipping:
Packaging and Shipping of Pulse Valve Diaphragm
The packaging of our Pulse Valve Diaphragm is designed to ensure
the safe delivery of the product to our customers. Each diaphragm
is carefully packaged in a sturdy box, with ample cushioning to
prevent any damage during transportation.
For larger orders, we use pallets to further secure the diaphragms
and minimize the risk of any mishandling during shipping. Each box
is clearly labeled with the product name, quantity, and any
necessary handling instructions.
We offer various shipping options to our customers, including
standard ground shipping, express shipping, and air freight. Our
team works closely with trusted shipping carriers to ensure timely
and reliable delivery of our products.
With our efficient packaging and shipping process, you can rest
assured that your Pulse Valve Diaphragms will arrive at your
doorstep in perfect condition.
