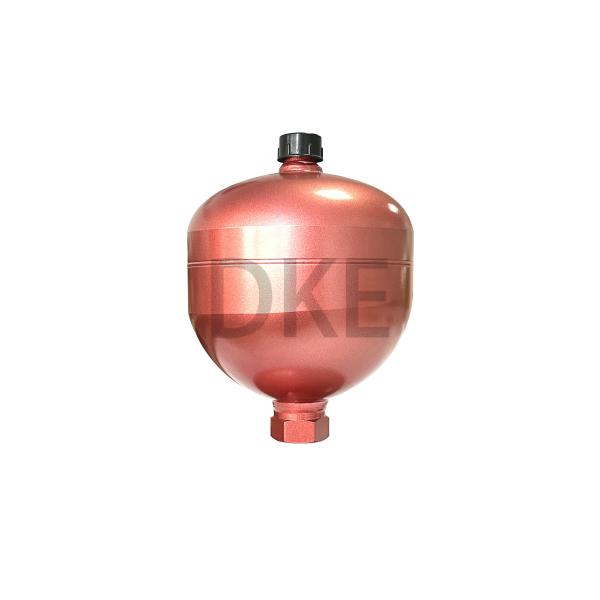

HYDAC SBO-210-0.5
Adjustable Pre-charge Pressure Diaphragm Accumulators
Product Description:
HYDAC diaphragm accumulators utilize nitrogen gas to store
hydraulic energy. This is necessary because fluids are not
compressible on their own. The accumulator uses a diaphragm to
separate the gas and fluid sides.
When pressure increases, fluid is drawn into the accumulator and
compresses the gas. As pressure decreases, the gas expands and
returns energy to the hydraulic circuit.
A poppet is included in the diaphragm to prevent it from being
pushed through the fluid port.
HYDAC produces two types of diaphragm accumulators: welded
(non-repairable) and threaded (repairable). They are commonly used
in industrial and mobile applications for energy storage, pressure
maintenance, leakage compensation, and vehicle hydraulic systems
(such as brakes and suspension).
Features:
Compact Design
The diaphragm accumulator boasts a compact design that allows for
easy integration into hydraulic systems, making it a versatile
choice for a variety of applications.
Low Weight
Thanks to its lightweight construction, the diaphragm accumulator
is an ideal option for mobile applications where weight is a
crucial factor.
Flexible Mounting Positions
The diaphragm accumulator can be mounted in various positions,
providing flexibility in design and installation.
Extremely Quick Shock Response
The diaphragm accumulator is known for its exceptionally fast shock
response, making it efficient in mitigating sudden pressure spikes
and protecting the system from damage.
Low Cost
The diaphragm accumulator is a cost-effective solution compared to
other accumulator types, making it a popular choice for
budget-conscious applications.
Low Lubricity Fluids, like Water
This type of accumulator is compatible with low lubricity fluids,
including water, making it a suitable option for use in various
industries.
Two Types of Diaphragm Accumulators
There are two types of diaphragm accumulators available:
non-repairable (welded) and repairable (threaded).
Non-Repairable (Welded) Diaphragm Accumulators
These types of accumulators cannot be repaired and are instead
welded shut during the manufacturing process.
Repairable (Threaded) Diaphragm Accumulators
As the name suggests, these types of accumulators can be repaired
if necessary, thanks to their threaded design.
Diaphragm accumulators have a proven track record of successful
application in both industrial and mobile settings, providing
essential functions such as:
- Reducing pump capacity and electrical energy consumption
- Providing auxiliary hydraulic power in emergencies
- Limiting pressure fluctuations caused by temperature changes in
closed hydraulic loops
- Compensating for leakage in the system
- Minimizing pump pulsations
- Absorbing shocks to protect the system
Technical Parameters:
| Type | Non-Repairable, Welded, Rechargeable |
|---|
| Series | SBO 210 |
|---|
| Material – fluid port | Carbon Steel |
|---|
| Material Diaphragm | NBR |
|---|
| Connection type (fluid) | Female Thread |
|---|
| Preferred models | Yes |
|---|
| Material Accumulator shell | Carbon Steel |
|---|
| Pre-charge pressure adjustable | Yes |
|---|
| Features | Energy accumulator, Diaphragm Accumulators, Precision Filter
Elements |
|---|
Applications:
Some Common Applications of Diaphragm Accumulators:
Diaphragm accumulators have a wide range of uses in various
industries. Some common applications include:
- Agricultural Machinery & Equipment
- Forestry Equipment
- Machine Tools
- Mining Machinery & Equipment
- Mobile & Construction Equipment
- Off-Road Equipment
Packing and Shipping:
Packaging and Shipping
Packaging:
The Precision Filter Elements are packaged in high quality
cardboard boxes with foam padding to protect the product during
shipping. Each filter element is individually wrapped in plastic to
prevent any damage or contamination during transport.
Shipping:
The Precision Filter Elements are shipped via air or sea freight,
depending on the customer's preference and order quantity. For
smaller orders, we offer express shipping options for faster
delivery. The shipping cost and estimated delivery time will be
provided upon request.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HYDAC. - Q: What is the model number of this product?
A: The model number of this product is SBO-250-0.075. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: Is this product certified?
A: Yes, this product is certified with CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1. - Q: Can the price of this product be negotiated?
A: Yes, the price of this product can be negotiated. - Q: How long is the delivery time for this product?
A: The delivery time for this product is 1-7 work days after
payment. - Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, Western Union, and
Paypal. - Q: What is the supply ability for this product?
A: The supply ability for this product is 5000 PCs per month.
