Festo Zinc Alloy Filter 40 μm LF-3/8-D-MINI-A,0.5 - 12bar
Characteristics
At a glance
• Very compact and extremely lightweight series for use close to
the process directly in the machine.
• Stable control response
• The rotary knob locks into place to prevent unintentional
rotation
• Integrated secondary exhaust and primary exhaust with return ffow
function
Productsegmentation
Festo Core Range Solves the majority of your automation tasks With
the Festo Core Range, we have selected the most important products
and functions from our broad product catalogue, and added the
quickest delivery. the Core Range offers you the best value with
the expected high Festo quality.
• Quickest delivery, worldwide – wherever, whenever
• Expected high Festo quality
• Easy and fast to select
Pneumatic connection
Depending on the size, different connection types can be selected:
• Individual ffttings that are fastened via a female thread
• Built-in connections into which the tubing can be directly
inserted
Pressuregaugealternatives
The pressure regulator can be ordered with or without a pressure
gauge. The interface has a thread of G1/8.
Alternative pressure gauge scale
The scaling of the built-in pressure gauge can be selected. The
unit options available are [MPa], [bar] / [psi].
| General technical data |
| Size | Micro | Mini | Midi | Maxi |
| Pneumatic connection | 1/8" | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" |
| Operating medium | Compressed air |
| Design | Sintered filter with centrifugal separation |
| Type of mounting | Via accessories |
| In-line installation |
| Assembly position | Vertical ±5° |
| Grade of filtration [µm] | 5 | 5 or 40 |
| Max. condensate volume [cm3] | 3 | 22 | 43 | 80 |
| Input pressure [bar] |
| Condensate drain | manual | 0~10 | 0~16 |
| semiautomatic | 1~10 | - |
| fully automatic | - | 2~12 |

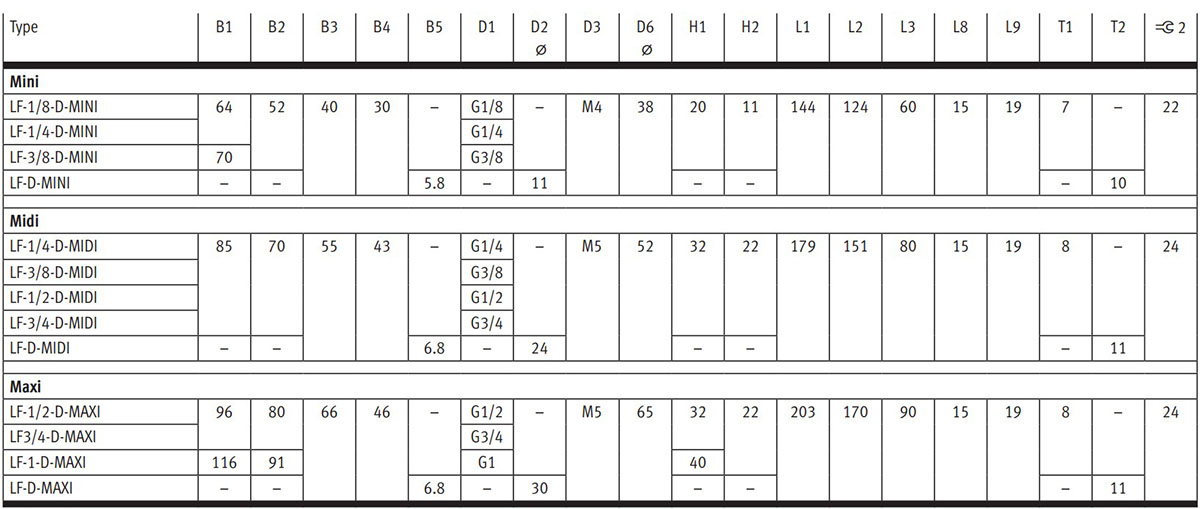

| Size | Micro | Mini | Midi | Maxi |
| Female thread | Port block | Connection
3/4NPT | Connection 1NPT |
| LF-… | 44 | 64 | 250 | 700 | 1340 | 1440 |
