    1'' RCA25DD Goyen Type Remotely Piloted Diaphragm Valve

    Ask Lasest Price
    Brand Name : GOYEN
    Model Number : RCA25DD
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 pieces/1Month
    Delivery Time : 1-7Work Days After Payment
    • Product Details
    • Company Profile

    1'' RCA25DD Goyen Type Remotely Piloted Diaphragm Valve

    Product Attributes

    Model No.: RCA25DD

    Brand: GOYEN

    Number Of Diaphragm: 1

    Port Size: 1''

    Series: DD (Double Dresser Nut)

    Diaphragm Material: Buna (Nitrile)

    Working Pressure Range: 0.3MPa~0.8MPa

    Wokring Temperature Range: -5℃~+55℃

    Supply Voltages: AC24V, AC110V, AC220V, AC230V, DC24V

    Name: RCA25DD Goyen Type Pulse Jet Valve

    Integral Or Remote: Remote Pilot

    1'' RCA25DD Goyen Type Remotely Piloted Diaphragm Valve


    Product Description of Goyen Type DD Series Pulse Jet Valves:
    Goyen type DD series Dust Collector Pulse Jet Valve which has double dresser nut connections is used for reverse pulse jet bag type dust collector, which can provide the precision engineering valve required by the market. The Pulse Jet Valve has strong body and high-quqlity diaphragm. In addition to saving compressed air, high-speed operation helps provide shock waves to remove dust from the filter bag. High flow, long life and fast diaphragm action enable reliable and economical operation.

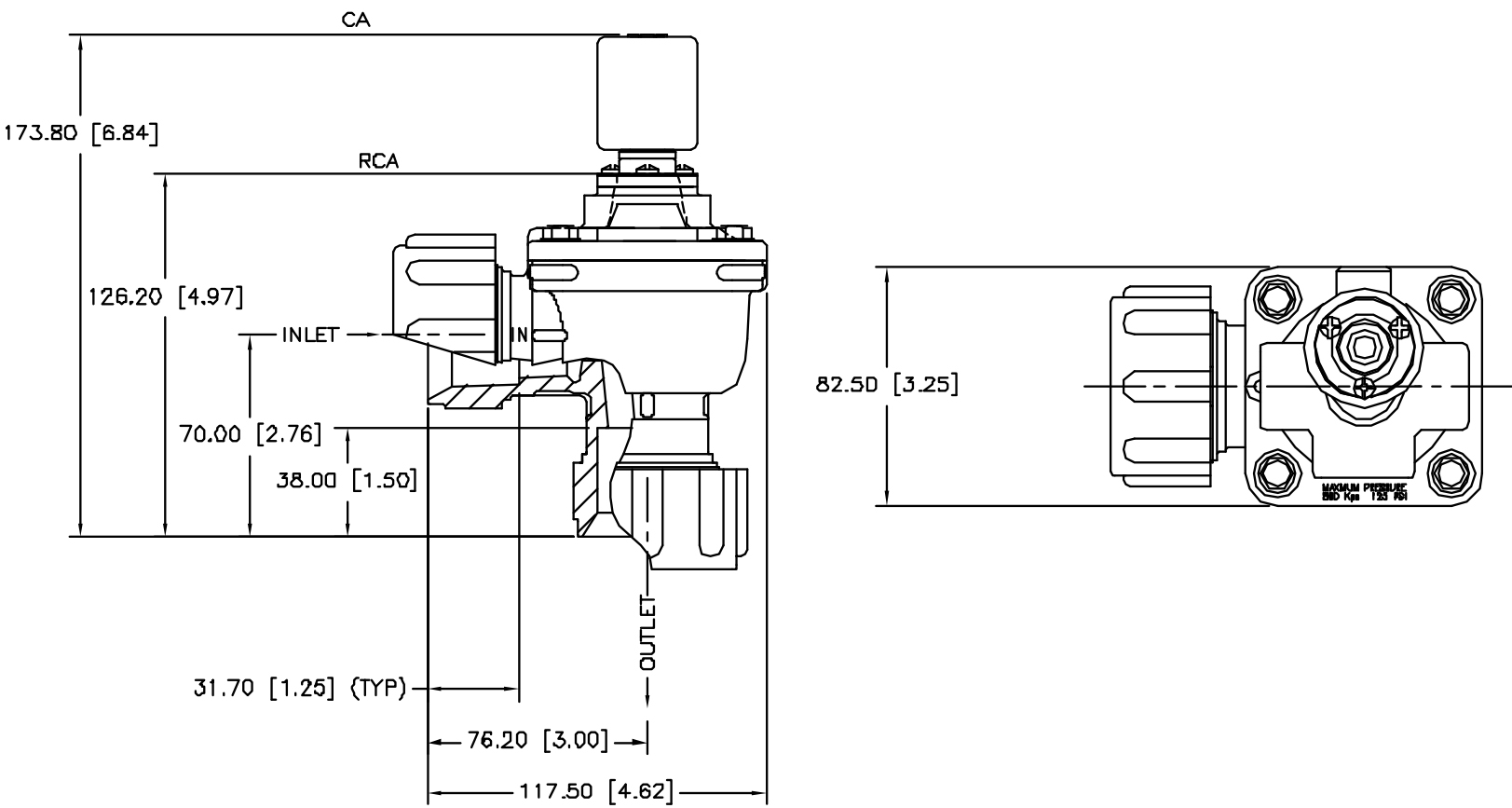

    Main dimension of RCA25DD Goyen Replacement Diaphragm Valve:

    CA25DD dimension

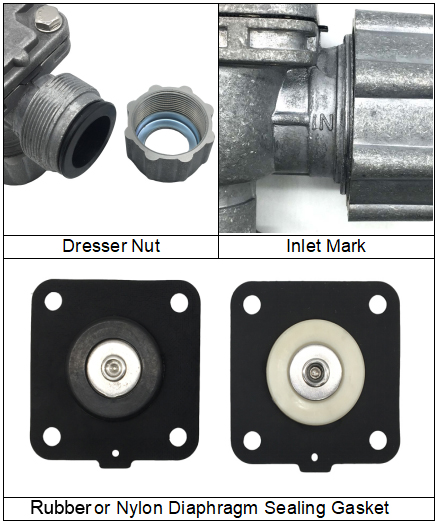

    Details enlargement of RCA25DD Goyen Type Dust Collector Valve:


    Technical parameters of Goyen Type DD Series Dust Collector Valves:


    Model
    RCA20DD
    RCA25DD
    RCA45DD
    Nominal Size
    20
    25
    45
    Port size
    mm
    20
    25
    40
    in
    3/4
    1
    1 1/2
    Number of Diaphragms
    1
    1
    2
    Flow
    Kv
    12
    20
    44
    Cv
    14
    23
    51
    Pressure (Psi)
    5 to 125
    5 to 125
    5 to 125
    Temperature℃
    NBR
    -40 to 82
    -40 to 82
    -40 to 82
    FKM
    -29 to 232
    -29 to 232
    -29 to 232

    The dust cleaning device of the bag filter comprises:

    A pulse jet valve, a blowing pipe, a gas storage bag, an inducer, a filter material and a control device; the two ends of the pulse valve are respectively connected with compressed air and a blowing pipe, and the blowing pipe performs a plurality of blowing to clear gray. The blowing system and the compression piping system include a gas storage tank, a blowing pipe and the like, and the gas storage tank is a device for providing compressed air for storage, and has a certain strength, first inputting a human electric signal, so that the diaphragm is in a standby state, utilizing The air pressure causes the diaphragm to vibrate and close. The air compressed by the compressed air system requires dry air and cannot contain oily substances, which may cause certain damage to the bag filter.

    The dust cleaning device of the bag filter is an important component device. According to the different cleaning methods, the bag filter can be divided into the following categories. The periodic operation of the machine is used to shock the filter bag to achieve the purpose of cleaning. This method can also be divided into two types, namely continuous shock and intermittent shock. These two types of choices According to the actual situation and the density of dust to choose; the use of compressed air instead of mechanical shock, the principle is the same as the principle of mechanical shock, but the way of shock is different; when the dust is deposited, you can choose pulse cleaning, release compression The moment of air will affect the atmospheric pressure of the surrounding air.
