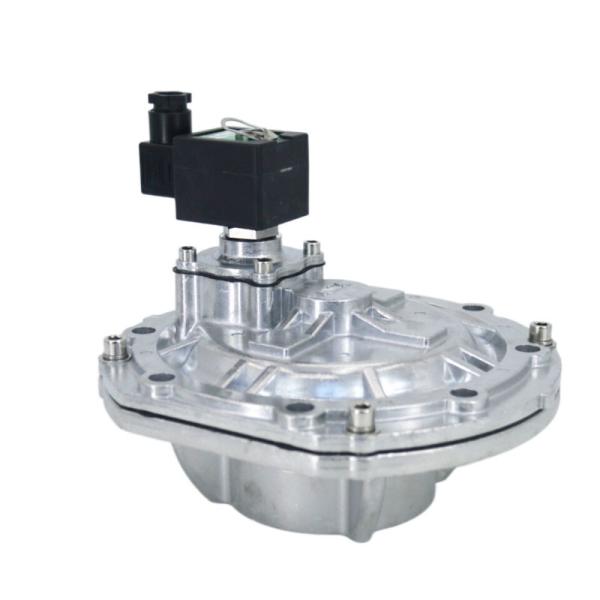

Dual Stage Embedded 3" Pulse Valve SCXE353.060
Product Attributes
Model No.: SCXE353.060
Brand: ASCO
Actuator: Pneumatic
Connection: Welded Diaphragm Valve
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Pressure: Ordinary Temperature
Flow Direction: Unidirection
Function: Solenoid Valve
Usage: Emptying
Standard: GB
Quick Instruction of Pulse Valve SCXE353.060
1, Differential pressure: 0,35 - 8,5 bar
2, Ambient temperature range: -20 to +85°C3, Coil insulation class: F
4, Connector: Spade plug (cable Φ 6 - 10 mm)
5, Electrical safety: IEC 335
6, Standard voltages: DC: 24V (Other voltages and 60 Hz on request)
AC: 24V - 115V - 230V / 50 Hz
3" Embedded Pulse Valve SCXE353.060 Components Material Instruction:
| Cover of Solenoid Coil of SCXE353.060 Pulse Valve | Thermosetting |
| Wire of Solenoid Coil of SCXE353.060 Pulse Valve | High temperature resistant enameled wire |
| Guide Tube of SCXE353.060 Pulse Valve | SUS304 |
| Armature of SCXE353.060 Pulse Valve | 430FR |
| Spring of SCXE353.060 Pulse Valve | SS304 |
| Diaphragm of SCXE353.060 Pulse Valve | NBR (nitrile) |
| Body of SCXE353.060 Pulse Valve | Aluminium |
Overall Dimensions of Embedded Diaphragm Pulse Valve SCXE353.060:
Operating Operation of Pulse Valve SCXE353.060
1. Waterproof enclosure with embedded screw terminal coil according
to protection class IP67, CEE 10
2. Explosionproof solenoids for hazardous locations according to
[ATEX" (CENELEC) and national standards
3. Electronic timer
4. Explosionproof and watertight solenoids according to [NEMA"
standards
5. Hose connection executions (3" only)
6. Compliance with [UL" standards
7. Plug with visual indication and/or peak voltage suppression
8. Valves can also be supplied with FPM (fluorelastomer) diaphragms
and seals. Use the appropriate suffix letter for identification
