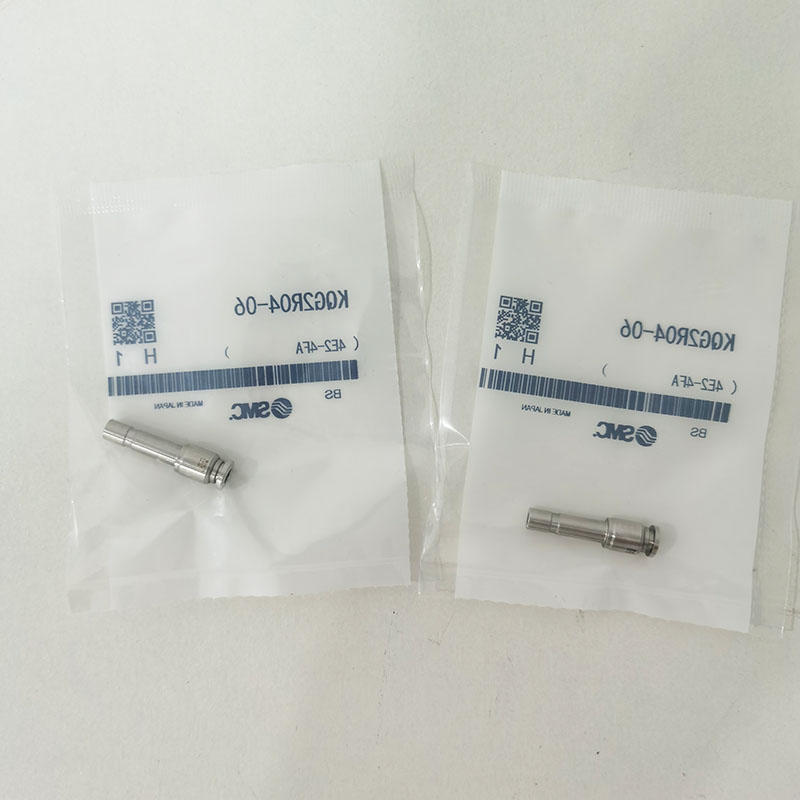

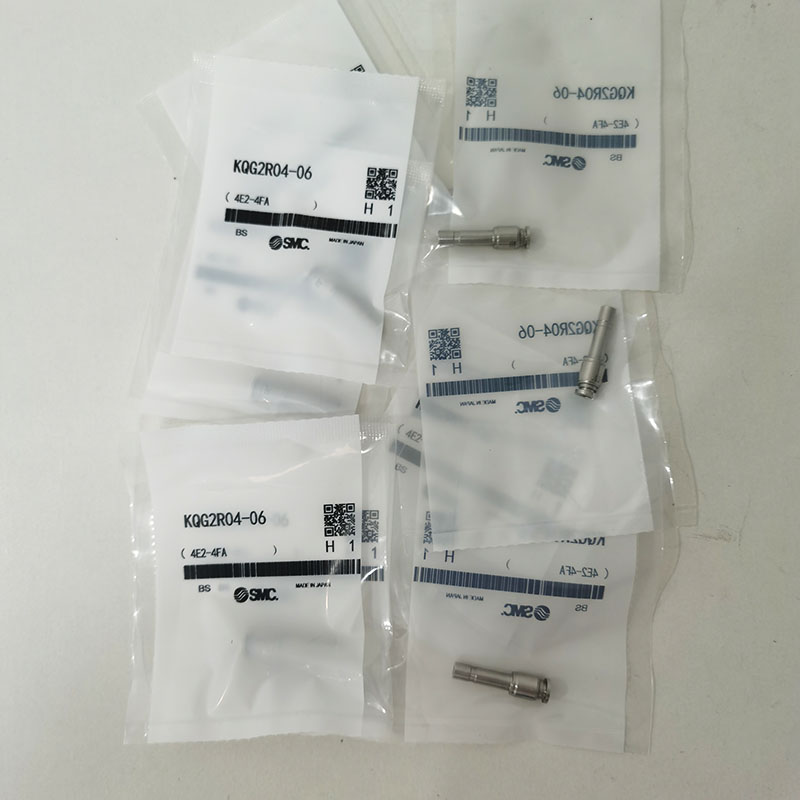

SMC Corporation KQG2R04-06 One-Touch Fitting,4 Mm Tube Size
Product Description:
SMC's KQG2 Stainless Steel Range
SMC's KQG2 stainless steel range provides engineers with a choice
of high performance, lightweight, compact push in fittings for when
resistance to corrosion, chemicals and high temperatures is vital.
30% smaller and 62% lighter than the existing KQG range and
available to tubing diameters from 3.2 to 16mm.
Threaded, Tube-to-Tube & Adaptors
This range includes both threaded, tube-to-tube and adaptors
components to fit a variety of applications.
KQG2 SUS316 Stainless Steel Fittings
The KQG2 series fittings are manufactured from the highest grade
SUS316 stainless steel, making them incredibly resistant to
corrosion even in the harshest environments.
High Capability Performance
The SMC KQG2 range of stainless steel fittings are capable of
performing under a range of pressures (-100kPa to 1MPa) and
temperatures (-5°C to +150°C), making them suitable for use with
compressed air, steam and water.
Features:
Compact and light, this product is approximately 30% shorter than
its predecessor, KQGL06-01S, and around 62% lighter. It comes with
metal parts made of stainless steel 316, sealed with special FKM
and is suitable with tubing materials such as TEP, PFA, Nylon, soft
nylon, polyurethane and polyolefin.
Applicable Tubing:
Attribute | Value |
|---|
| Connector A | Push In 4 mm |
| Connector B | Push In 6 mm |
| Pneumatic Fitting Type | Straight Tube-to-Tube Adaptor |
| Connection Style | Tube-to-Tube |
| Manufacturer Series | KQG2 |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -5°C |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 1 MPa |
KQG2 SUS316 Stainless Steel Fittings
SMC KQG2 series one-touch pneumatic fittings are manufactured from
SUS316 stainless steel, offering corrosion resistant properties
that are better than grade 304 stainless steel. SUS316 stainless
steel offers higher pitting and corrosion resistance properties,
and is especially suitable for chloride environments.
KQG2 series one-touch fittings make use of FKM seals and may be
used with a variety of tubing including nylon, soft nylon,
polyurethane, polyolefin, FEP and PFA. The fittings are suitable
for use with steam and are grease-free.
FAQ:
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China,
17kms away from Ningbo Airport. We sincerely welcome customers to
visit our company and factory.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the
cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T
in advance ,balance before shippment. Payment
ways are : T/T, Western Union, Paypal, Alipay.
Q:What’s the shipping way?
A: For small packages, we will choose the door to door express, we
cooperated with UPS,DHL,FEDEX,TNT more than 10 ye
ars,we gurantee the shipping cost that we offer to you will be the
most favorable price among so many suppliers in China.
We will send you the tracking number once we got it.
If you have any other question, welcome contact us.
