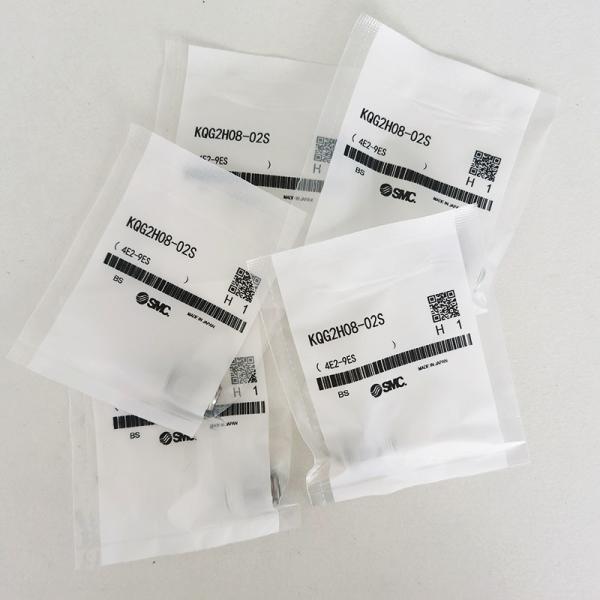

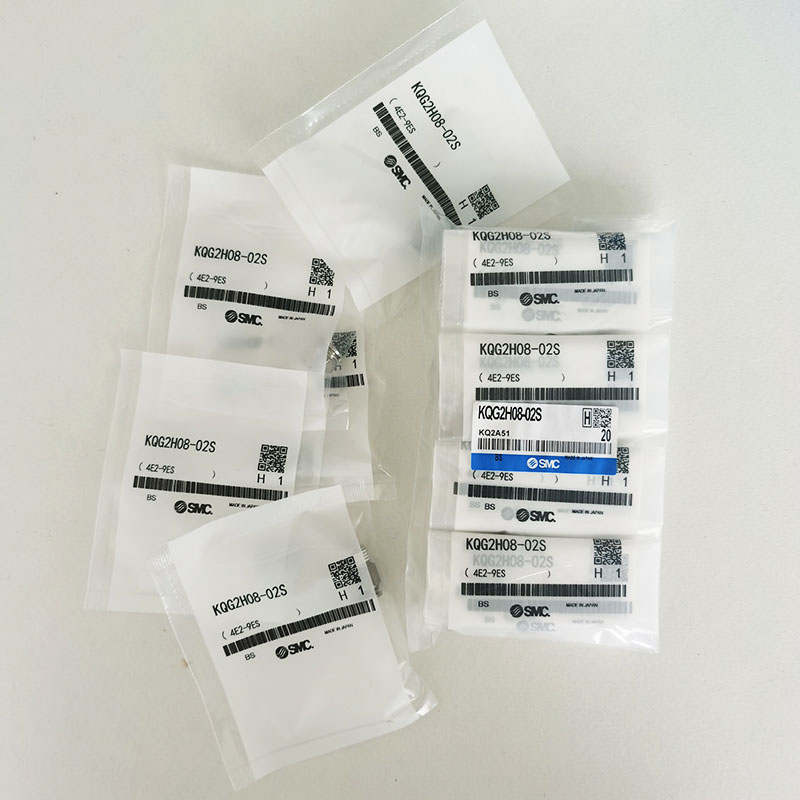

SMC KQG2H08-02S
SUS316 0-1mpa 1/8 Aerospace Industry
Product Description:
Male Connector Push to Connect Fittings with Thread Sealant, 316
Stainless Steel (KQG2H08-02S)
Part Number: KQG2H08-02S
SMC One-Touch fitting.
Features
· Compact with reduced weight.
· Non-grease.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Operating fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials
conform to the tool and packaging container standards test.)
Applications
· Used for piping in one direction from a female thread.
Applicable Tubing:
| Applicable Tubing | Applicable Tubing | FEP, PFA, Nylon, Soft nylon Note 1), Polyurethane, Polyolefin |
| Tubing 0.D. | Ø3.2, Ø4, Ø6, Ø8, Ø10, Ø12, Ø16 |
| Specifications | Fluid Note 3) | Air, Water, Steam Note 2) |
| Operating pressure range | -100 kPa to 1 MPa Note 4) |
| Proof pressure | 3.0 MPa |
| Ambient and fluid temperature Note 5) | - 5 to 150°C (No freezing) Note 4) |
| Lubricant | Grease-free specification |
| Seal on the threads | With sealant |
Temperature
Condition of Mounting
the Inner Sleeve | Tubing | Temperature |
| FEP tubing/TH Series | 80°C or more |
| Super PFA tubing/TL Series | 120°C or more |
| |
Note 1) For soft nylon tubing, water cannot be used.
Note 2) Consult with SMC regarding applicable tube separately.
Note 3) Avoid using in a vacuum holding application such as a leak tester,
since there is leakage.
Note 4) Check the operating pressure range and operating temperature range
of the tubing.
Note 5) It is recommended that you use the inner sleeve in the following
conditions (Except Ø3.2):
●When using at a high temperature.
●When using at a high temperature.
Male Connector: KQG2H |
Applicable
tubing O.D
(mm) | Connection
thread
R, M | Model | H
(Width
across flat) | Note 1)
ØD | L | A* | M | Note 2)
Efective
area (mm²) | Weight |
| ø3.2 | M5 x 0.8 | KQG2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.3 |
| 1/8 | KQG2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 5.7 |
| 1/4 | KQG2H23-02S | 14 | 21 | 16.3 | 16.9 |
| ø4 | M5 x 0.8 | KQG2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5 |
| 1/8 | KQG2H04-01S | 15.3 | 12.2 | 5.6 | 4.7 |
| 1/4 | KQG2H04-02S | 14 | 20.9 | 16.2 | 15.8 |
| ø6 | M5 x 0.8 | KQG2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 7.7 |
| 1/8 | KQG2H06-01S | 18.1 | 15 | 13.1 | 7 |
| 1/4 | KQG2H06-02S | 14 | 20.8 | 16.1 | 14.5 |
| 3/8 | KQG2H06-03S | 17 | 23 | 17.9 | 27.3 |
| ø8 | 1/8 | KQG2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 16.1 | 26.1 | 12.8 |
| 1/4 | KQG2H08-02S | 22.3 | 17.6 | 12.9 |
| 3/8 | KQG2H08-03S | 17 | 23.7 | 18.6 | 24.7 |
| ø10 | 1/8 | KQG2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 18.9 |
| 1/4 | KQG2H10-02S | 27.9 | 23.2 | 41.5 | 21.6 |
| 3/8 | KQG2H10-03S | 23 | 17.9 | 20.6 |
| 1/2 | KQG2H10-04S | 22 | 28.6 | 22.2 | 51.1 |
| ø12 | 1/4 | KQG2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 27.4 |
| 3/8 | KQG2H12-03S | 24.7 | 19.6 | 20.5 |
| 1/2 | KQG2H12-04S | 22 | 28.7 | 22.3 | 44.6 |
| ø16 | 3/8 | KQG2H16-03S | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 46 |
| 1/2 | KQG2H16-04S | 24 | 29.5 | 23.1 | 113 | 37.4 |
