Product Description:
Temperature Range
Room temperature membranes are typically suitable for environments
ranging from -25 ° C to 85 ° C. High temperature membranes can be
used in the temperature range of -25 ° C to 230 ° C.
Lifespan
Generally speaking, the service life of Watson pulse valve
diaphragm can reach 5 years or withstand 1 million operating
cycles.

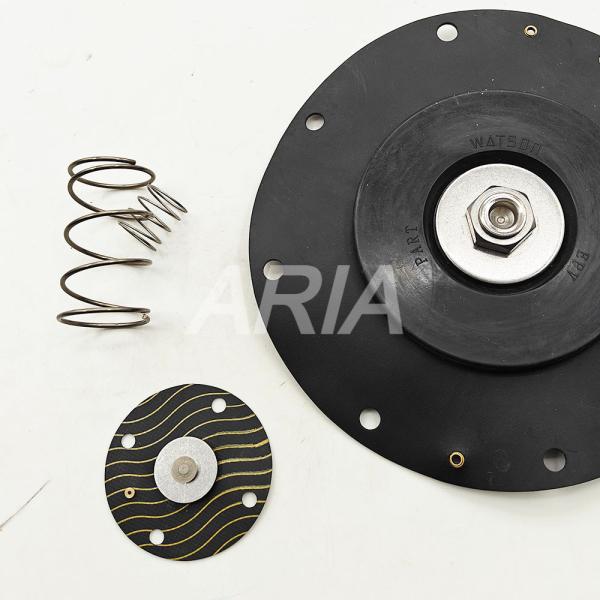

Basic Structure
The diaphragm is usually a high-quality rubber sheet, with rivet
heads installed on it to block compressed air pipelines or valve
outlets. At the same time, there are bolt holes around it for
fixing support, which can divide the pulse valve into two chambers,
front and rear.
Thickness Specifications
There are various thickness specifications, commonly including
0.3mm, 0.6mm, 1.0mm, 1.5mm, etc.
Working Principle Related Characteristics
The diaphragm is equipped with a throttle hole. When the armature
of the electromagnetic pilot head is engaged and the pressure
relief hole is opened, the throttle hole can act as a throttle for
the airflow. When the pressure relief hole is closed, it can
quickly fill the cavity of the pulse valve with pressure gas,
thereby causing the diaphragm to close the channel and stop the
pulse valve from blowing.
Technical Parameters:
| Product Name | Pulse Valve Diaphragm |
| Diaphragm Material | TPE, NBR, EPDM, FKM |
| Port Size | 4'' |
| Brand Name | WATSON |
| Seat Material | Nylon, Rubber, PTFE |
| Color | Black |
Applications:
The Pulse Valve Diaphragm, a crucial component in pulse valve
systems, is a versatile product offered by WATSON. With CE
certification, a minimum order quantity of 1, and packaging in
cartons, this diaphragm ensures reliable performance in various
industrial applications. The diaphragm repair kit includes
materials such as TPE, NBR, EPDM, and FKM, allowing for flexibility
and compatibility with different working environments. The seat
materials options of nylon, rubber, and PTFE further enhance the
product's adaptability.
The Pulse Valve Diaphragm by WATSON is suitable for a wide range of
product application occasions and scenarios. It is ideal for
industries requiring efficient dust removal, such as cement plants,
power plants, and steel mills. The diaphragm's high-quality
construction and precision engineering make it a dependable choice
for demanding environments where pulse valves are essential for
optimal operation.
With a supply ability of 5000 pieces per month, customers can rely
on WATSON for consistent availability of the Pulse Valve Diaphragm.
The price is negotiable, making it a cost-effective solution for
businesses of all sizes. The flexible payment terms of T/T, Western
Union, and Paypal offer convenience and ease of transaction.
The 3'' port size of the diaphragm caters to various valve
configurations, ensuring compatibility with different systems.
Additionally, the quick delivery time of 1-7 workdays after payment
enables customers to minimize downtime and maximize productivity.
Whether for routine maintenance or emergency replacements, the
Pulse Valve Diaphragm from WATSON is a reliable choice for
efficient and effective operation.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm designed for pulse valves,
ensuring efficient operation and longevity.

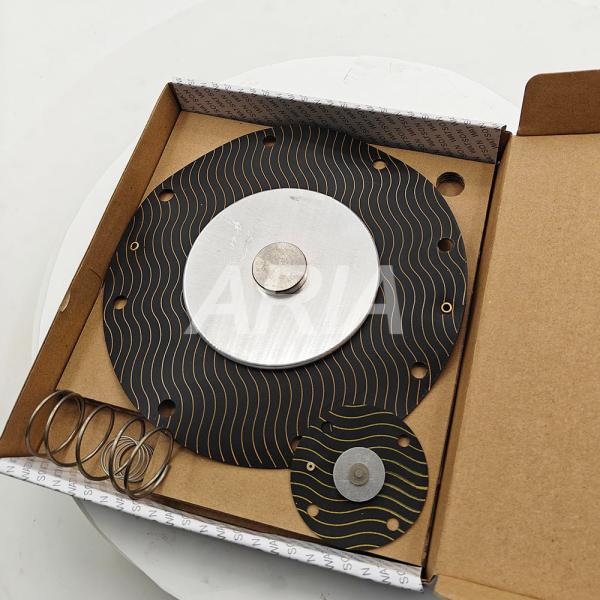

Package Contents:
- 1 Pulse Valve Diaphragm
- Installation Instructions
Shipping Information:
- Shipping Method: Standard Shipping
- Shipping Time: 3-5 business days
- Shipping Cost: $5.99
