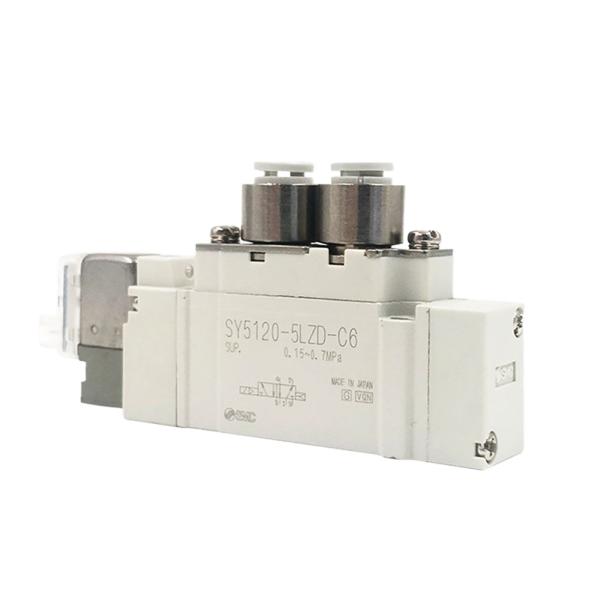

Product Description:

Series
There are series such as SY3000, SY5000, SY7000, and SY9000. Different series vary in aspects like flow rate.

Function
Typically, it is a 2 - position single - solenoid - controlled valve.

Rated Voltage
Commonly DC24V, and other specifications like DC12V are also available.

Wire Lead - out Method
There are various methods, including DIN - type socket, L - type socket wire lead - out (with a length of 300mm), etc.

A·B Pipe Connection Caliber
It includes multiple specifications such as 1/8, Φ8 quick - connect fitting, 1/4, etc.

Thread Type
Generally, it is Rc.

Flow Characteristics
The flow rate increases while the valve size decreases, which is more energy - efficient and space - saving. For example, the C value of the SY3000 series is 1.6dm³/(s·bar), the SY5000 series has a C value of 3.6dm³/(s·bar), and the SY7000 series has a C value of 5.9dm³/(s·bar).

Power Consumption
There are two cases: 0.1W (with power - saving circuit) and 0.35W (standard).

Response Time
It is relatively fast. For some models, the response time of SY5120 is 19ms, and that of SY7120 is 38ms.

Operating Pressure
The working pressure generally ranges from 0.15 to 0.7MPa, and the maximum operating pressure can reach 1MPa.

Action Frequency
The maximum action frequency is 5Hz.

Service Life
It has a long service life. The gap - sealed type can reach 200 million cycles, and the elastic - sealed type can reach 70 million cycles.

Sealing Method
It uses elastic sealing or gap sealing.

Pilot Method
Internal pilot type.

Valve Body Form
Non - insert type.

Piping Type
Direct - piping type.

Manifold Type
There are numerous options for the manifold type, including aluminum valve bodies, DIN rails, and combined manifolds. The manifold-type models are SS5Y3, SS5Y5, SS5Y7, and SS5Y9.

Good Water Resistance
It can adapt to a certain degree of humid environment.

Centralized Exhaust Structure
The pilot valve and the main valve adopt a centralized exhaust structure, which can avoid the discharge of oil mist and noise from the exhaust port of the pilot valve.

Aesthetic Appearance
The color tone is a soft white.

Single - body Types
The single - body type has direct - piping and base - piping models. A 4 - position double 3 - way valve is provided, with good visibility.

Improved Pilot Valve Strength
The cover of the pilot valve is made of stainless steel, and the mounting screws are changed from M1.7 to M2, improving the strength.

Protection Structure
It reaches the IP65 or IP67 protection level, and can adapt to certain harsh environments.

Environmental Temperature and Fluid Temperature
Generally, it is -10 - 50°C.

It can be applied in multiple fields such as food/agricultural products, biological industries, energy, chemical engineering, automotive and its parts, and electrical industries. It is also suitable for industrial automation scenarios, such as factory production lines and robotic arm control. Moreover, it is applicable to special processes that require high - precision flow or pressure adjustment, like laser cutting, plastic bottle blowing, and spraying. It also has applications in medical and laboratory equipment, supporting the precise control of inert gases and corrosive media.

Technical Parameters:

Applications:

The SY series of SMC solenoid valves are designed for single-use applications, making them ideal for various industries and scenarios where precise control of liquids or gases is required. These 5-way solenoid valves offer exceptional pressure ratings ranging from 0.15 to 0.7 MPa, ensuring efficient operation in different systems.

Whether you need to control the flow of air, water, or other fluids, SMC Solenoid Valves are a perfect choice. With a minimum order quantity of 1 and flexible pricing options, these valves can accommodate both small-scale and large-scale projects.

SMC Solenoid Valves have a quick delivery time of 1-7 work days after payment, allowing you to meet tight project deadlines. The payment terms accepted include T/T, Western Union, and Paypal, providing convenience and flexibility for customers.

Packaged in durable cartons or customized as per client requirements, these solenoid valves are protected during transit to ensure their safe arrival. With a supply ability of 5000 pieces per month, you can rely on SMC Solenoid Valves to meet your ongoing operational needs.

Available in DC24V and DC12V voltage options, SMC Solenoid Valves offer compatibility with different power sources, enhancing their versatility and usability in various systems. The 5-port design of these solenoid valves enables efficient control of fluid flow, making them suitable for a wide range of industrial and commercial applications.

Packing and Shipping:

Product Packaging for SMC Solenoid Valves:

The SMC Solenoid Valves are carefully packaged in a sturdy cardboard box to ensure safe delivery. Each valve is wrapped in protective bubble wrap to prevent any damage during transportation.

Shipping Information:

Orders for SMC Solenoid Valves are typically shipped within 1-2 business days after payment confirmation. We partner with reliable shipping carriers to ensure timely delivery to our customers. Tracking information will be provided once the order has been dispatched.
