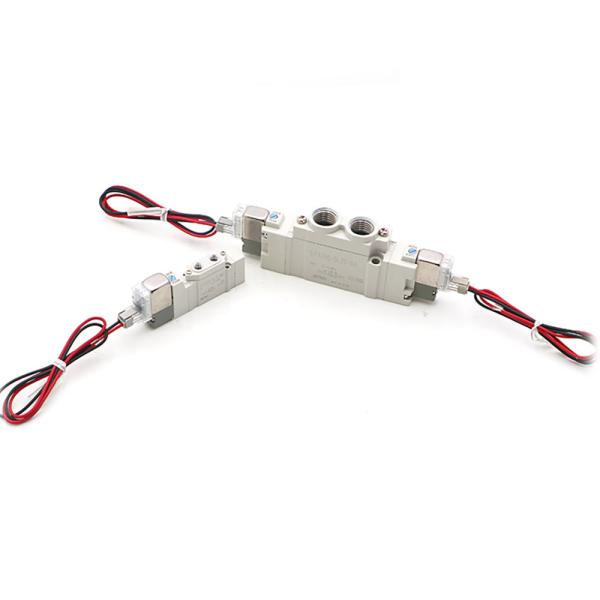

Product Description:
Specification Parameters
Series:
There are series such as SY3000, SY5000, SY7000, and SY9000.
Different series vary in aspects like flow rate.
Function:
Typically, it is a 2-position single-solenoid-controlled valve.
Rated Voltage:
Commonly DC24V, and other specifications like DC12V are also
available.
Wire Lead-out Method:
There are various methods, including DIN-type socket, L-type socket
wire lead-out (with a length of 300mm), etc.
A·B Pipe Connection Caliber:
It includes multiple specifications such as 1/8, Φ8 quick-connect
fitting, 1/4, etc.
Thread Type:
Generally, it is Rc.
Performance Characteristics
Flow Characteristics:
The flow rate increases while the valve size decreases, which is
more energy-efficient and space-saving. For example, the C value of
the SY3000 series is 1.6dm³/(s·bar), the SY5000 series has a C
value of 3.6dm³/(s·bar), and the SY7000 series has a C value of
5.9dm³/(s·bar).
Power Consumption:
There are two cases: 0.1W (with power-saving circuit) and 0.35W
(standard).
Response Time:
It is relatively fast. For some models, the response time of SY5120
is 19ms, and that of SY7120 is 38ms.
Operating Pressure:
The working pressure generally ranges from 0.15 to 0.7MPa, and the
maximum operating pressure can reach 1MPa.
Action Frequency:
The maximum action frequency is 5Hz.
Service Life:
It has a long service life. The gap-sealed type can reach 200
million cycles, and the elastic-sealed type can reach 70 million
cycles.
Structural Features
Sealing Method:
It uses elastic sealing or gap sealing.
Pilot Method:
Internal pilot type.
Valve Body Form:
Non-insert type.
Piping Type:
Direct-piping type.
Manifold Type:
There are numerous options for the manifold type, including
aluminum valve bodies, DIN rails, and combined manifolds. The
manifold-type models are SS5Y3, SS5Y5, SS5Y7, and SS5Y9.
Other Features
Good Water Resistance:
It can adapt to a certain degree of humid environment.
Centralized Exhaust Structure:
The pilot valve and the main valve adopt a centralized exhaust
structure, which can avoid the discharge of oil mist and noise from
the exhaust port of the pilot valve.
Aesthetic Appearance:
The color tone is a soft white.
Single-body Types:
The single-body type has direct-piping and base-piping models. A
4-position double 3-way valve is provided, with good visibility.
Improved Pilot Valve Strength:
The cover of the pilot valve is made of stainless steel, and the
mounting screws are changed from M1.7 to M2, thus improving the
strength.
Environmental Adaptability
Protection Structure:
It reaches the IP65 or IP67 protection level, and can adapt to
certain harsh environments.
Environmental Temperature and Fluid Temperature:
Generally, it is -10-50°C.
Application Fields
It can be applied in multiple fields such as food/agricultural
products, biological industries, energy, chemical engineering,
automotive and its parts, and electrical industries. It is also
suitable for industrial automation scenarios, such as factory
production lines and robotic arm control. Moreover, it is
applicable to special processes that require high-precision flow or
pressure adjustment, like laser cutting, plastic bottle blowing,
and spraying. It also has applications in medical and laboratory
equipment, supporting the precise control of inert gases and
corrosive media.
Technical Parameters:
| Pressure Rating(MPa) | 0.15 To 0.7 |
| Voltage | DC24V DC12V |
| Number of Ports | 5-Port Valve |
| Type | Solenoid Valves |
| Application | Single Use |
| Seal Type | Soft Seal |
| Model | voltage | Model | voltage |
| SY3120-5LZD-M5 | DC24V | SY5120-5LZD-C6 | DC24V |
| SY3120-6LZD-M5 | DC12V | SY5120-6LZD-C6 | DC12V |
| SY3120-5LZD-C4 | DC24V | SY5120-5LZD-C8 | DC24V |
| SY3120-6LZD-C4 | DC12V | SY5120-6LZD-C8 | DC12V |
| SY3120-5LZD-C6 | DC24V | SY5220-5LZD-01 | DC24V |
| SY3120-6LZD-C6 | DC12V | SY5220-6LZD-01 | DC12V |
| SY3120-5LZD-C8 | DC24V | SY5220-5LZD-C4 | DC24V |
| SY3120-6LZD-C8 | DC12V | SY5220-6LZD-C4 | DC12V |
| SY3220-5LZD-M5 | DC24V | SY5220-5LZD-C6 | DC24V |
| SY3220-6LZD-M5 | DC12V | SY5220-6LZD-C6 | DC12V |
| SY3220-5LZD-C4 | DC24V | SY5220-5LZD-C8 | DC24V |
| SY3220-6LZD-C4 | DC12V | SY5220-6LZD-C8 | DC12V |
| SY3220-5LZD-C6 | DC24V | SY5320-5LZD-01 | DC24V |
| SY3220-6LZD-C6 | DC12V | SY5320-6LZD-01 | DC12V |
| SY3220-5LZD-C8 | DC24V | SY5320-5LZD-C4 | DC24V |
| SY3220-6LZD-C8 | DC12V | SY5320-6LZD-C4 | DC12V |
| SY3320-5LZD-M5 | DC24V | SY5320-5LZD-C6 | DC24V |
| SY3320-6LZD-M5 | DC12V | SY5320-6LZD-C6 | DC12V |
| SY3320-5LZD-C4 | DC24V | SY5320-5LZD-C8 | DC24V |
| SY3320-6LZD-C4 | DC12V | SY5320-6LZD-C8 | DC12V |
| SY3320-5LZD-C6 | DC24V | SY5420-5LZD-01 | DC24V |
| SY3320-6LZD-C6 | DC12V | SY5420-6LZD-01 | DC12V |
| SY3320-5LZD-C8 | DC24V | SY5420-5LZD-C4 | DC24V |
| SY3320-6LZD-C8 | DC12V | SY5420-6LZD-C4 | DC12V |
| SY3420-5LZD-M5 | DC24V | SY5420-5LZD-C6 | DC24V |
| SY3420-6LZD-M5 | DC12V | SY5420-6LZD-C6 | DC12V |
| SY3420-5LZD-C4 | DC24V | SY5420-5LZD-C8 | DC24V |
| SY3420-6LZD-C4 | DC12V | SY5420-6LZD-C8 | DC12V |
| SY3420-5LZD-C6 | DC24V | SY7120-5LZD-02 | DC24V |
| SY3420-6LZD-C6 | DC12V | SY7120-5LZD-C4 | DC24V |
| SY3420-5LZD-C8 | DC24V | SY7120-5LZD-C6 | DC24V |
| SY3420-6LZD-C8 | DC12V | SY7120-5LZD-C8 | DC24V |
| SY5120-5LZD-01 | DC24V | SY7220-5LZD-02 | DC24V |
| SY5120-6LZD-01 | DC12V | SY7220-5LZD-C4 | DC24V |
| SY5120-5LZD-C4 | DC24V | SY7220-5LZD-C6 | DC24V |
| SY5120-6LZD-C4 | DC12V | SY7220-5LZD-C8 | DC24V |
Applications:
SMC Solenoid Valves are versatile products suitable for a wide
range of application occasions and scenarios. With the brand name
SMC, these solenoid valves originate from China and are certified
with CE, ensuring high-quality standards. The minimum order
quantity for SMC Solenoid Valves is 1, and the pricing is open for
negotiation. The packaging details include carton packaging or as
per the clients' requirements, providing flexibility in delivery.
The delivery time for SMC Solenoid Valves is quick, ranging from 1
to 7 working days after payment. Customers can choose from various
payment terms such as T/T, Western Union, and Paypal, making
transactions convenient. The supply ability of SMC Solenoid Valves
is impressive, with 5000 pieces available per month, ensuring a
steady stock for customers.
These solenoid valves belong to the SY series and are designed to
operate with a voltage of DC24V or DC12V. The seal type used in SMC
Solenoid Valves is a soft seal, ensuring reliable performance. The
pressure rating of these valves ranges from 0.15 to 0.7 MPa, making
them suitable for a variety of pressure requirements.
The application of SMC Solenoid Valves is ideal for single-use
scenarios, making them perfect for different industries and
systems. Whether it's in manufacturing, automation, or other
applications, SMC Solenoid Valves provide efficient control of
fluid flow.
Packing and Shipping:
Product Name: SMC Solenoid Valves
Description: High-quality solenoid valves manufactured by SMC,
known for their reliability and performance.
Features: - Durable construction - Easy installation - Efficient
operation
Package Includes: - SMC Solenoid Valve(s) - Product Manual
Shipping Information: - Shipping method: Standard - Estimated
delivery time: 3-5 business days - Shipping carrier: UPS
