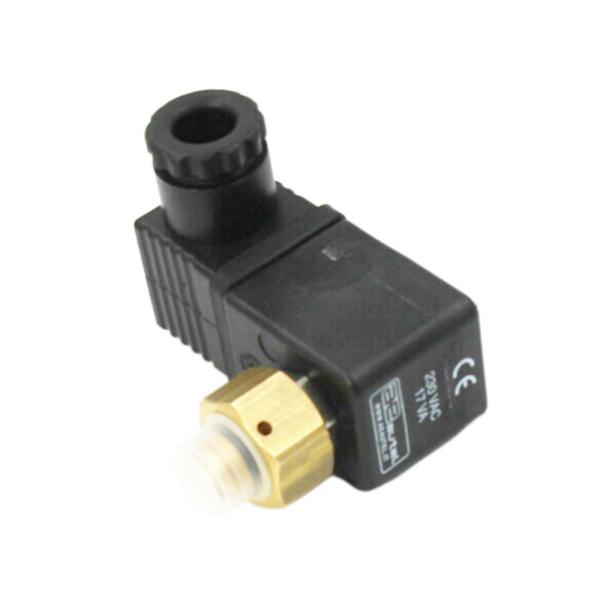

    AUTEL Ultra Electromagnetic Pulse Valve Coil Pilot Head SYS10 230VAC 17VA

    Ask Lasest Price
    Brand Name : Autel
    Certification : CE
    Price : Negotiation
    Delivery Time : 1-7Work Days After Payment
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 pieces/1Month
    Model Number : SYS10
    • Product Details
    • Company Profile

    AUTEL Ultra Electromagnetic Pulse Valve Coil Pilot Head SYS10 230VAC 17VA

    Product Description:

    Material Properties
    Main Materials: Typically made of high-quality elastomers (e.g., natural rubber, synthetic rubber like EPDM, NBR, or silicone), often combined with reinforcing fabrics (e.g., nylon or polyester) for enhanced durability.
    Chemical Resistance: Resistant to common industrial gases, dust, and moderate chemical exposure, depending on the specific material grade.
    Temperature Tolerance: Capable of operating within a wide temperature range (e.g., -20°C to 80°C for standard types; higher-temperature variants may withstand up to 150°C or more).

    Mechanical Properties
    Flexibility & Elasticity: Exhibits excellent resilience to repeated flexing, ensuring long service life under cyclic pneumatic actuation.
    Tensile Strength: High tensile and tear resistance to withstand pressure fluctuations in pulse jet cleaning systems.
    Sealing Performance: Precise geometry and material elasticity ensure airtight sealing when the valve is closed, minimizing leakage.

    Structural Properties
    Thickness: Customizable thickness (e.g., 1-3 mm) to balance flexibility and pressure resistance for different valve models.
    Shape & Design: Matched to the specific pulse valve’s structure, often featuring a domed or flat profile with reinforced edges for secure clamping.
    Precision Machining: Uniform surface finish and dimensional accuracy to ensure consistent performance across batches.

    Operational Properties
    Response Speed: Rapid opening and closing under pneumatic pressure, enabling short pulse durations (millisecond-level response).
    Cycle Life: Capable of withstanding millions of actuation cycles without significant degradation, depending on operating conditions.
    Compatibility: Designed to fit Autel’s range of pulse valves, ensuring interchangeability and easy maintenance.

    Environmental Properties
    Abrasion Resistance: Resistant to wear from particulate matter in dusty environments (common in industrial filtration systems).
    Weatherability: Stable performance in humid, dry, or moderately corrosive atmospheres, suitable for indoor and outdoor applications.

    These properties collectively enable Autel pulse valve diaphragms to deliver reliable performance in industrial dust collection, pneumatic conveying, and other pulse jet cleaning systems.

    Technical Parameters:

    Screws304 Stainless Steel
    MediumAir
    MaterialNitrile
    Working Pressure0.4~0.8 MPa
    Working Temperature-10~80℃
    ColorWhite

    Applications:

    Autel Pulse Valve Diaphragm is a high-quality product that can be used in various industrial applications due to its durability and reliability. The product is designed and manufactured in China, ensuring high standards of quality and performance. With CE certification, customers can trust the product's safety and compliance with industry standards.

    The Pulse Valve Diaphragm is suitable for a wide range of occasions and scenarios, making it a versatile product for different industries. It can be used in pneumatic systems, dust collector systems, and other air purification applications. The Shockwave Diaphragm Kit is ideal for maintenance purposes, ensuring the smooth operation of pulse valves and extending their lifespan.

    Customers can order the Autel Pulse Valve Diaphragm with a minimum quantity of 1, making it convenient for both small-scale and large-scale users. The price is negotiable, providing flexibility for different budget requirements. The product is packaged in cartons for safe transportation and delivery.

    With a delivery time of 1-7 work days after payment, customers can receive their orders promptly. Payment terms include T/T, Western Union, and Paypal, offering convenience and security for transactions. The supply ability of 5000 pieces per month ensures a steady availability of the product for customers.

    The Pulse Valve Diaphragm is equipped with 304 stainless steel screws, enhancing its durability and resistance to corrosion. The working pressure of 0.4~0.8 MPa makes it suitable for various air pressure systems. The white color and nitrile material of the diaphragm provide a clean and professional appearance, suitable for different industrial settings.

    In conclusion, the Autel Pulse Valve Diaphragm is a reliable and versatile product that caters to the diverse needs of industrial applications. Whether for regular maintenance or new installations, the Shockwave Diaphragm Kit offers a practical solution for ensuring the efficient operation of pulse valves.

    Packing and Shipping:

    Product Name: Pulse Valve Diaphragm

    Description: High-quality replacement diaphragm for pulse valves.

    Materials: Durable rubber material

    Package Includes: 1 x Pulse Valve Diaphragm

    Shipping: This product will be carefully packaged to ensure safe delivery. Shipping times may vary depending on location.
