Product Description:

Series
There are series such as SY3000, SY5000, SY7000, and SY9000. Different series vary in aspects like flow rate.

Function
Typically, it is a 2 - position single - solenoid - controlled valve.

Rated Voltage
Commonly DC24V, and other specifications like DC12V are also available.

Wire Lead - out Method
There are various methods, including DIN - type socket, L - type socket wire lead - out (with a length of 300mm), etc.

A·B Pipe Connection Caliber
It includes multiple specifications such as 1/8, Φ8 quick - connect fitting, 1/4, etc.

Thread Type
Generally, it is Rc.

Flow Characteristics
The flow rate increases while the valve size decreases, which is more energy - efficient and space - saving. For example, the C value of the SY3000 series is 1.6dm³/(s·bar), the SY5000 series has a C value of 3.6dm³/(s·bar), and the SY7000 series has a C value of 5.9dm³/(s·bar).

Power Consumption
There are two cases: 0.1W (with power - saving circuit) and 0.35W (standard).

Response Time

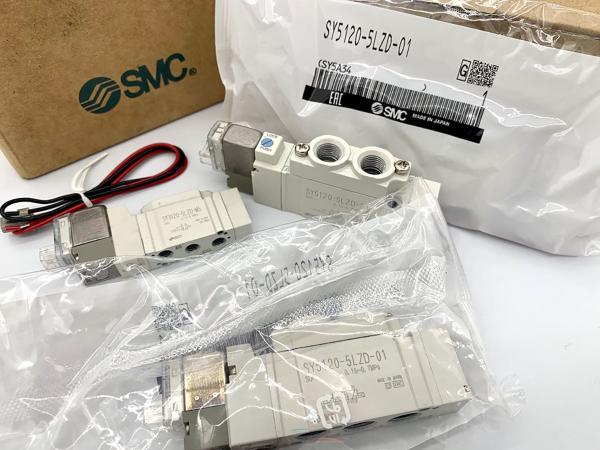

It is relatively fast. For some models, the response time of SY5120 is 19ms, and that of SY7120 is 38ms.

Operating Pressure
The working pressure generally ranges from 0.15 to 0.7MPa, and the maximum operating pressure can reach 1MPa.

Action Frequency
The maximum action frequency is 5Hz.

Service Life
It has a long service life. The gap - sealed type can reach 200 million cycles, and the elastic - sealed type can reach 70 million cycles.

Sealing Method
It uses elastic sealing or gap sealing.

Pilot Method
Internal pilot type.

Valve Body Form
Non - insert type.

Piping Type
Direct - piping type.

Manifold Type

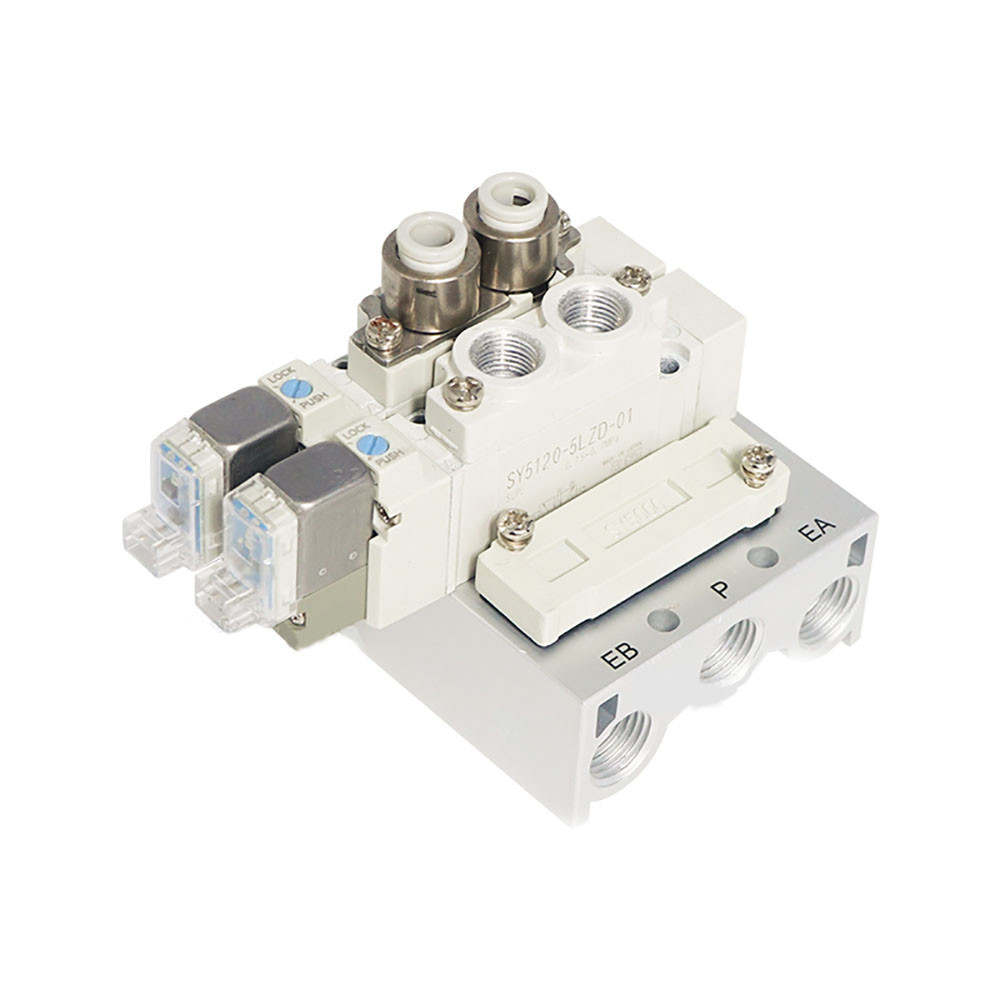

There are numerous options for the manifold type, including aluminum valve bodies, DIN rails, and combined manifolds. The manifold - type models are SS5Y3, SS5Y5, SS5Y7, and SS5Y9.

Good Water Resistance
It can adapt to a certain degree of humid environment.

Centralized Exhaust Structure
The pilot valve and the main valve adopt a centralized exhaust structure, which can avoid the discharge of oil mist and noise from the exhaust port of the pilot valve.

Aesthetic Appearance
The color tone is a soft white.

Single - body Types
The single - body type has direct - piping and base - piping models. A 4 - position double 3 - way valve is provided, with good visibility.

Improved Pilot Valve Strength
The cover of the pilot valve is made of stainless steel, and the mounting screws are changed from M1.7 to M2, thus improving the strength.

Protection Structure
It reaches the IP65 or IP67 protection level, and can adapt to certain harsh environments.

Environmental Temperature and Fluid Temperature
Generally, it is - 10 - 50°C.

It can be applied in multiple fields such as food/agricultural products, biological industries, energy, chemical engineering, automotive and its parts, and electrical industries. It is also suitable for industrial automation scenarios, such as factory production lines and robotic arm control. Moreover, it is applicable to special processes that require high - precision flow or pressure adjustment, like laser cutting, plastic bottle blowing, and spraying. It also has applications in medical and laboratory equipment, supporting the precise control of inert gases and corrosive media.

Technical Parameters:

Applications:

SMC Solenoid Valves are versatile and reliable products suitable for a wide range of application occasions and scenarios. With the brand name SMC, these solenoid valves originate from China and come with CE certification, ensuring quality and performance.

These 5-way solenoid valves have a minimum order quantity of 1, making them ideal for both small-scale and large-scale usage. The pricing is negotiable, and the packaging details include carton packaging or as per the clients' requirements.

With a quick delivery time of 1-7 working days after payment, these solenoid valves offer convenience and efficiency. The payment terms accepted for these valves include T/T, Western Union, and Paypal, providing flexibility to customers.

SMC Solenoid Valves have a supply ability of 5000 pieces per month, ensuring a steady availability for various industrial needs. The soft seal type and voltage options of DC24V and DC12V cater to different operational requirements.

These solenoid valves have a pressure rating ranging from 0.15 to 0.7 MPa, making them suitable for applications that require precise pressure control. The single-use application feature enhances their usability in different settings.

Whether it's in manufacturing plants, automation systems, or fluid control systems, SMC Solenoid Valves find their place in ensuring smooth operations and reliable performance. The 5-port valve configuration offers flexibility in connecting multiple components or devices.
