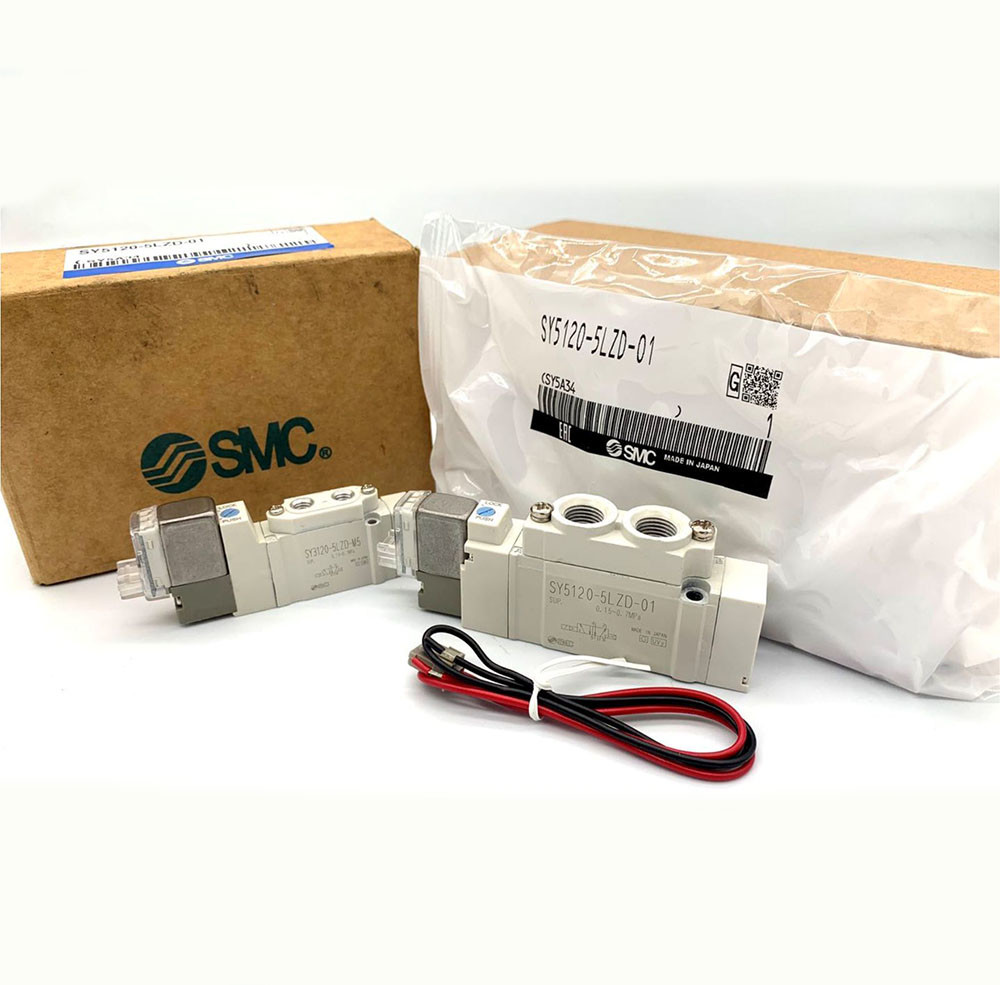

Product Description:

Specification Parameters

Series:
There are series such as SY3000, SY5000, SY7000, and SY9000. Different series vary in aspects like flow rate.
Function:
Typically, it is a 2 - position single - solenoid - controlled valve.
Rated Voltage:
Commonly DC24V, and other specifications like DC12V are also available.
Wire Lead - out Method:
There are various methods, including DIN - type socket, L - type socket wire lead - out (with a length of 300mm), etc.
A·B Pipe Connection Caliber:
It includes multiple specifications such as 1/8, Φ8 quick - connect fitting, 1/4, etc.
Thread Type:
Generally, it is Rc.

Performance Characteristics

Flow Characteristics:
The flow rate increases while the valve size decreases, which is more energy - efficient and space - saving. For example, the C value of the SY3000 series is 1.6dm³/(s·bar), the SY5000 series has a C value of 3.6dm³/(s·bar), and the SY7000 series has a C value of 5.9dm³/(s·bar).
Power Consumption:
There are two cases: 0.1W (with power - saving circuit) and 0.35W (standard).
Response Time:
It is relatively fast. For some models, the response time of SY5120 is 19ms, and that of SY7120 is 38ms.
Operating Pressure:
The working pressure generally ranges from 0.15 to 0.7MPa, and the maximum operating pressure can reach 1MPa.
Action Frequency:
The maximum action frequency is 5Hz.
Service Life:
It has a long service life. The gap - sealed type can reach 200 million cycles, and the elastic - sealed type can reach 70 million cycles.

Structural Features

Sealing Method:
It uses elastic sealing or gap sealing.
Pilot Method:
Internal pilot type.
Valve Body Form:
Non - insert type.
Piping Type:
Direct - piping type.
Manifold Type:
There are numerous options for the manifold type, including aluminum valve bodies, DIN rails, and combined manifolds. The manifold - type models are SS5Y3, SS5Y5, SS5Y7, and SS5Y9.

Other Features

Good Water Resistance:
It can adapt to a certain degree of humid environment.
Centralized Exhaust Structure:
The pilot valve and the main valve adopt a centralized exhaust structure, which can avoid the discharge of oil mist and noise from the exhaust port of the pilot valve.
Aesthetic Appearance:
The color tone is a soft white.
Single - body Types:
The single - body type has direct - piping and base - piping models. A 4 - position double 3 - way valve is provided, with good visibility.
Improved Pilot Valve Strength:
The cover of the pilot valve is made of stainless steel, and the mounting screws are changed from M1.7 to M2, thus improving the strength.

Environmental Adaptability

Protection Structure:
It reaches the IP65 or IP67 protection level, and can adapt to certain harsh environments.
Environmental Temperature and Fluid Temperature:
Generally, it is - 10 - 50°C.

Application Fields

It can be applied in multiple fields such as food/agricultural products, biological industries, energy, chemical engineering, automotive and its parts, and electrical industries. It is also suitable for industrial automation scenarios, such as factory production lines and robotic arm control. Moreover, it is applicable to special processes that require high - precision flow or pressure adjustment, like laser cutting, plastic bottle blowing, and spraying. It also has applications in medical and laboratory equipment, supporting the precise control of inert gases and corrosive media.

Technical Parameters:

Applications:

The SMC Solenoid Valves, specifically the SY series 5-way solenoid valve, is a versatile product suitable for a wide range of application occasions and scenarios. With the brand name SMC and originating from China, this product boasts of CE certification, ensuring its quality and reliability.

Due to its design and features, the SY series 5-way solenoid valve is ideal for single-use applications where precise control of fluids or gases is required. The soft seal ensures a tight and secure fit, making it suitable for various industrial settings.

One of the key attributes of the SMC Solenoid Valves is its pressure rating of 0.15 to 0.7 MPa, providing flexibility for different operating conditions. The 5-port valve configuration allows for efficient flow control and distribution, making it a valuable component in fluid handling systems.

Customers can benefit from the flexibility offered by the SMC Solenoid Valves in terms of order quantity, with a minimum order of just 1 piece. The pricing is negotiable, and the packaging details can be customized to meet the specific requirements of clients.

With a delivery time of 1-7 work days after payment, customers can rely on the prompt availability of the SY series 5-way solenoid valve when needed. The payment terms accepted include T/T, Western Union, and Paypal, providing convenience and options for customers.

Furthermore, the SMC Solenoid Valves have a supply ability of 5000 pieces per month, ensuring a steady availability for high-volume requirements. The voltage options of DC24V and DC12V cater to different power supply needs, adding to the versatility of the product.

Packing and Shipping:

Product Name: SMC Solenoid Valves

Description: High-quality solenoid valves manufactured by SMC, known for their reliability and durability.

Package Contents: Solenoid valve, user manual, installation accessories

Shipping Method: Standard shipping

Shipping Cost: Calculated at checkout
