Product Description:
Material Properties
Common Materials:
- Rubber Types: Nitrile rubber (NBR), fluorocarbon rubber (FKM),
ethylene propylene diene monomer (EPDM), etc., offering oil
resistance, corrosion resistance, and high-temperature tolerance.
- Polyurethane (PU): High wear resistance, suitable for
high-frequency operation.
- PTFE (Polytetrafluoroethylene): Chemically inert, resistant to
strong acids and alkalis, ideal for extreme corrosive environments.
Selection Criteria: Choose based on the medium (e.g., air, water, oil, chemical
gases), temperature range (-40°C to 200°C), and pressure
conditions.
Physical & Mechanical Properties
Elasticity & Flexibility: Ensures fast response and sealing, minimizing hysteresis.
Fatigue Resistance: Withstands millions of cycles in high-frequency switching.
Wear Resistance: Reduces friction-induced wear, extending lifespan.
Tear Resistance: Prevents damage during installation or high-pressure shocks.
Structural Design
Single/Multi-Layer Construction: Multi-layer composite diaphragms (e.g., rubber + fiber
reinforcement) enhance pressure resistance.
Shape Compatibility: Matches valve body structure for proper sealing (e.g., flat or
corrugated designs).
Thickness: Typically 0.2–1 mm, affecting flexibility and durability.
Environmental Adaptability
Temperature Range: Varies by material; standard range is -30°C to 150°C, while
specialty materials (e.g., FKM) can withstand up to 200°C.
Pressure Range: Generally 0.1–1 MPa; high-pressure models require reinforced
designs.
Media Compatibility: Resistant to compressed air, steam, oil mist, or chemicals (e.g.,
ASCO 327 series diaphragms suit multiple fluids).
Lifespan & Reliability
Service Life: High-quality diaphragms last 1–5 million cycles under standard
conditions.
Failure Modes: Common issues include cracking, deformation, or seal failure due
to aging, overpressure, or chemical corrosion.
Applications
Typical Uses: Dust removal systems (e.g., bag filters), pneumatic control
systems, industrial automation.
Model Examples: ASCO 210 (general-purpose), ASCO 327
(high-pressure/corrosion-resistant). Note: Diaphragms may not be
interchangeable across models.
Maintenance & Replacement
Replacement Interval: Regular inspections (e.g., annually or per million cycles);
replace if hardening or cracks appear.
Installation Notes: Avoid twisting or overstretching; ensure sealing surfaces are
clean.
Overall Dimension of SCG353A047 SCG353A065 Diaphragm Repair Kit:

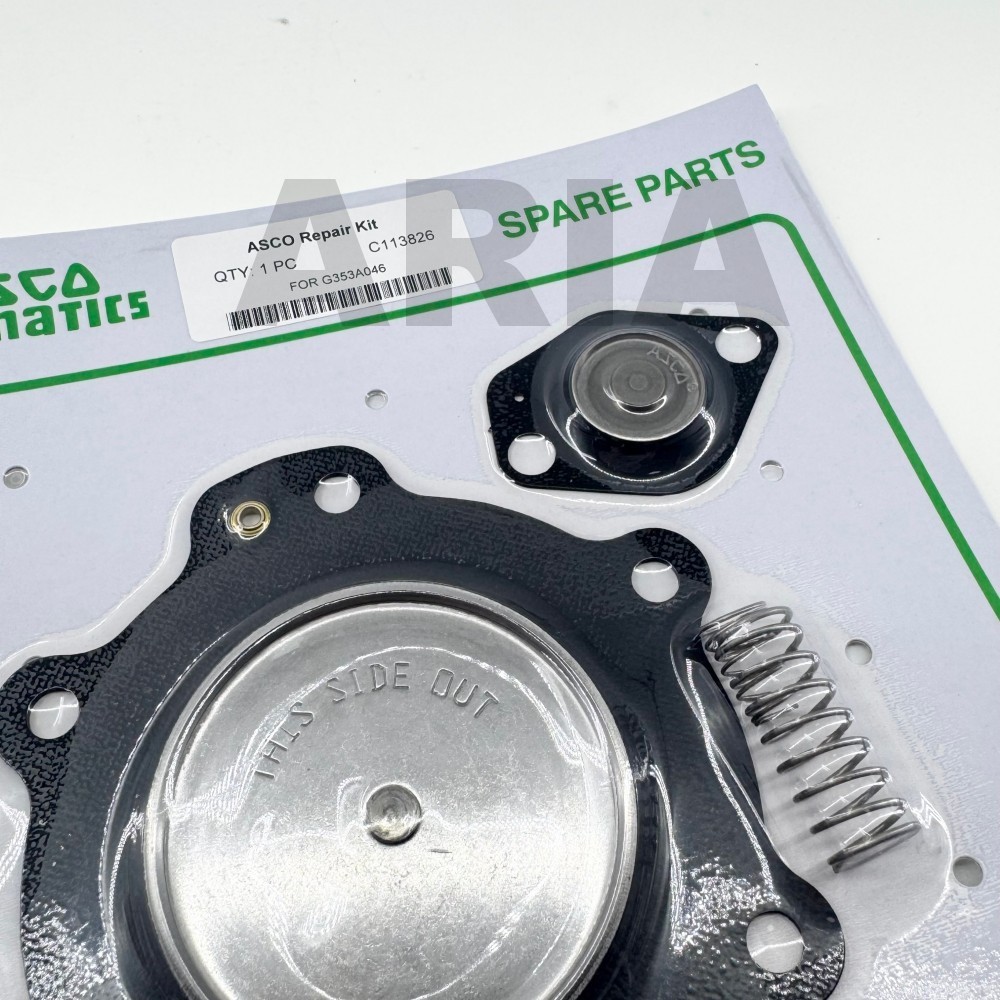

Details of C113825 C113826 C113827 ASCO Type Diaphragm Repair Kit:
Available Models of ASCO Type Diaphragm Repair Kit:
| | | |
| | | |
|
SCG353A043, SCG353A044, SCG353-052, SCG353-053
| |
| | | |
| | |
| | |
| | |
|
| | |
| |
|
| | |
|
G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053
| |
|
G353A045, G353A046, SCG353A047, SCG353A065
| |
|
| |
Tips: EPDM, Viton All Available. |
Applications:
When it comes to the ASCO Pulse Valve Diaphragm, there are various
product application occasions and scenarios where it excels. Known
for its high quality and reliability, this product is suitable for
a wide range of industrial settings.
One of the key application scenarios for the ASCO Pulse Valve
Diaphragm is in maintenance kits for industrial equipment. The
diaphragm repair accessories provided by ASCO are essential for
ensuring the smooth operation of pulse valves in various machinery.
Manufactured in China, the ASCO Pulse Valve Diaphragm is a
CE-certified product that guarantees top-notch performance. With a
minimum order quantity of 1, customers have the flexibility to
purchase as needed, and the price is open for negotiation to suit
different budgets.
The packaging details for this product include a sturdy carton that
ensures safe delivery to the customer's location. Speaking of
delivery, customers can expect their orders to arrive within 1-7
work days after payment, thanks to ASCO's efficient logistics.
Customers have the convenience of choosing from multiple payment
terms such as T/T, Western Union, and Paypal, making transactions
smooth and hassle-free. With a supply ability of 5000 pieces per
month, ASCO ensures that there is no shortage of this essential
product in the market.
The ASCO Pulse Valve Diaphragm is designed to withstand a working
pressure of 0.4~0.8 MPa, making it suitable for applications
requiring air as the medium. The material used for the diaphragm is
Nitrile/Buna or Viton, known for its durability and longevity.
Available in a sleek black color, the ASCO Pulse Valve Diaphragm
can operate in a wide temperature range from -10 to 70℃ or up to
180℃, making it versatile for various industrial environments.
Packing and Shipping:
Product: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, made of
durable rubber material.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Method: Standard Shipping
Shipping Cost: $5.99
