Product Description:

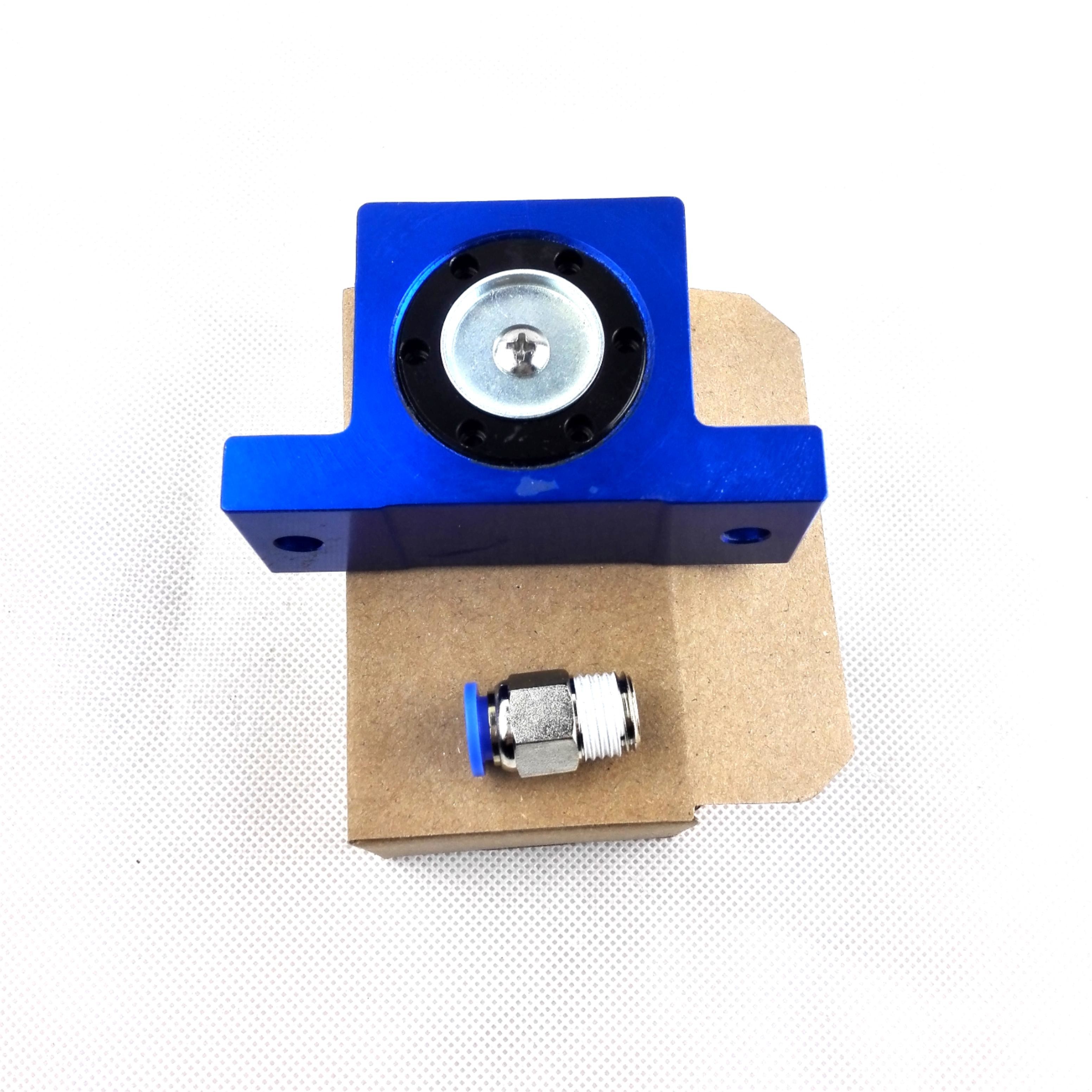

The R series products are designed to be simple yet powerful,
capable of generating high vibration forces. The shell is made of
extruded aluminum and houses a precision steel roller supported by
two high impact resistant plastic cover plates. To make
installation a breeze, the housing is fitted with four mounting
holes -- two horizontal and two vertical -- to make it easy to
mount.
Air enters the shell through one of two inlet holes, driving the
roller and creating centrifugal force, which in turn generates
vibration throughout the body. Once the air has finished its job,
it is discharged from the impact-resistant plastic cover plate --
which is equipped with a silencer.
The R series high-frequency pneumatic roller vibrator is an
appropriate choice for vibrating, filling and transporting flowable
powders. Due to its pneumatic transmission, the vibration frequency
can be easily controlled by adjusting air pressure. This vibrator
can be used for various purposes, such as unloading from hoppers,
mixing of powders, transportation of powdered materials and
compaction treatment of plastic and concrete inside the mold.
Features:
The body of this tool is made of aluminium, which makes it
lightweight and easy to handle.
It features a rotary vibrator that can be adjusted for frequency
and force through the use of air pressure.
With a maximum temperature resistance of up to 140 ℃, it is
suitable for use in a variety of environments.
The force of this tool ranges from 1070 N to 12500 N, providing
ample power for a wide range of applications.
Technical Parameters:
| Product Name | Pneumatic Roller Vibrator |
|---|
| Model No. | R50 |
|---|
| Brand | DKE |
|---|
| Rated Frequency | 10000 To 36000 RPM |
|---|
| Centrifugal Force | 1070 To 12500 N |
|---|
| Working Temperature | Up To 140℃ |
|---|
Applications:
There are various ways in which R series pneumatic vibrators can be
put to use. These include:
- Funnel emptying
- Small particle excitation
- Fine powder movement
- Compaction of plastic and cement in molds
The first application example of R series pneumatic vibrators is
funnel emptying. This activity involves the use of the vibrator to
dislodge materials that have become stuck in the funnel. The
vibrator is attached to the funnel and activated, causing rapid
vibrations that loosen the materials and allow them to flow freely
through the funnel.
The second application is small particle excitation. This is
particularly useful in industries that involve the processing of
small particles such as sugar, salt and other granular materials.
The pneumatic vibrator is used to create vibrations that help to
distribute the particles evenly across the processing equipment,
thereby achieving optimal results.
Fine powder movement is another application of R series pneumatic
vibrators. The vibrator is used to create a vibration that helps to
move and distribute fine powders efficiently. This application is
especially useful in the pharmaceutical, food and chemical
industries where the efficient movement of fine powders is critical
to production processes.
Lastly, the R series pneumatic vibrators are useful in the
compaction of plastic and cement in molds. When plastic or cement
is poured into a mold, it is important to ensure that it is
compacted properly. The pneumatic vibrator is used to create
vibrations that help to settle the material, ensuring that it is
uniform throughout the mold.
Support and Services:
The Pneumatic Vibrators product comes with comprehensive technical
support and services to ensure optimal operation and performance.
Our team of experienced engineers and technicians are available to
provide assistance with installation, operation, and maintenance of
the product.
We also offer customized solutions to meet specific customer
requirements, as well as on-site training and troubleshooting
services to help customers get the most out of their investment.
In addition, our product comes with a warranty and post-warranty
support to ensure long-term reliability and customer satisfaction.
Packing and Shipping:
Product Packaging:
The Pneumatic Vibrators product will be packaged securely in a
sturdy cardboard box with internal cushioning to prevent any damage
during transportation. The box will be labeled with the product
name, model number, and a caution label for handling.
Shipping:
The Pneumatic Vibrators product will be shipped via a reputable
courier service to ensure timely and safe delivery. The shipping
cost will be calculated based on the destination and weight of the
package. Customers will receive a tracking number to monitor the
status of their shipment.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name is DKE.
Q2: Where is this product made?
A2: This product is made in China.
Q3: What certifications does this product have?
A3: This product has CE certification.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity is 1.
Q5: What are the payment terms for this product?
A5: The payment terms are T/T, Western Union, and Paypal. Prices
are negotiable and packaging details will be provided as per the
clients' requirements. Delivery time is within 1-7 work days after
payment. The supply ability is 5000PCs per month.
