Brand Name : | SMC |
Model Number : | CY3L |
Certification : | CE |
Price : | Negotiation |
Delivery Time : | 1-7Work Days After Payment |
Payment Terms : | T/T, Western Union,Paypal |
Supply Ability : | 5000PCs per month |
The SMC cylinder operates by utilizing the pressure or expansion
force of gas to do work, which transforms the elastic energy of
compressed air into kinetic energy of the machine. This pneumatic
component acts as a form of power transmission, also known as an
energy conversion device, which employs gas pressure to transfer
energy. The SMC cylinder guides the piston to perform linear
reciprocating motion, and the working fluid converts thermal energy
into mechanical energy through expansion in the engine cylinder.
Gas is compressed by the piston in the compressor cylinder to
increase pressure. Examples of cylindrical metal components include
the casing of a turbine and rotary piston engine.
The cylinder is highly versatile and finds application in various
fields including printing, semiconductors, automation control,
robots, and more.
Cylinders have different types based on work requirements and designs. The two common types are single acting cylinders and double acting cylinders. Single acting cylinders have only one end for air intake or exhaust and possess a simple structure with low air consumption. The piston rod is reset utilizing spring force or diaphragm force, and a portion of the compressed air energy fights spring force or diaphragm tension, subsequently reducing the output force of the piston rod. Double acting cylinders, on the other hand, alternately supply air from both sides of the piston and output force in one or two directions.
SMC cylinders can be classified according to various methods like function, size, installation, buffering, lubrication, position detection, and driving. For function classification, it includes by default ultra small size, needle type, standard type, European standard type, free installation type, thin type, lightweight type, elliptical piston type, locking type, end lock type, pneumatic slide, sliding device type, dual type, mechanical rodless cylinder, magnetic rodless cylinder, thin type with guide rod, thin type with guide rod, stop type, rotary clamping type, and several other types. Size classification defines cylinders with a diameter less than 10mm as micro cylinders, cylinders with a diameter of 10-25mm are called small cylinders, cylinders with a diameter of 32-100mm are called medium cylinders, and cylinders with a diameter greater than 100mm are referred to as large cylinders.
Product | Hydraulic Oil Cylinder |
Max.operating pressure | 0.7MPA |
Cushion | Rubber Bumper |
Piston speed | 50 To 500 Mm/s |
Proof pressure | 1.05MPA |
Lubrication | Not Required(Non-lube) |
Ambient and fluid temperature | -10 To 60℃ |
Fluid | Air |
SMC cylinders are known for their robust impact force, high speed,
and low air consumption. In order to meet these demands, impact
cylinders incorporate some special design features. One such
feature includes increasing the cylinder diameter to enhance the
cylinder's impact capacity. Another design feature involves
weighting the impact piston rod, allowing it to deliver strong
force with every motion. Additionally, reducing the friction
coefficient of the cylinder wall ensures the smooth and efficient
operation of the cylinder.
In addition to these design features, SMC cylinders incorporate a
recoil device for the cylinder piston rod to provide the needed
impact function. By adopting these special technologies, SMC
cylinders can deliver maximum impact force while being durable and
long-lasting. It is worth noting that, despite their powerful
capabilities, SMC cylinders also have low air consumption, making
them an efficient and cost-effective option for various industrial
applications.
Summary of Key Points:

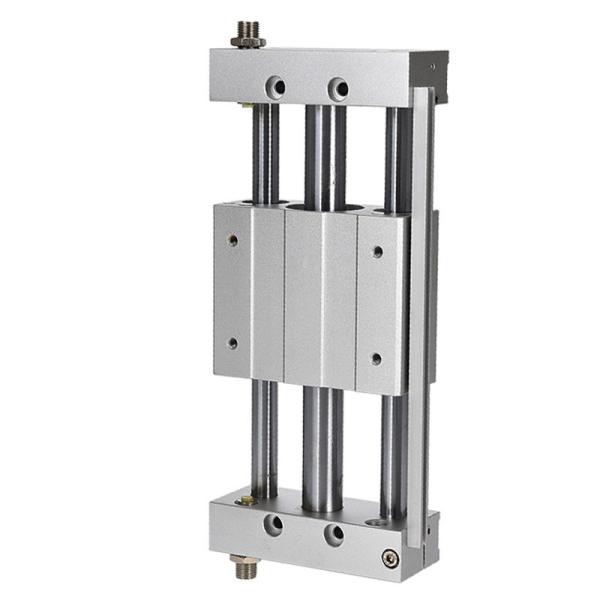

The SMC magnetic coupled rodless cylinder is a versatile product
that can be used in various occasions and scenarios. This product
is suitable for applications that require a piston speed of 50 to
500 mm/s. It is a non-lube hydraulic oil cylinder that uses air as
its fluid. The ambient and fluid temperature range from -10 to 60℃
and the maximum operating pressure is 0.7MPA.
Some of the product application occasions for the SMC rodless
cylinder include the manufacturing industry, automotive industry,
construction industry, and the food industry. This product is ideal
for applications that require a high degree of precision and
accuracy.
The SMC rodless cylinder is suitable for various scenarios such as
heavy-duty lifting, pushing, and pulling. It is also suitable for
applications that require a high degree of cleanliness such as the
food industry. The SMC rodless cylinder is known for its durability
and reliability, making it an ideal choice for industrial
applications.
Overall, the SMC magnetic coupled rodless cylinder is a
high-quality product that is suitable for various applications.
With its non-lube design, it requires minimal maintenance, and it
is easy to install. If you are looking for a reliable and durable
hydraulic oil cylinder, the SMC rodless cylinder should be your top
choice.
Our Hydraulic Oil Cylinder product is designed and manufactured to
the highest quality standards. We offer comprehensive technical
support and services for our customers to ensure optimal
performance and longevity of the product.
Our technical support team is available to assist with any
questions or issues related to the installation, operation, and
maintenance of the Hydraulic Oil Cylinder. We also provide
customized solutions to meet specific customer needs.
In addition, we offer repair and refurbishment services for our
Hydraulic Oil Cylinder product. Our experienced technicians can
quickly diagnose and address any issues to minimize downtime and
ensure maximum productivity.
Overall, our goal is to provide exceptional support and services to
our customers to ensure the Hydraulic Oil Cylinder product meets
their expectations and delivers reliable performance for years to
come.
Product Packaging:
The hydraulic oil cylinder product will be packaged securely in a
sturdy cardboard box to ensure its safe transportation. The box
will be labeled with the product name, description, and any
necessary handling instructions.
Shipping:
We offer fast and reliable shipping services to our customers
worldwide. The shipping cost will be calculated at checkout based
on the destination and weight of the package. We will provide you
with a tracking number once your order has been shipped so you can
easily track its delivery status.
![]() |
