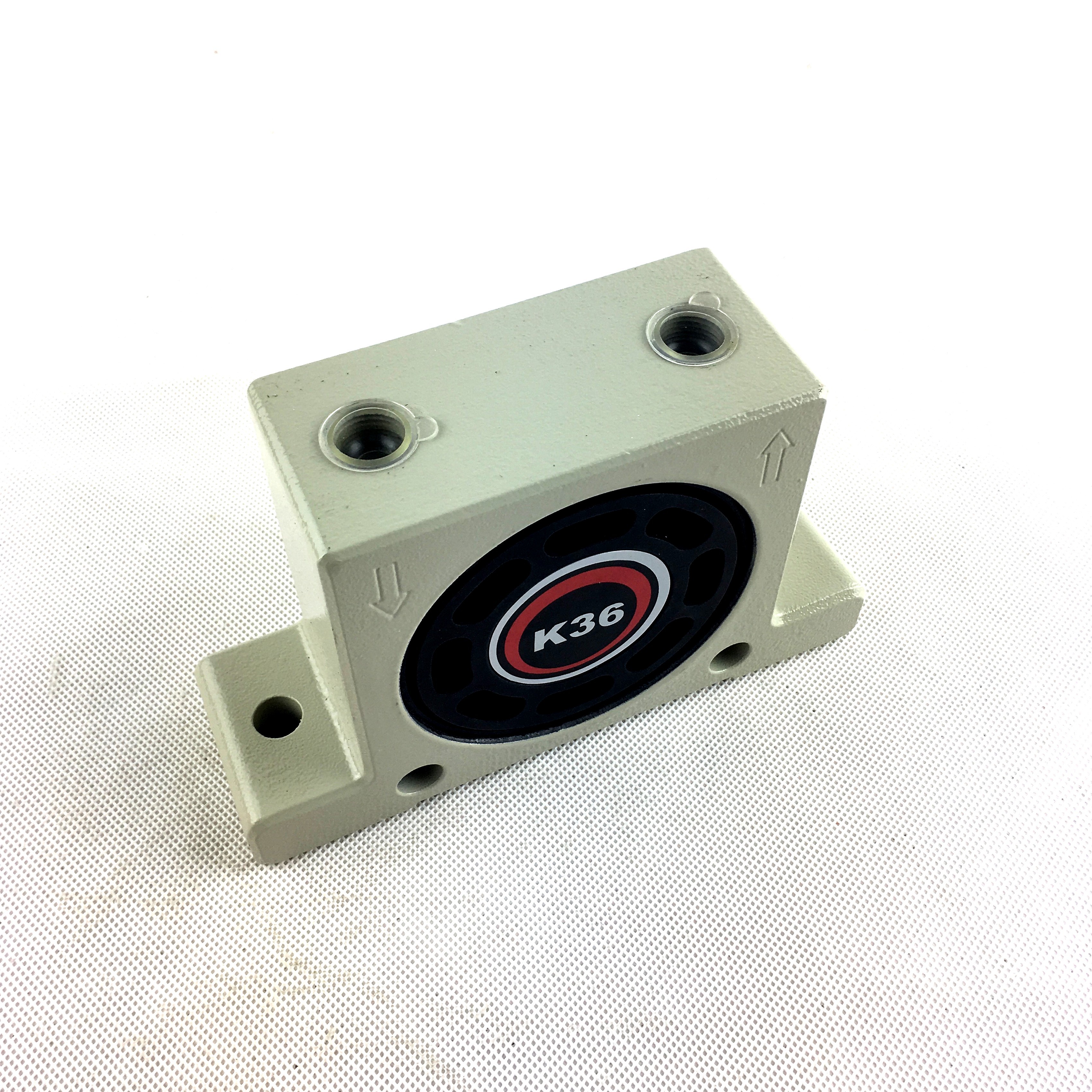

K36 Ball Vibrator Rust Proof Aluminum Pneumatic Vibrators
Product Description:
K Series Vibrator
The K series vibrator, which is also known as a steel ball
vibrator, is a ball type vibrator. The vibrator housing is made of
rust-proof aluminum and equipped with hardened steel raceways. This
design allows steel balls to roll on the raceways, producing a
regular vibration.
Moreover, the K series vibrator housing has special nylon end caps
on both ends, which help locate steel tracks and steel balls while
preventing dust and water from entering. This feature allows the K
series ball vibrator to work in harsh environments such as dust and
moisture.
The inlet and outlet of the ball vibrator have standard pipe
threads that allow the exhaust to be led out through the pipeline,
ensuring unobstructed exhaust. Additionally, the machine has four
mounting holes: two horizontal and two vertical, to accommodate
different installation positions.
Operational Principle
The K series ball vibrator works by using compressed air to drive
the internal steel balls (rollers) to rotate and produce a regular
vibration. The magnitude and frequency of vibration force can be
controlled by adjusting the pressure and flow rate of compressed
air. As air pressure increases, vibration frequency and centrifugal
force of the vibration also increase.
Features:
The device features an aluminium body that is both durable and
lightweight, ensuring long-term use while reducing user fatigue.
Its rotary vibrator is engineered to provide consistent
performance, delivering reliable results with every use.
This device is designed with precision and convenience in mind,
featuring two sets of mounting holes that allow for easy
installation and enhanced stability. The frequency and force can be
easily adjusted by air pressure, making it ideal for applications
that require fine-tuning.
The device is suitable for use in environments with temperatures of
up to 100℃, making it a versatile solution for a wide range of
applications. Additionally, it delivers an output force ranging
from 130 N to 4050 N, making it suitable for use with a variety of
materials and in various industrial settings.
Main Dimension of K Series Pneumatic Vibrators:
| Model | A (mm) | Width (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (Thread) |
| K-8 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | G1/4'' |
| K-10 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | G1/4'' |
| K-13 | 65 | 24 | 113 | 90 | 16 | 9 | 50 | G1/4'' |
| K-16 | 65 | 27 | 113 | 90 | 16 | 9 | 50 | G1/4'' |
| K-20 | 80 | 33 | 128 | 104 | 16 | 9 | 60 | G1/4'' |
| K-25 | 80 | 38 | 128 | 104 | 16 | 9 | 60 | G1/4'' |
| K-30 | 100 | 44 | 160 | 130 | 20 | 11 | 80 | G3/8'' |
| K-36 | 100 | 50 | 160 | 130 | 20 | 11 | 80 | G3/8'' |
Technical Data of K Series Pneumatic Vibrators:
| Model | Vibrations (x1000 RPM) | Centrifugal Force (N) | Air Consumption (l/min) |
| 2 bar | 4 bar | 6 bar | 2 bar | 4 bar | 6 bar | 2 bar | 4 bar | 6 bar |
| K-8 | 25.5 | 31.0 | 35.0 | 130 | 260 | 360 | 83 | 145 | 195 |
| K-10 | 22.5 | 28.0 | 34.5 | 250 | 470 | 710 | 92 | 150 | 200 |
| K-13 | 15.0 | 18.5 | 22.5 | 320 | 550 | 870 | 94 | 158 | 225 |
| K-16 | 13.0 | 17.0 | 19.5 | 450 | 800 | 1100 | 122 | 200 | 280 |
| K-20 | 10.5 | 14.5 | 16.5 | 720 | 1220 | 1720 | 130 | 230 | 340 |
| K-25 | 9.2 | 12.2 | 14.0 | 930 | 1570 | 2050 | 160 | 290 | 425 |
| K-30 | 7.8 | 9.7 | 12.5 | 1510 | 2470 | 3210 | 215 | 375 | 570 |
| K-36 | 7.3 | 9.0 | 10.0 | 2060 | 3150 | 4050 | 260 | 475 | 675 |
Applications:
The Functions of K Series Vibrator
The K series vibrator has several main functions:
Transportation of Materials
The K series vibrator can effectively assist in the transportation
of materials from the chute and hopper. It does so by utilizing its
shaking force to gradually shake down the materials on the chute.
This method helps to ensure a smooth and efficient transfer of
materials along the conveyor system.
Preventing Clogging of Conveyor Equipment
Another function of the K series vibrator is to prevent the
clogging or blockage of bottles, cans, or similar products on
conveyor equipment. It makes use of its shaking force to prevent
the build-up of products on the conveyor, which can slow down or
halt the production process.
Compaction of Materials
The K series vibrator also provides compaction treatment of
materials inside containers or molds. It continuously applies its
shaking force to compact the product and make it more uniform,
improving its overall quality.
Material Separation
Lastly, the K series vibrator has the ability to separate materials
of different particle sizes in separators, screening machines, or
filter screens. It makes use of its vibration force to simulate the
manual shaking motion for screening, which helps to sort the
materials according to their sizes.
Support and Services:
Our Pneumatic Vibrators product line comes with comprehensive
technical support and services to ensure smooth operation and
maximum performance. Our team of experts can assist with
installation, troubleshooting, and maintenance to minimize downtime
and maximize productivity. We also offer training programs to help
your team properly operate and maintain the equipment. In addition,
we provide spare parts and repair services to keep your equipment
running efficiently. Contact us for more information on our
technical support and services for our Pneumatic Vibrators product
line.
Packing and Shipping:
Product Packaging:

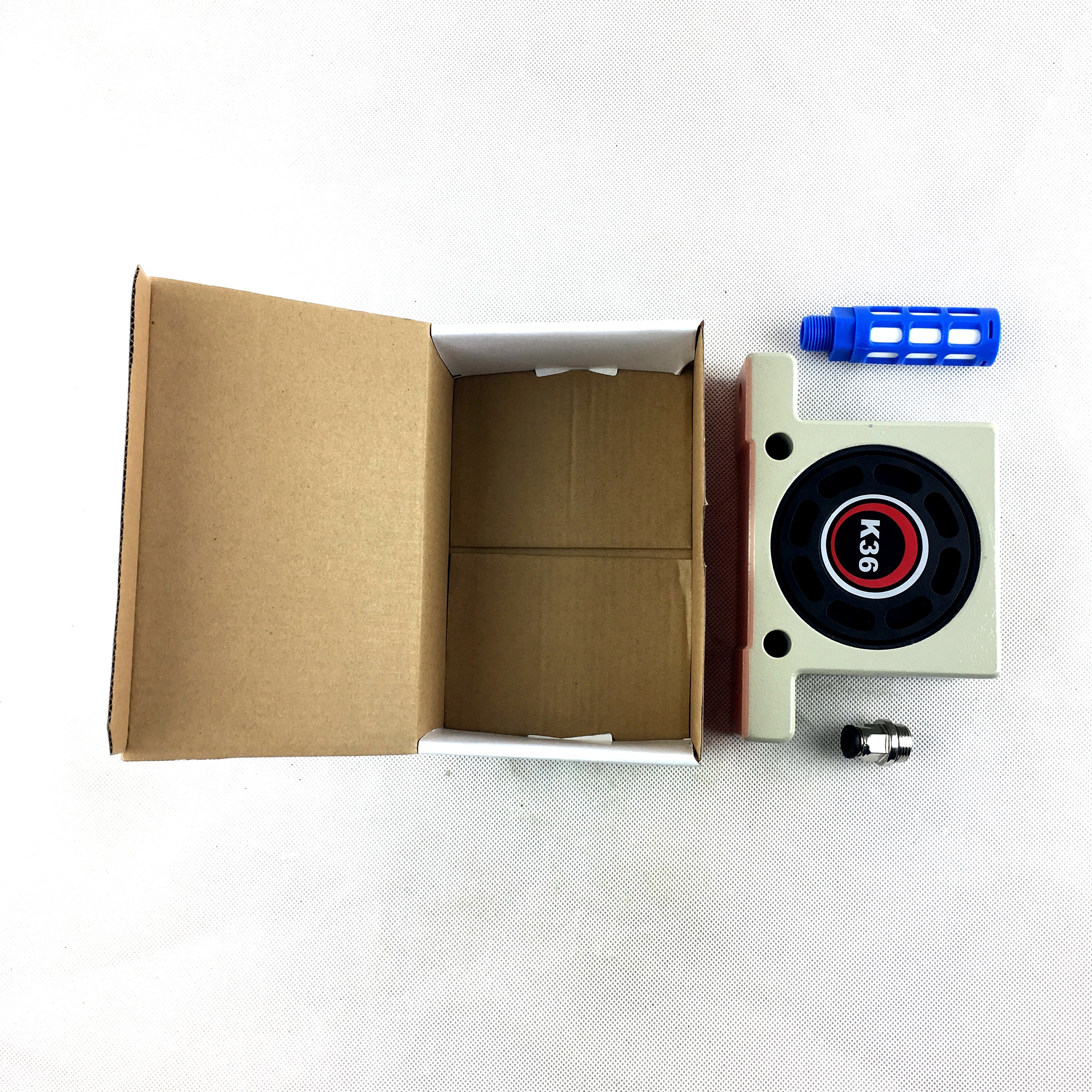

Each pneumatic vibrator is carefully packed in a sturdy cardboard
box to ensure safe delivery. The box is labeled with the product
name, quantity, and any relevant handling instructions.
Shipping:
Our pneumatic vibrators are shipped via standard ground shipping.
We strive to process and ship orders within 24-48 hours of
receiving them. Shipping times may vary depending on the
destination, but typically take 3-5 business days within the
continental United States.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is DKE.
Q: What is the model number of this product?
A: The model number of this product is K36.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: Is this product CE certified?
A: Yes, this product is CE certified.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: What are the packaging details for this product?
A: The packaging details for this product are carton or as the
clients require.
Q: What is the delivery time for this product?
A: The delivery time for this product is 1-7 work days after
payment.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, Western Union, and
Paypal.
Q: What is the supply ability for this product?
A: The supply ability for this product is 5000 PCs per month.
