Mecair DB116 And DB16 Diaphragm Repair Kits For Pulse Jet Valve 2",

Ask Lasest Price
Brand Name :	Mecair
Model Number :	DB116
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	5000 pieces/1Month
Delivery Time :	1-7Work Days After Payment

Add to Cart

Product Details
Company Profile

Mecair DB116 And DB16 Diaphragm Repair Kits For Pulse Jet Valve 2",

Mecair DB116 and DB16 Diaphragm Repair Kits for Pulse Jet Valve,2",

Basic Info.

Model NO.

SMT-DB116 SMT- DB16

Pressure

Ordinary Pressure

Valve Structure

Pilot Piston Structure

Power Supply

AC Solenoid Valve

Usage

Safety, Emptying, Drain, Temperature Control, Flow Control

Standard

Application

Industrial Usage

Model Number

SMT-dB116 SMT- dB16

Color

Black

Port Size

1.5"

Working Pressure

0.15~0.85MPa

Transport Package

Trademark

Mecair

Origin

China

Product Description

Mecair DB116 and DB16 Diaphragm repair kits for pulse jet valve

The 200 SERIES is a range of diaphragm valve suitable for Dust collector applications,in particular for reverse pulse jet filter cleaning of filter bags cartridges envelope filters,ceramic filters and sintered metal fibre filters. The 200Series valve has the inlet port at 900 to the outlet port. The 200Series range comprises 7 models from 3/4" to 3", all with threaded female gas connections.

The 200 Series is available in the following versions:

• VNP,with integrated solenoid pilot

• VEM,with remote pneumatic connection.

Cover	Die-cast aluminium (Anodised)
Body	Die-cast aluminium (Anodised)
Pilot Base	Brass (Chromed)
Pilot	Stainless Steel
Diaphragm	NBR
Bolts and screws	Stainless Steel
Diaphragm backing disk	Stainless Steel
Diaphragm spring	Stainless Steel

DB 116/C DB116/C DB116 Mecair Type Diaphragm Kit

To support your aftermarket efforts, Brando manufactures and stocks diaphragm repair kits to fit all standard pulse valve designs of the leading valve suppliers. All kits utilize premium Buna N or neoprene diaphragm material for maximum long life performance. We have wide rage of diaphragm repair kits to fit ASCO, Goyen, Mecair, Tae-Ha, Turbo, JOIL, Norgren, SBFEC and so on.

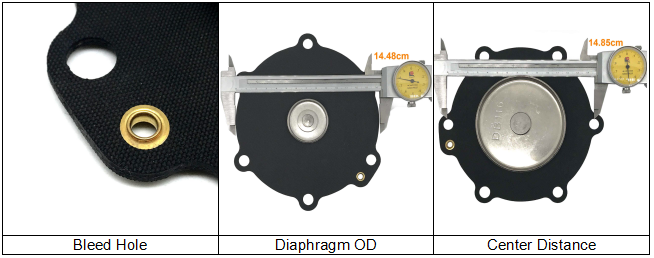

Overall Dimension of DB116/C Diaphragm Repair Kit For 2'' Mecair Pulse Valve:

Details of VNP/VEM216 VNP/VEM416 VNP/VEM616 VNP/VEM716 Diaphragm Repair Kit:

Diaphragm Model	Pulse Valve Model	Pulse Valve Port Size	Diaphragm Material
DB16/G	VNP206, VEM206, VNP306, VEM306	3/4''	NBR, FKM
DB18/G	VNP208, VEM208, VNP308, VEM308, VNP408, VEM408	1''
DB18M	VNP608, VEM608, VNP708, VEM708	1'', 1 1/2''
DB112/G	VNP212, VEM212, VNP312, VEM312, VNP412, VEM412	1 1/2''
DB114/C & DB16/G	VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714	1 1/2''
DB116/C & DB16/G	VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716	2''
DB120/C & DB16/G	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	2 1/2'', 3''
