Product Description:
The high performance diaphragm valve with threaded ports is a
reliable and efficient option for managing fluid flow. It is
suitable for a variety of applications and is highly customizable
to meet specific needs. The threaded ports make installation and
maintenance easy, and the outlet being at 90° to the inlet ensures
smooth flow with minimal turbulence.
One of the key benefits of this valve is its availability with
integral pilot or as remotely piloted. This allows for flexibility
in control and operation, making it an ideal choice for many
industrial processes. The integral pilot option means that the
valve can be controlled directly on-site, while the remotely
piloted valve can be controlled from a centralized location.
Overall, the high performance diaphragm valve with threaded ports
is an excellent choice for those looking for a reliable and
efficient fluid control solution. It is highly customizable, easy
to install and maintain, and can be regulated remotely or on-site
depending on specific needs.
Features:
- Product Name: Pulse Jet Valves
- Pressure Range: 5 To 125 Psi
- Temp. Range: -5℃ - 55℃
- Body Material: Aluminum (Diecast)
- Port Size: G1/2''
- Orifice Size: 45mm
Our Dust Collector Diaphragm Valve, also known as Pulse Jet Valves
or Diaphragm Valve, comes with the following features:
Technical Parameters:
| Temp. Range | -5℃ - 55℃ |
| Orifice Size | 45mm |
| Port Size | G1 1/2'' |
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC |
| Pressure Range | 5 To 125 Psi |
| Body Material | Aluminum (Diecast) |

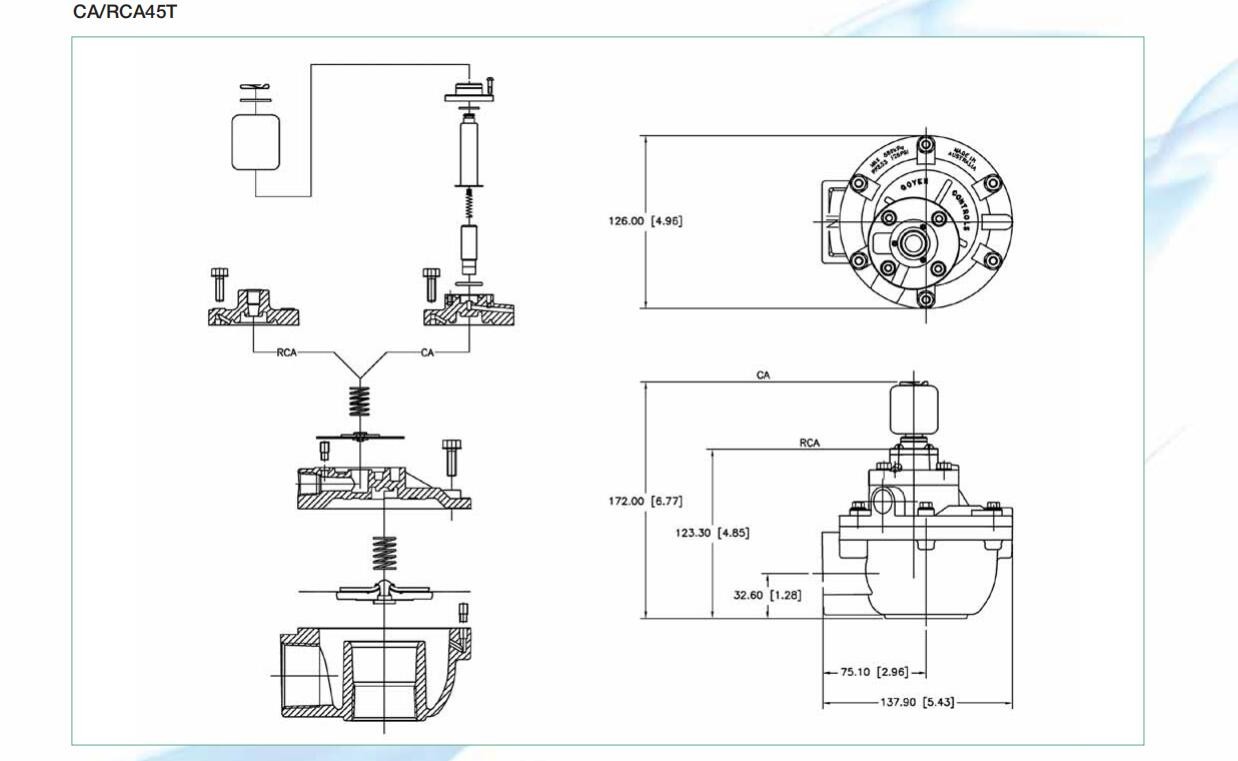

| Integral Pilot Model No | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T |
| Remote Pilot Model No | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T |
| Orifice Size | 15mm | 20mm | 25mm | 35mm | 45mm | 50mm | 62mm | 76mm |
| Port Size | G1/2'' | G3/4'' | G1'' | G1 1/2'' | G1 1/2'' | G2'' | G2 1/2'' | G3'' |
| Diaphragm Number | 1 | 2 |
| Diaphragm Material | Nitrile, |
| Body Material | Aluminum (Diecast) |
| Pressure Range | 5 to 125 psi |
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC |
Applications:
The product is suitable for dust collector applications
specifically for reverse pulse jet filter cleaning. The product can
be used for various filters including bag filters, cartridge
filters, envelope filters, ceramic filters, and sintered metal
fiber filters.
For proper installation of the valve, some important steps need to
be taken:
- Prepare the supply and blowtube pipes according to the valve
specification. Do not install valves beneath the tank.
- Ensure that the pipes and tank are free from dirt, rust, or any
other particulate matter.
- The supply air should be clean and dry.
- Mount the valves to the inlet pipes and blowtube to the valves.
Make sure that no excess thread sealant enters the valve.
- Connect the electrical connections to the solenoid or connect RCA
pilot port to the pilot valve for RCA valves only.
- Apply moderate pressure to the system and check for installation
leaks.
- Once there is no leakage, fully pressurize the system.
- Test fire the valve and listen for proper actuation and crisp pulse
noise.
Support and Services:
Our Pulse Jet Valves are designed to provide reliable and efficient
operation in dust collection systems. Our technical support team is
available to assist with installation, troubleshooting, and
maintenance of the product to ensure optimal performance. We also
offer a range of services including training, repair, and
replacement of parts to meet the needs of our customers.
Packing and Shipping:
Product Packaging:
- The Pulse Jet Valves will be packed securely in a cardboard box.
- The box will be labeled with the product name, quantity, and any
necessary handling instructions.
- Each valve will be individually wrapped in bubble wrap for added
protection during transport.
Shipping:
- Shipping will be handled by a reputable carrier to ensure timely
and safe delivery.
- The customer will receive a tracking number once the order has been
shipped.
- Shipping costs will be calculated and added to the final invoice.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is GOYEN.
Q: What is the model number of this product?
A: The model number of this product is CA45T.
Q: Where is this product made?
A: This product is made in China.
Q: Is this product certified?
A: Yes, this product is certified with CE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: How is this product packaged?
A: This product is packaged in a carton or as per the clients'
requirement.
Q: What is the delivery time for this product?
A: The delivery time for this product is 1-7 work days after
payment.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, Western Union, and
Paypal.
Q: What is the supply ability of this product?
A: The supply ability of this product is 5000 pieces per month.
