Product Description:

PALL filters are one of the main products manufactured by Pall and are widely used in various fields including biopharmaceuticals, food and beverage, chemical, electronics, aerospace, etc. PALL filter cartridges have a wide range of models to meet the needs of different application scenarios.

The filtering material of PALL filter cartridge usually uses high-quality glass fiber filter material and metal mesh to ensure its efficient filtering performance. For example, the filtration accuracy of HC2207FKP6H filter element is 6um, belonging to the HC2207 series.

PALL filter cartridges are widely used in hydraulic systems, including installation at the pump's suction port, on the pump's outlet oil circuit, on the system's return oil circuit, on the system's branch oil circuit, and as a standalone filtration system. In these applications, the role of PALL filters includes protecting hydraulic pumps from larger impurities and particles, filtering out pollutants that may enter valve components, and ensuring the normal operation of important components such as servo valves and precision throttle valves.

The filtration accuracy and size of PALL filter cartridges are also important parameters in their model specifications. The selection of filtration accuracy depends on the specific requirements and working conditions of the system. For example, the filter element installed on the outlet oil circuit of the pump should have a filtration accuracy of 10-15 μ m and be able to withstand the working pressure and impact pressure on the oil circuit. The height of the filter element (in inches) is also an important dimensional parameter. For some models, the height of the filter element is 8 inches, which is converted to 203.2mm in millimeters.

In summary, the model description of PALL filter cartridge covers information on its application field, filter material, filtration accuracy, size, and other aspects, which together constitute the technical specifications and application guidelines of PALL filter cartridge.

Features:

The PALL filter cartridge model has several attributes, including:

1. Serial number: The PALL filter cartridge model starts with HC followed by a series of numbers and letters that identify different filter cartridge models. For instance, HC2207FKP6H or HC8314KFF11H. The numbers are used to indicate the specific model and filter element.
2. Filtration ratio: The filtration ratio of the PALL filter element is β ≥ 200. It is equipped with a metal mesh to improve the filtration effect and protect the filter element.
3. Height: The height of the filter element is expressed in inches, for example, 8 inches is equal to 203.2mm in millimeters. This number is also reflected in the model and is used to indicate the specific size of the filter element.
4. Sealing material: The seal of PALL filter element can use different rubber materials, such as nitrile rubber (H mark), ethylene or propylene (J), chloroprene rubber (P), fluororubber (Z), etc. to meet different working conditions and medium requirements.

Furthermore, PALL filter's performance indicators include filtration accuracy, working pressure, working medium, and working temperature. It covers a wide range and is suitable for various hydraulic oils, phosphate hydraulic oils, emulsions, and water ethylene glycol media. The working temperature range is from -30 ℃ to+110 ℃.

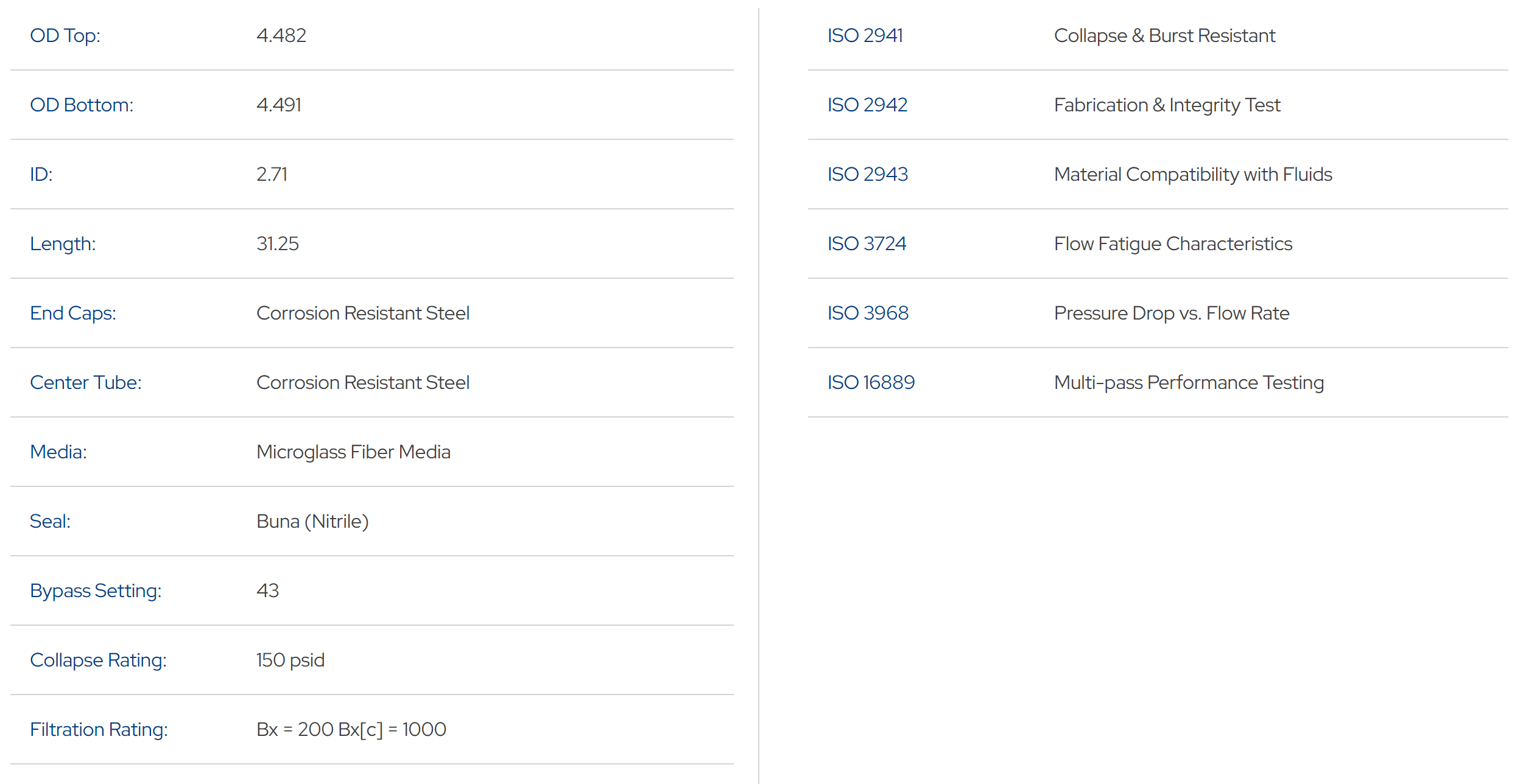

Technical Parameters:

Applications:

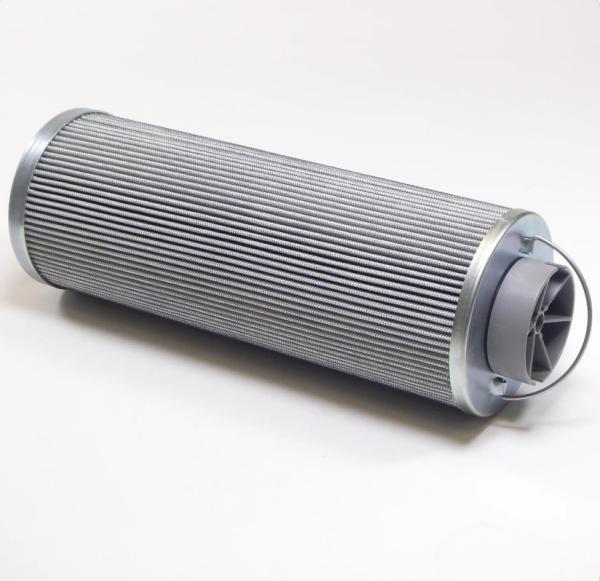

The PALL HC8314FCP39H Hydraulic Filter Elements have a high filtering accuracy of 1 μ~100 μ M, making them suitable for a range of applications that require precision filtering. The sealing material used in the filter elements is Fluorine Ring Ding Qing Rubber, which provides excellent sealing performance and ensures that the filter elements are leak-proof.

These filter elements are manufactured in China and have been certified with CE. The minimum order quantity for the PALL HC8314FCP39H Hydraulic Filter Elements is 1, and the price is negotiable. The filter elements are packaged in cartons or as per the client's requirements.

The delivery time for the filter elements is 1-7 work days after payment, and the payment can be made through T/T, Western Union, or Paypal. The supply ability of the filter elements is 5000 PCs per month. The working temperature range for these filter elements is -30 ℃~+110 ℃, making them suitable for use in a range of environments.

The PALL HC8314FCP39H Hydraulic Filter Elements can be used in a range of applications, including hydraulic systems in the automotive industry, construction machinery, industrial machinery, and marine applications. These filter elements are highly effective in removing contaminants and ensuring the smooth operation of the hydraulic system. The precision filter elements are suitable for applications that require high filtering accuracy, ensuring that the hydraulic system is protected from damage caused by contaminants.

Packing and Shipping:

Product Packaging:

Each hydraulic filter element is packaged in a durable cardboard box with foam padding to ensure safe transportation.

Shipping:

We offer free shipping for all orders within the United States. International shipping is available at an additional cost and varies depending on the destination country. Orders are typically processed within 1-2 business days and shipped via standard ground shipping.
