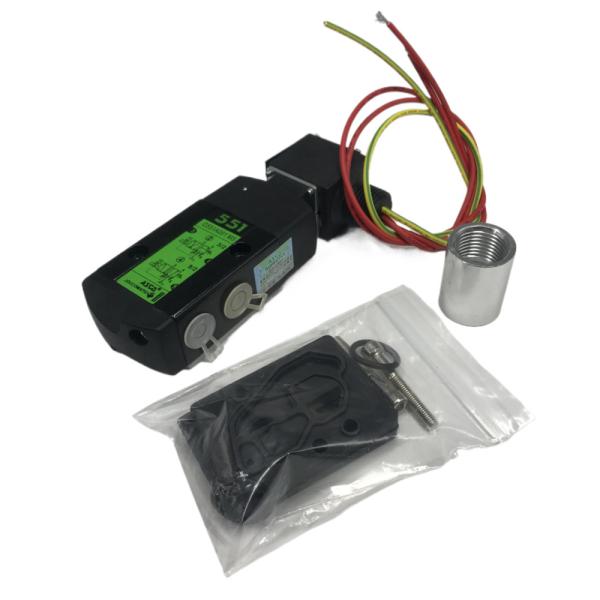

Product Description:
The working principle of ASCO solenoid valve is to control the valve opening and closing by controlling the
on/off of the solenoid coil, thereby controlling the movement of
the mechanical device. The working principle of ASCO solenoid
valves can be divided into three types: pilot operated, direct
acting, and step-by-step direct acting.
When the pilot operated solenoid valve is powered on, the electromagnetic coil generates electromagnetic
force to open the pilot hole, causing the pressure in the upper
chamber to decrease, creating a pressure difference that pushes the
closing member upward and opens the valve; When the power is cut
off, the electromagnetic force disappears, the pilot hole closes
under the action of the spring, the closing member is pushed down,
and the valve closes.
When the direct acting solenoid valve is powered on, the electromagnetic coil generates magnetic force
to lift the closing component and open the valve; When the power is
cut off, the magnetic force disappears, and the closing element is
pressed against the valve seat under the action of the spring,
causing the valve to close.
The step-by-step direct acting solenoid valve combines the working principles of direct acting and pilot
operated and uses electromagnetic force to open the valve without
pressure difference or with a small pressure difference; When there
is a pressure difference, use pressure to push the valve; When
there is a power outage, it will be turned off.
ASCO solenoid valves , based on these working principles, are widely used in industrial
control systems to adjust the direction, flow rate, speed, and
other parameters of the medium, ensuring control accuracy and
flexibility.
Technical Parameters:
| Product Attribute | Value |
|---|
| Type | Single Solenoid Valve |
| Core tube | Brass |
| Flow | 1/4 = 700 L/min (ANR) 1/2 = 3000 L/min (5/2, 5/3) |
| Differential pressure | 2 - 10,4 Bar |
| Seal materials | NBR (nitrile) + PUR (polyurethane) |
| Temperature range | -25°C To +60°C |
| Fluids | Air, Inert Gas, Filtered |
| Product name | Solenoid Valve / Electron Magnetic Valve |
Applications:
The Solenoid Valve's minimum order quantity is one and the price is
negotiable. It is packaged in Carton or as per the clients'
requirements. The delivery time is between 1 to 7 workdays after
payment, and payment terms include T/T, Western Union, and Paypal.
The Solenoid Valve's supply ability is 5000PCs per month.
The ASCO Solenoid Valve has a differential pressure of 2 - 10,4 Bar
and can operate effectively in a temperature range of -25°C to
+60°C. It can work with Air, Inert Gas, and Filtered fluids. The
Solenoid Valve's core tube is made of brass, while the seal
materials are NBR (nitrile) + PUR (polyurethane).
The ASCO Solenoid Valve can be used in various applications such as
controlling the flow of fluids, gases, and other media. It is
suitable for controlling the flow of water, air, oil, and gas. The
Solenoid Valve can be used in scenarios where automation is
required, such as in industrial processes, automatic control
systems, and HVAC systems.
The Solenoid Valve can also be used in food and beverage production
lines, where hygiene is critical. It can control the flow of
liquids, gases, and other media in the production process. The
Solenoid Valve can also be used in water treatment plants to
control the flow of water and other fluids.
In summary, the ASCO Solenoid Valve is a reliable and high-quality
product that can be used in various applications. Its features such
as differential pressure, temperature range, and seal materials
make it suitable for use in different scenarios. Its compact design
and ease of use make it a popular choice for controlling the flow
of fluids and gases in industrial processes and other applications.
Packing and Shipping:
Product Packaging:
- The ASCO Solenoid Valve product will be packed securely and
protected from damage during shipping.
- The packaging will include necessary labeling and product
information for easy identification.
- Instructions for installation and usage will be included with the
product.
Shipping:
- The ASCO Solenoid Valve product will be shipped using a reliable
and efficient shipping service.
- The shipping cost will be calculated based on the customer's
location and shipping preferences.
- The shipping time may vary depending on the customer's location and
shipping method chosen.
- The customer will receive a tracking number to track the progress
of their shipment.
