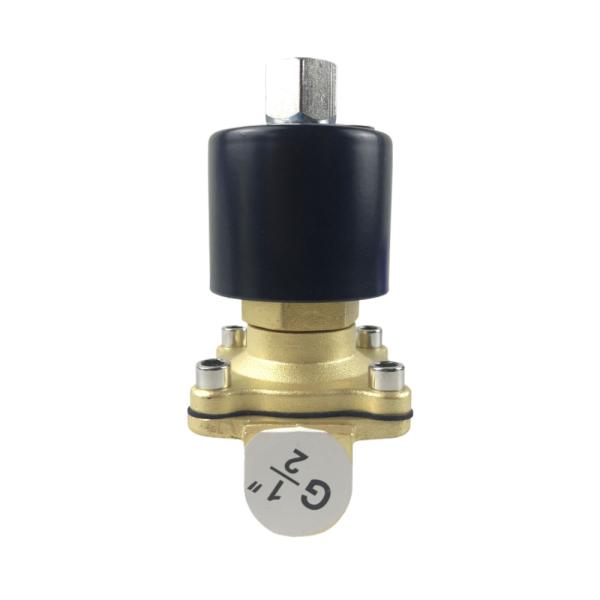

Product Description:
The valve features a sturdy construction with an oil seal made of
NBR, EPDM, or VITON material. This ensures that the valve is
resistant to wear and tear, and can withstand harsh working
conditions. The valve also has a voltage range of ±10%, making it
suitable for use in a variety of different voltage systems.
The 2 2 Way Solenoid Valve is easy to install and operate, and can
be used in a variety of different applications. Its compact size
makes it ideal for use in tight spaces, and its reliable
performance ensures that it can be used in even the most demanding
environments.
Whether you need to control the flow of air, water, oil, gas, or
fuel, the 2 2 Way Solenoid Valve is the perfect solution. Its
versatile design and reliable performance make it an ideal choice
for a wide range of different applications, and its durable
construction ensures that it will provide long-lasting service in
even the most challenging environments.
| 2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass (2W Series) |
| Stainless Steel (2S Series) |
| Seal Material | NBR (Standard), EPDM, VITON (Optional) |
| Function | 2 Way Normally Closed (Standard) |
| 2 Way Normally Open (Optional) |
| Operation | Direct Acting | Direct Lift Diaphragm |
| Media | Water, Air, Oil, Gas, etc |
| Fluid Viscosity | 20 CST below |
| Pressure Range | 0 to 1 MPa |
| Temperature Range | NBR: -5 to +80 ºC |
| EPDM: -5 to +120 ºC |
| VITON: -10 to +150 ºC |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Features:
Features:
- Direct-Acting, conductive, normally closed.
- Valve body material is forged brass.
- Can be operated directly without pressure.
- Small size and easy assembly.
- Standard voltage : 24VDC,110VAC, 220VAC AC Voltage tolerance: ± 10%
, DC Voltage tolerance:±1%.
- Other special AC/DC can be made to client's order.
- Thread: BSPT, NPT , BSP.
- The standard product fluid temperature is 80°C(NBR).
- Temperature:fluororubber(130°C), Silicon(130°C), PTFE(185°C).
- DIN43650A connector Coil is interchangeable.
The valve is direct-acting, conductive, and normally closed. It has
a valve body made of forged brass. One of its unique features is
that it can be operated directly without the need for pressure. Its
small size and easy assembly make it suitable for a wide range of
applications.
The standard voltage for the valve is 24VDC, 110VAC, or 220VAC. The
AC voltage tolerance is ±10%, while the DC voltage tolerance is
±1%. Special AC/DC can be made to meet the specific needs of
clients.
The valve's thread options include BSPT, NPT, and BSP. The standard
product fluid temperature is 80°C(NBR). However, it also has the
ability to withstand higher temperatures. Fluororubber can handle
temperatures up to 130°C, Silicon up to 130°C, and PTFE up to
185°C. Additionally, the DIN43650A connector Coil is
interchangeable.
Applications:
The DKE 2W025-08 2 2 Way Solenoid Valve is a versatile product that
can be used in a variety of settings and applications. It is a
water pneumatic electric solenoid valve that is made in China and
has received CE certification. It has a minimum order quantity of 1
and the price is negotiable. The packaging details include carton
or as per the clients' requirements.
The DKE 2W025-08 2 2 Way Solenoid Valve is suitable for a wide
range of application occasions and scenarios, which include:
- Water treatment systems
- Industrial automation systems
- Food processing and packaging
- Medical equipment
- Agricultural irrigation systems
- Chemical industry
- Vacuum systems
- Air conditioning systems
The DKE 2W025-08 2 2 Way Solenoid Valve is a motion pattern direct
drive type valve that has a voltage range of ±10%. It is also
designed to operate with fluids that have a viscosity of 20 CST or
below. Its oil seal material is made of NBR, EPDM, or VITON, which
makes it suitable for use with a variety of fluids.
The operating temperature range for the DKE 2W025-08 2 2 Way
Solenoid Valve is between -5 and +80℃, which makes it suitable for
use in a wide range of environments and settings. It has a supply
ability of 5000 pieces/1 Month, and it can be paid for using T/T,
Western Union, or Paypal. The delivery time for this product is 1-7
work days after payment has been made.
Support and Services:
The 2 2 Way Solenoid Valve is a reliable and durable product
designed to control the flow of fluids in industrial applications.
Our technical support team is available to provide assistance with
installation, troubleshooting, and maintenance of the valve to
ensure optimal performance. In addition, we offer a range of
services to support our customers, including training programs,
repair and replacement services, and customized solutions to meet
specific needs. Our commitment to quality and customer satisfaction
is reflected in our comprehensive warranty program, which covers
all parts and labor for a specified period of time after purchase.
Packing and Shipping:
- 2 2 Way Solenoid Valve
- User Manual
- Mounting Hardware
Shipping:
- Ships within 1-2 business days
- Free standard shipping in the US
- International shipping available
