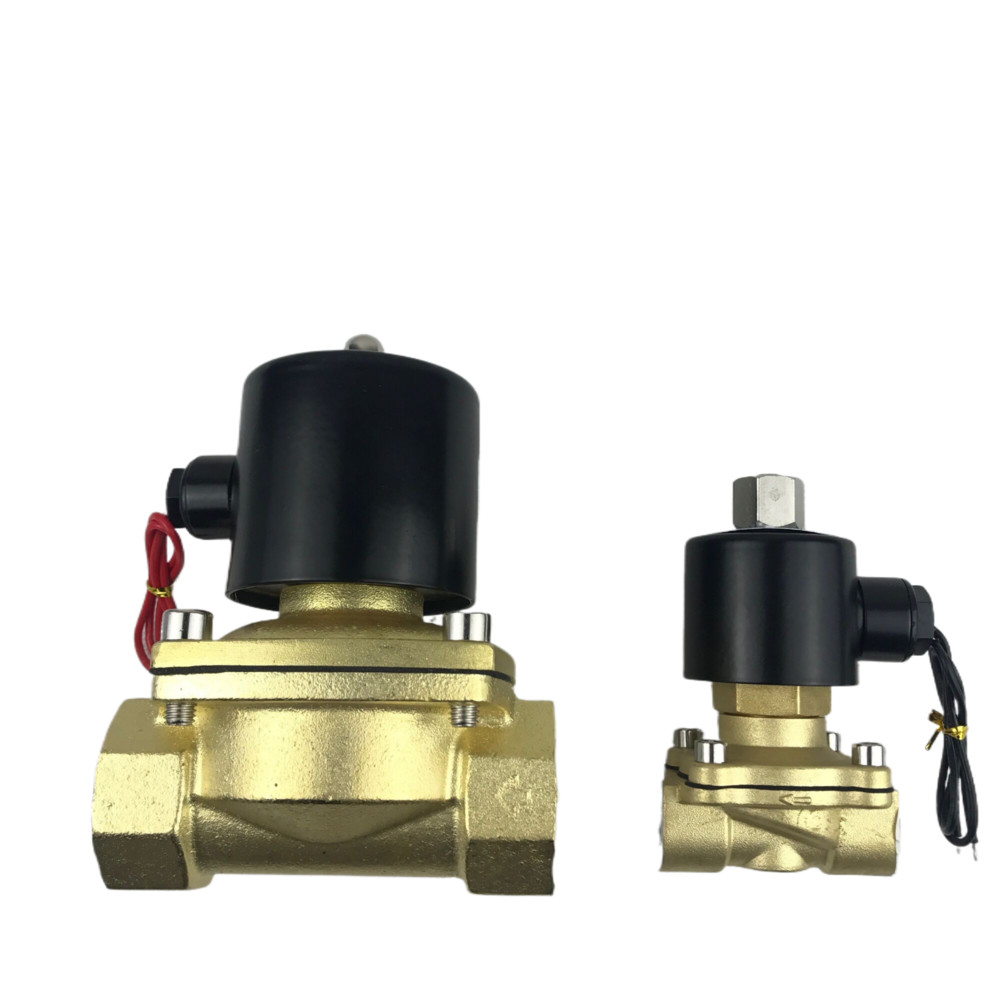

Product Description:
One of the key features of this valve is its ability to handle
fluids with a viscosity of 20 CST or less. This makes it an ideal
choice for applications where water, oil, or other low-viscosity
fluids need to be controlled. The valve's oil seal is made from
high-quality materials such as NBR, EPDM, or VITON, providing
excellent resistance to wear and tear and ensuring a long service
life.
The operating temperature range of the 2 2 Way Solenoid Valve is
-5～+80℃, making it suitable for use in a variety of environments.
Whether you need to control the flow of fluids in a hot or cold
environment, this valve is up to the task. Its direct drive type
motion pattern ensures that it operates smoothly and reliably, even
in demanding conditions.
In addition to its impressive performance specifications, the 2 2
Way Solenoid Valve is also designed to be easy to use and install.
Its voltage range is ±10%, making it compatible with a wide range
of power sources. Whether you need to control the flow of fluids in
a pneumatic or electric system, this valve is the perfect solution.
Overall, the 2 2 Way Solenoid Valve is an excellent choice for
anyone who needs a reliable and efficient water pneumatic electric
solenoid valve. With its exceptional performance, high-quality
materials, and easy installation, this valve is sure to provide
years of trouble-free operation in a wide range of applications.
| 2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass (2W Series) |
| Stainless Steel (2S Series) |
| Seal Material | NBR (Standard), EPDM, VITON (Optional) |
| Function | 2 Way Normally Closed (Standard) |
| 2 Way Normally Open (Optional) |
| Operation | Direct Acting | Direct Lift Diaphragm |
| Media | Water, Air, Oil, Gas, etc |
| Fluid Viscosity | 20 CST below |
| Pressure Range | 0 to 1 MPa |
| Temperature Range | NBR: -5 to +80 ºC |
| EPDM: -5 to +120 ºC |
| VITON: -10 to +150 ºC |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Features:
Features:
The following are the features of the valve:
- It is direct-acting, conductive, and normally closed.
- The valve body material is made of forged brass.
- The valve can be operated directly without pressure.
- It is small in size and easy to assemble.
- The standard voltage of the valve is 24VDC, 110VAC, 220VAC, with an
AC voltage tolerance of ± 10%, and a DC voltage tolerance of ±1%.
- Other special AC/DC voltage can be made to client's order.
- The valve comes with a BSPT, NPT, or BSP thread.
- The standard product fluid temperature for the valve is 80°C(NBR).
- Temperature options for the valve include fluororubber (130°C),
Silicon (130°C), PTFE (185°C).
- The DIN43650A connector coil of the valve is interchangeable.
Applications:
The 2 2 Way Solenoid Valve is a versatile product that is suitable
for various occasions and scenarios. It is commonly used in water,
pneumatic, and electric systems that require precise control of
fluid flow. Some of the application occasions for this product
include:
- Water treatment plants
- Industrial machinery
- Automotive systems
- Gas pipelines
- Oil refineries
- Food processing plants
In these environments, the 2 2 Way Solenoid Valve provides reliable
and efficient performance. The operating temperature range is
between -5 to +80℃, which makes it suitable for use in a wide range
of climates. The working medium can be air, water, oil, gas, or
fuel, which makes it a versatile product for various industries.
Additionally, the voltage range is ±10%, and the material of the
oil seal can be NBR, EPDM, or VITON. The operation fluid viscosity
should be 20 CST or below.
Overall, the 2 2 Way Solenoid Valve is a valuable product that can
be used in many different settings. It is easy to install and
operate, and it provides precise control over fluid flow. If you
are interested in purchasing this product, please contact DKE for
more information.
Support and Services:
The 2 2 Way Solenoid Valve is a product that is designed to control
the flow of liquids and gases in a variety of applications. It is
made from high-quality materials to ensure durability and
reliability. The valve is easy to install and use, and it comes
with a range of technical support and services.
Our technical support team is available to answer any questions you
may have about the product, including installation, operation, and
maintenance. We also offer repair and replacement services in the
unlikely event that your valve needs to be serviced.
In addition, we provide training and education services to help you
and your team get the most out of your 2 2 Way Solenoid Valve. Our
goal is to ensure that you have the knowledge and skills you need
to use the product effectively and efficiently.
Packing and Shipping:
Product Packaging:
- 2 2 Way Solenoid Valve
- Protective foam packaging
- User manual
Shipping:
- Ships within 1-2 business days
- Standard shipping: 5-7 business days
- Expedited shipping: 2-3 business days
