Product Description:
The product is made with high-quality materials that ensure its
durability and longevity. The oil seal is made from NBR, EPDM, or
VITON, which can withstand a wide range of temperatures and resist
corrosion and wear. The operating temperature range for this
solenoid valve is -5～+80℃, allowing it to function efficiently in
different environments.
The solenoid valve operates with a voltage range of ±10%, making it
suitable for use with different power sources. The product is also
designed to handle fluids with a viscosity of 20 CST below. With
its direct drive type motion pattern, the solenoid valve can open
and close quickly, making it ideal for applications that require
fast fluid control.

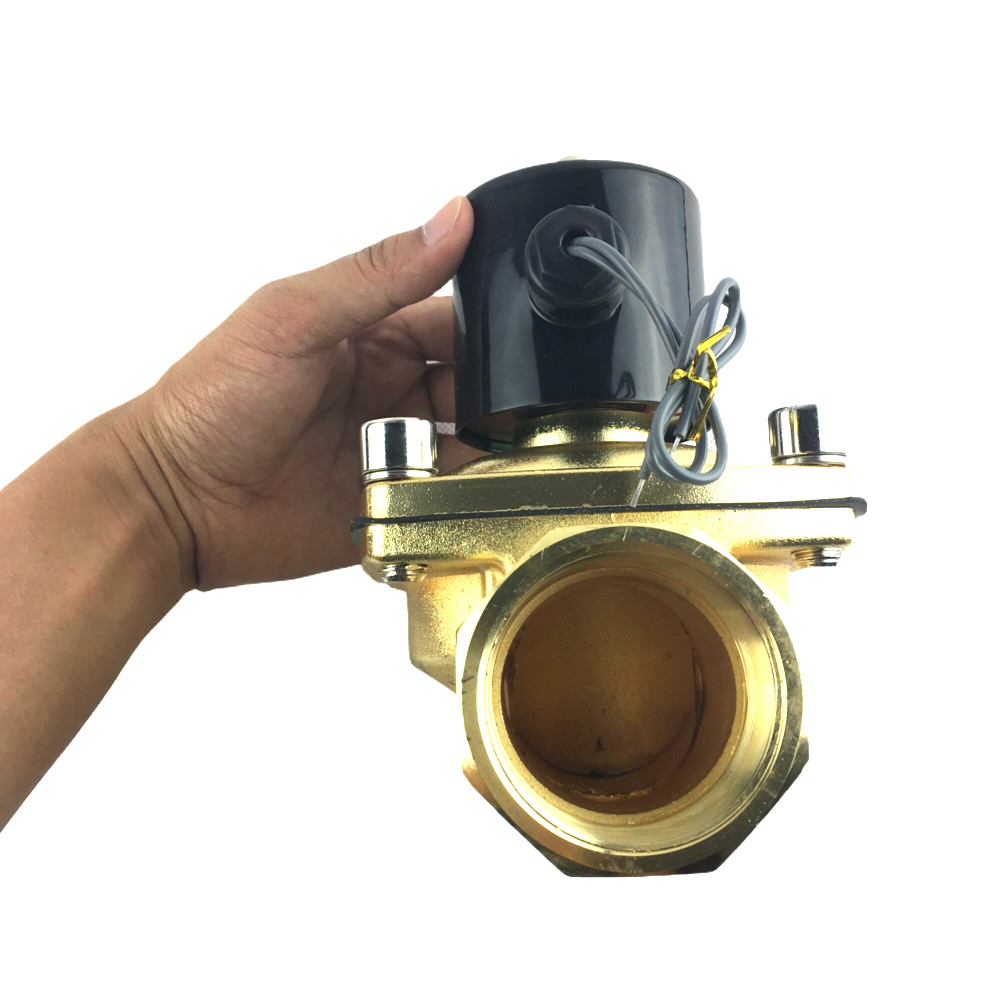

The 2W Series Solenoid Valve is easy to install and use, thanks to
its simple design and compact size. It can be mounted in any
position and requires minimal maintenance, making it a
cost-effective solution for fluid control systems.
In summary, the 2W Series Solenoid Valve is a reliable and
efficient water pneumatic electric solenoid valve that offers
excellent value for money. It is made with high-quality materials,
operates over a wide temperature range, and is suitable for use
with different fluid types. Its direct drive type motion pattern
ensures fast and precise fluid control, making it an ideal solution
for a wide range of industrial and commercial applications.

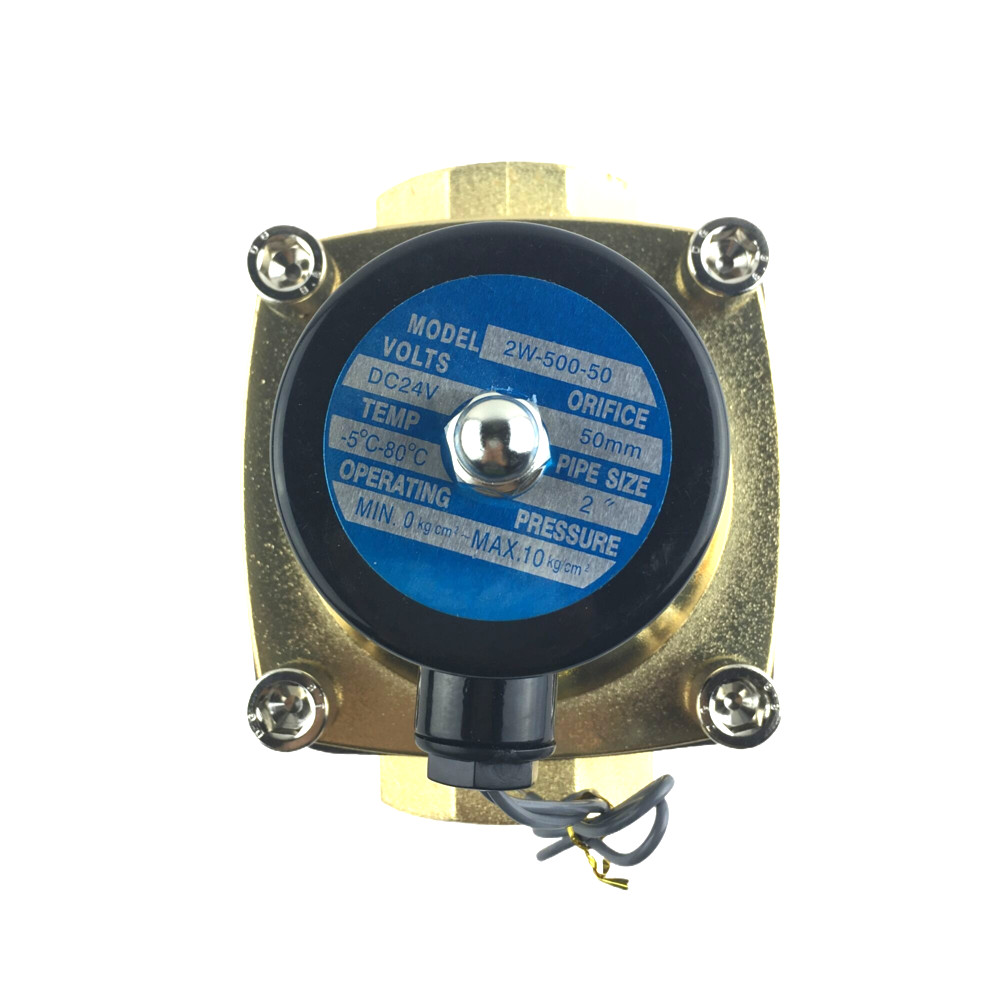

| 2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass (2W Series) |
| Stainless Steel (2S Series) |
| Seal Material | NBR (Standard), EPDM, VITON (Optional) |
| Function | 2 Way Normally Closed (Standard) |
| 2 Way Normally Open (Optional) |
| Operation | Direct Acting | Direct Lift Diaphragm |
| Media | Water, Air, Oil, Gas, etc |
| Fluid Viscosity | 20 CST below |
| Pressure Range | 0 to 1 MPa |
| Temperature Range | NBR: -5 to +80 ºC |
| EPDM: -5 to +120 ºC |
| VITON: -10 to +150 ºC |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Features:
Features:
1. The valve is directly-acting, conductive, and normally closed.
This means that it is ideal for applications where the valve must
be quickly and reliably closed in case of an emergency or power
loss.
2. The valve body material is made from high-strength forged brass.
This material is extremely durable and can withstand high pressures
and temperatures, making it ideal for use in a variety of
industrial settings.
3. The valve can be operated directly without any additional
pressure or actuation. This feature simplifies the assembly process
and reduces the overall cost of the system.
4. The valve is designed to be compact and easy to assemble. Its
small size makes it ideal for use in tight spaces where space is at
a premium.
5. The standard voltage for the valve is 24VDC, 110VAC, or 220VAC,
with a voltage tolerance of ±10% for AC voltage and ±1% for DC
voltage. This ensures that the valve can be used in a wide range of
applications, even in areas with unstable voltage.
6. Other special AC/DC voltages can be made to order according to
the client's specific requirements.
7. The valve is available with threads in BSPT, NPT, or BSP
configurations, making it compatible with a wide range of piping
systems.
8. The standard product fluid temperature is 80°C (NBR). However,
the valve is also available in other temperature ranges such as
fluororubber (130°C), silicone (130°C), and PTFE (185°C) to suit a
variety of industrial applications.
9. The DIN43650A connector coil is interchangeable, making it easy
to replace and maintain the valve.
Support and Services:
The 2 2 Way Solenoid Valve product comes with comprehensive
technical support and services, including:
- Installation assistance
- Product training and education
- Diagnostic and troubleshooting support
- Warranty and repair services
- Maintenance and cleaning recommendations
Our team of experienced technicians is available to provide expert
guidance and support throughout the entire product lifecycle.
Packing and Shipping:
Product Packaging:
- 2 2 Way Solenoid Valve x 1
- Instruction Manual x 1
Shipping:
- Shipping Method: Standard Ground Shipping
- Estimated Delivery Time: 3-5 business days
- Shipping Cost: Free
