Product Description:
The 2W Series Solenoid Valve is made from high-quality materials
that are designed to provide long-lasting performance. The oil seal
is made from either NBR, EPDM or VITON, depending on your specific
requirements. These materials are highly resistant to wear and
tear, and they can withstand high temperatures and pressures
without losing their effectiveness. This makes the 2W Series
Solenoid Valve an ideal choice for demanding applications where
reliability and durability are essential.
The operating temperature range of the 2W Series Solenoid Valve is
-5～+80℃, which means that it can be used in a wide range of
different environments. This makes it suitable for use in both
indoor and outdoor applications, and it can be used in a variety of
different industries. Whether you need a solenoid valve for air,
water, oil, gas or fuel, the 2W Series Solenoid Valve is the
perfect choice.
The 2W Series Solenoid Valve is easy to install and operate. It
features a simple design that is easy to understand, and it can be
installed quickly and easily. It is also highly reliable and
requires minimal maintenance, which makes it an ideal choice for
applications where downtime is not an option.
In conclusion, the 2W Series Solenoid Valve is a high-quality water
pneumatic electric solenoid valve that is designed for use in a
wide range of applications. It is made from high-quality materials
that are designed to provide long-lasting performance, and it has a
voltage range of ±10%, which makes it suitable for a wide range of
different applications. Whether you need a solenoid valve for air,
water, oil, gas or fuel, the 2W Series Solenoid Valve is the
perfect choice. So, if you're looking for a reliable and durable
solenoid valve that is easy to install and operate, look no further
than the 2W Series Solenoid Valve.

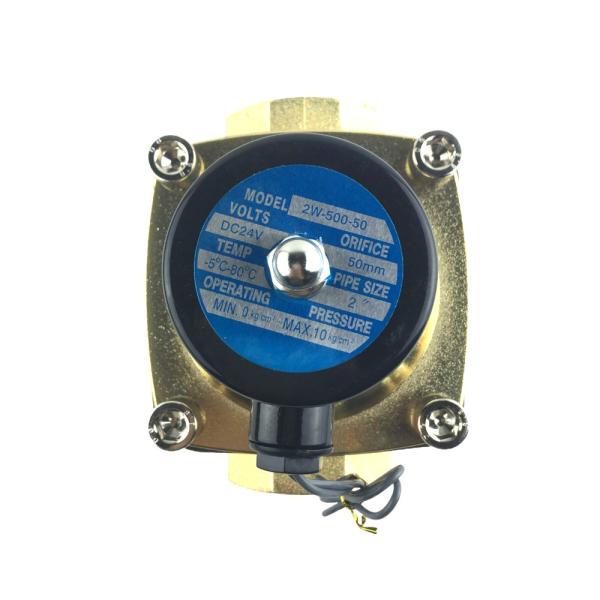

| 2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass (2W Series) |
| Stainless Steel (2S Series) |
| Seal Material | NBR (Standard), EPDM, VITON (Optional) |
| Function | 2 Way Normally Closed (Standard) |
| 2 Way Normally Open (Optional) |
| Operation | Direct Acting | Direct Lift Diaphragm |
| Media | Water, Air, Oil, Gas, etc |
| Fluid Viscosity | 20 CST below |
| Pressure Range | 0 to 1 MPa |
| Temperature Range | NBR: -5 to +80 ºC |
| EPDM: -5 to +120 ºC |
| VITON: -10 to +150 ºC |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Features:
Product Features:
- The valve is Direct-Acting, conductive, and normally closed.
- The valve body material is made of forged brass.
- The valve can be operated directly without pressure.
- The valve is small in size and easy to assemble.
- The valve's standard voltage is available in 24VDC, 110VAC, and
220VAC. AC Voltage tolerance is ± 10%, while DC Voltage tolerance
is ±1%.
- Other special AC/DC valves can be made to client's order.
- The valve's thread type is available in BSPT, NPT, and BSP.
- The standard product fluid temperature is 80°C(NBR).
- The valve's temperature can handle fluororubber at 130°C, Silicon
at 130°C, and PTFE at 185°C.
- The DIN43650A connector coil is interchangeable.
The valve is designed with several features to provide easy
operation for clients. The valve works through direct-acting
conductivity and is normally closed. The valve body is forged
brass, while the size is kept small to ensure easy assembly.
The valve's voltage is 24VDC, 110VAC, and 220VAC. The tolerance for
AC Voltage is ± 10%, while DC Voltage tolerance is ±1%. Other
special AC/DC valves can be made to clients' order. The valve is
also designed to handle different thread types, including BSPT,
NPT, and BSP.
The valve's temperature can handle various levels depending on the
material, including fluororubber at 130°C, Silicon at 130°C, and
PTFE at 185°C. The DIN43650A connector coil is interchangeable,
allowing the valve to be customized based on specific requirements.
Applications:
The 2W025-08 solenoid valve is suitable for various applications
such as air, water, oil, gas, and fuel. It has a voltage range of
±10%, and the operating temperature ranges between -5˚C to +80˚C.
These valves are designed to operate in a variety of applications,
including water brass solenoid valves, water pneumatic electric
solenoid valves, and other similar applications.
The material of the oil seal is NBR, EPDM, or VITON, and it can
handle fluids with a viscosity of 20 CST or below. These valves are
ideal for applications that require high performance and
reliability. They are widely used in various industries such as
food and beverage, chemical, medical, and automotive.
