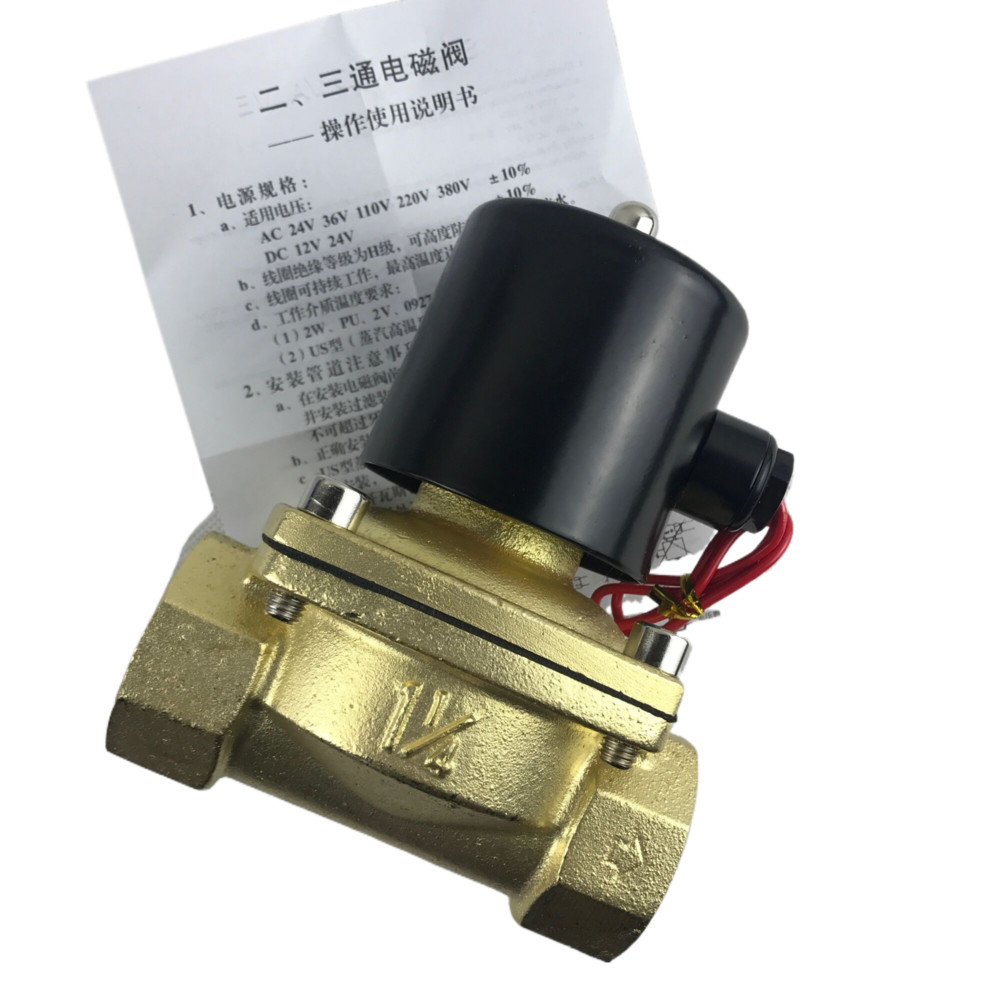

Product Description:
The Operating Temperature Range of the 2W Series Solenoid Valve is
between -5 to +80℃. It allows the valve to function even in harsh
environments where temperatures can fluctuate. The valve is made
with high-quality materials to ensure durability and longevity. The
Material of Oil Seal is available in three options: NBR, EPDM, or
VITON. These materials are highly resistant to wear and tear,
making them perfect for prolonged use.
The Water Pneumatic Electric Solenoid Valve is a versatile product
that can be used in various applications. It is perfect for
controlling the flow of liquids and gases through pipes and tanks.
The valve is easy to install and operate. It features a simple
design that ensures that it can be used by anyone with basic
knowledge of valves.
The Water Pneumatic Electric Solenoid Valve is designed to provide
smooth and precise control of fluids. It features a Direct Drive
Type motion pattern that eliminates the need for an external
actuator. The valve is actuated by an electric solenoid, which
allows for quick and accurate opening and closing of the valve.
In conclusion, the 2W Series Solenoid Valve is a high-quality
product that offers excellent performance and durability. It is a
Water Pneumatic Electric Solenoid Valve that is perfect for
regulating the flow of air, water, oil, gas, and fuel. It is
designed with high-quality materials to withstand harsh
environments and prolonged use. The valve is easy to install and
operate, and it features a Direct Drive Type motion pattern that
ensures smooth and precise control of fluids.
| 2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
| Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass (2W Series) |
| Stainless Steel (2S Series) |
| Seal Material | NBR (Standard), EPDM, VITON (Optional) |
| Function | 2 Way Normally Closed (Standard) |
| 2 Way Normally Open (Optional) |
| Operation | Direct Acting | Direct Lift Diaphragm |
| Media | Water, Air, Oil, Gas, etc |
| Fluid Viscosity | 20 CST below |
| Pressure Range | 0 to 1 MPa |
| Temperature Range | NBR: -5 to +80 ºC |
| EPDM: -5 to +120 ºC |
| VITON: -10 to +150 ºC |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Features:
Features:
Our valve comes with several useful features that make it an
excellent choice for a variety of applications:
1.Direct-Acting, conductive, normally closed.
Our valve is direct-acting and conductive, ensuring reliable and
precise control. It is also normally closed, providing additional
safety and security.
2.Valve body material is forged brass.
The valve body is made of high-quality, durable forged brass,
making it resistant to corrosion and able to withstand harsh
environments.
3.Can be operated directly without pressure.
Our valve can be operated directly without the need for pressure,
making it easy to control and adjust as needed.
4.Small size and easy assembly.
Our valve is compact and easy to assemble, making it suitable for
use in a range of different settings and applications.
5.Standard voltage :
Our valve comes with a standard voltage of 24VDC, 110VAC, or
220VAC. AC Voltage tolerance is ±10%, while DC Voltage tolerance is
±1%.
6.Other special AC/DC can be made to client's order.
If you require a special AC / DC voltage, we are more than happy to
customize our valve to meet your specific needs.
7.Thread: BSPT, NPT , BSP.
Our valve comes with different thread options, including BSPT, NPT,
and BSP, for maximum versatility and ease of use.
8.The standard product fluid temperature is 80°C(NBR).
Our valve is designed to work flawlessly at a standard fluid
temperature of 80°C (NBR), ensuring optimal performance and
reliable operation.
9.Temperature:
Depending on your specific needs, we offer different temperature
options for our valve, including fluororubber (130°C), Silicon
(130°C), and PTFE (185°C).
10. DIN43650A connector Coil is interchangeable.
The DIN43650A connector coil on our valve is interchangeable,
making it easy to switch out components and customize the valve to
your changing needs.
