Product Description:

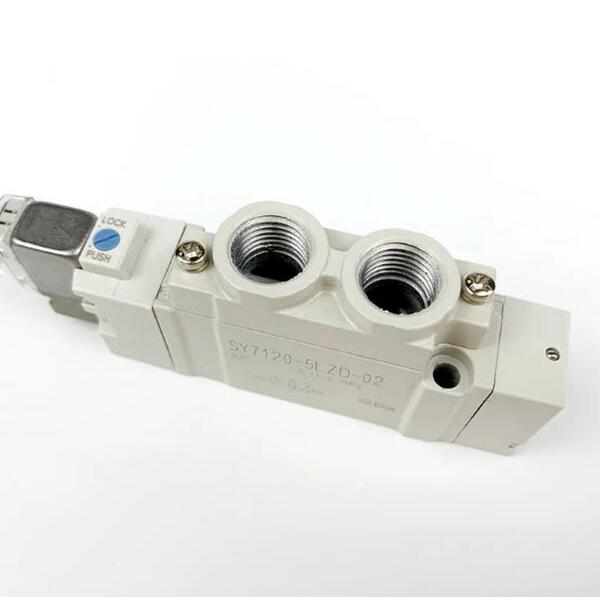

The Series SY presents significant improvements in valve performance, promoting cost-effective solutions to meet your specific requirements. One of the most outstanding features of this series is its high flow capacity with low power consumption, all neatly packed into a compact design.

Furthermore, the SY is highly versatile as it comes in either body ported or base-mounted styles. It can be used individually or in manifold mounted configurations, making it highly adaptable to various applications or system designs. Regardless of your specific needs, the SY series can provide an efficient and reliable solution.

Valve model	Type of actuation		Port size			Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)		1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
						C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY7□20 -□-02	2 position	Single	1 (P) Port 5, 3 (EA, EB) port	14		4.1	0.23	0.93	3.3	0.33	0.81	101	104	125	108
		Double										120	125	167	133
	3 position	Closed center				2.9	0.31	0.70	2.4	0.38	0.63	128	133	175	141
		Exhaust center				2.5	0.39	0.65	3.4 (2.1)	0.35 (0.38)	0.82 (0.54)
		Pressure center				4.3 (2.4)	0.23 (0.32)	0.97 (0.61)	2.2	0.39	0.58
SY7□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8		3.2	0.26	0.77	3.2	0.37	0.82	107	110	131	114
		Double										126	132	174	140
	3 position	Closed center				2.6	0.24	0.63	2.4	0.31	0.62	134	140	182	148
		Exhaust center				2.4	0.25	0.57	2.6 (1.9)	0.42 (0.46)	0.70 (0.56)
		Pressure center				3.3 (2.4)	0.28 (0.22)	0.78 (0.57)	2.2	0.34	0.60
SY7□20 -□-C10	2 position	Single		C10 One- touch fitting for ø10		3.8	0.26	0.86	3.2	0.34	0.82	103	105	126	109
		Double										122	127	169	135
	3 position	Closed center				2.8	0.27	0.67	2.4	0.21	0.59	130	135	177	143
		Exhaust center				2.5	0.25	0.59	2.7 (2.0)	0.38 (0.38)	0.70 (0.56)
		Pressure center				3.8 (2.4)	0.25 (0.31)	0.89 (0.61)	2.3	0.38	0.61

Applications:

The SMC Solenoid Valves are suitable for a wide range of applications across various industries. The valves are ideal for use in fluid control systems, such as those found in the automotive, chemical, and food processing industries. These valves can also be used in pneumatic systems, such as those found in manufacturing and packaging plants.

The SMC 5 Port Solenoid Valve is a versatile valve that can be used in a variety of applications. This valve is designed to provide accurate and reliable control of fluids and gases, making it ideal for use in the medical industry. The valve is also ideal for use in the food processing industry, where it can be used to control the flow of liquids and gases in processing and packaging equipment.

The SMC 5 Port Solenoid Valve is a durable and reliable valve that is designed to withstand the toughest conditions. The valve is enclosed in a dust-proof enclosure, making it suitable for use in harsh environments. The valve is also resistant to impact and vibration, with a rating of 150/30 m/s2. The valve is equipped with an LED indicator light, which makes it easy to monitor the status of the valve.

The SMC Solenoid Valve does not require lubrication, making it easy to maintain. The valve can be mounted in any orientation, making it easy to install in a variety of applications. With a supply ability of 5000 pieces per month, the SMC Solenoid Valve is readily available for use in a wide range of applications.

In conclusion, the SMC Solenoid Valve is a high-quality valve that is suitable for a wide range of applications. With its durable construction, reliable performance, and easy maintenance, this valve is an excellent choice for anyone looking for a reliable fluid control solution. So, whether you are in the automotive, chemical, food processing, or medical industry, the SMC Solenoid Valve is the perfect choice for you.

Support and Services:

Our SMC Solenoid Valves product comes with a comprehensive technical support and services package to ensure that our customers have the best experience possible:

• Expert technical assistance from our experienced team of engineers
• Online technical resources, including manuals, datasheets, and FAQs
• On-site field service and support, including installation, maintenance, and repair
• Training and education programs for customers and distributors
• Customized solutions and design services to meet specific application needs

We are committed to providing exceptional support and service to our customers to ensure that their SMC Solenoid Valves operate effectively and efficiently.

Packing and Shipping:

Product Packaging:

• All SMC Solenoid Valves are packed in a sturdy cardboard box for safe transportation.
• Each valve is individually wrapped in a plastic bag to prevent scratches and damage during transit.
• Product manuals and installation guides are included in the packaging.

Shipping:

• We offer worldwide shipping for all SMC Solenoid Valves.
• Shipping charges vary depending on the destination and weight of the package.
• We use reliable and trusted courier services to ensure timely delivery of your order.
• You will receive a tracking number once your order has been shipped.
