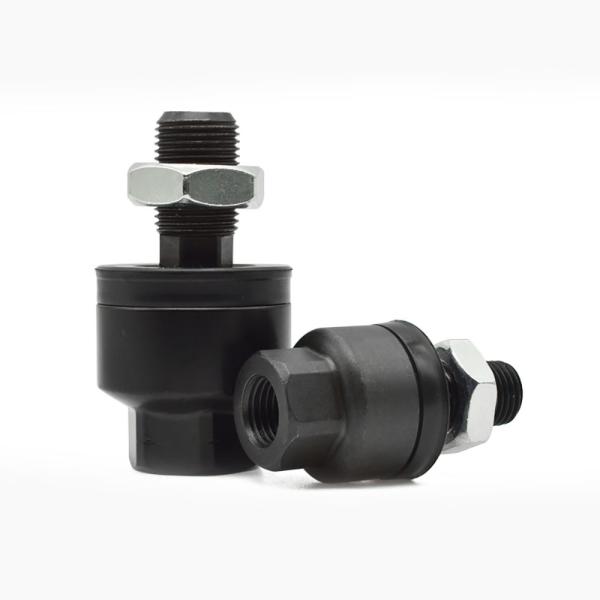

Product Description:
Design Features
The product boasts of the following design features:
- Insufficient absorption of eccentricity and parallelism: The floating joint design can absorb the eccentricity between the
passive body and the cylinder and the insufficient accuracy of
parallelism. There's no need for axis alignment, simplifying the
installation process.
- High temperature specification: The product is suitable for working environments ranging from -5 ℃
to 60 ℃, ensuring connection stability under extreme temperatures.
- High load handling capacity: The product can handle a maximum applied tensile force of 28000 N
on both the compression and tension sides, demonstrating excellent
load bearing capacity.
Technical Specifications
The product has the following technical specifications:
- Installation form: Basic type, providing stable connection method 2.
- Suitable cylinder diameter: 100mm, suitable for cylinder 1 with a diameter of 100mm.
- Thread specification: M26X1.5, standard thread specification, easy to connect with
cylinders and other pneumatic components.
- Swing angle: ± 5 °, allowing a certain eccentricity of 0.5mm, providing greater
flexibility and adaptability.
- Pressure range: 0.05-1 MPa, suitable for various working pressures.
- Environmental temperature and fluid temperature: -5~60 ℃, suitable for various working environments.
Technical Parameters:
| Series | SMC JA Series Floating Joints |
|---|
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
|---|
| Type | Fittings |
|---|
| Connection | Flange |
|---|
| Connection Type Cylinder Side | Tapped |
|---|
| Color | Black |
|---|
| Applicable Cylinder Thread Size | JA Series |
|---|
Applications:
Pneumatic and Hydraulic Systems: SMC's JA series floating joints are ideal for connecting cylinders
and hydraulic cylinders, especially in situations where there is a
need to absorb eccentricity and parallelism. The floating joint
ensures a stable connection and smooth operation of the system.
Automated Machinery: In automated machinery, the floating joint is a vital piece of
equipment for connecting cylinders and driven bodies. It ensures
the stability of the system and aids in its smooth operation.
Handling Systems: JA series floating joints guarantee the stable operation of
cylinders, improving the overall efficiency of the handling system.
Market Positioning: With its excellent design and performance, SMC's JA series
floating joints provide an efficient and flexible connection
solution for pneumatic systems. They are widely used in industrial
automation and are highly regarded for their quality.
User Evaluation: Users have given high praise for the JA series floating joint,
complementing its ability to absorb eccentricity and insufficient
parallelism, high-temperature tolerance, and high load response
ability. It provides a stable and reliable pneumatic connection
solution for users.
Overall, SMC's JA series floating joints are a reliable solution
for connecting pneumatic and hydraulic systems with excellent
performance and design. They are a staple in industrial automation,
delivering stable and efficient operation.
