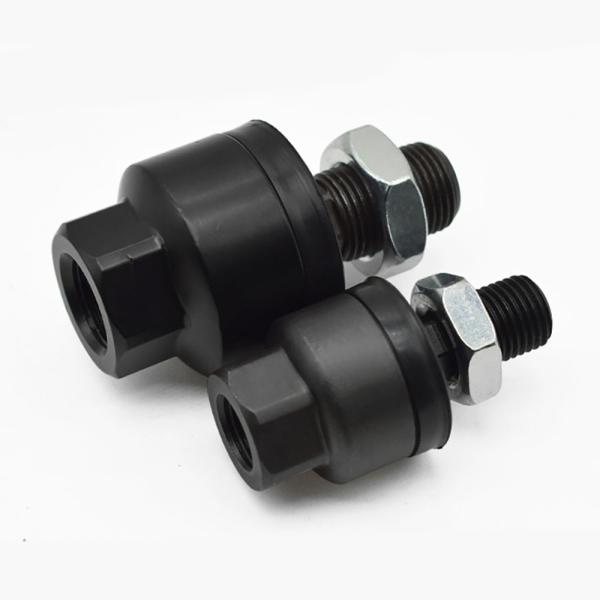

Product Description:
Design Features:
The design features of the product include high temperature
specification, high load handling capacity, and insufficient
absorption of eccentricity and parallelism. With a “floating joint”
design, the product can easily absorb the eccentricity between the
passive body and cylinder, as well as handle insufficient accuracy
of parallelism without needing axis alignment during installation.
This simplifies the installation process and saves valuable time
and effort.
Temperature specification is another major design feature of the
product. With the ability to operate in environments ranging from
-5℃ to 60℃, it offers connection stability under extreme
temperatures, making it suitable for various working environments.
The load bearing capacity of the product is also impressive, with
the maximum applied tensile force on both the compression and
tension sides being 28,000N. This demonstrates the product's
excellent load handling capacity.
Technical Specifications:
The product comes in basic type installation form, providing a
stable connection method 2. It is designed to be suitable for
cylinder 1 with a diameter of 100 mm. The thread specification for
the product is M26X1.5, which is a standard thread specification,
making it easy to connect with cylinders and other pneumatic
components.
The product has a swing angle of ±5°, which allows for a certain
eccentricity of 0.5mm, providing greater flexibility and
adaptability to usage. With a pressure range of 0.05-1 MPa, the
product is suitable for operating in various working pressures.
Additionally, the product is designed to handle environmental
temperatures and fluid temperatures within the range of -5℃ to 60℃,
making it adaptable to various working environments.
Technical Parameters:
| Attribute | Value |
|---|
| Color | Black |
| Connection | Flange |
| Type | Fittings |
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
| Series | JA Series |
| Connection Type Cylinder Side | Tapped |
| JA6-3-050 | JA80-20-150 |
| JA10-4-070 | JA80-20-250 |
| JA15-5-080 | JA80-22-150 |
| JA15-6-100 | JA100-24-300 |
| JA20-8-100 | JA100-26-150 |
| JA20-8-125 | JA100-27-150 |
| JA20-8-150 | JA100-27-200 |
| JA25-10-150 | JA125-27-200 |
| JA30-10-125 | JA140-30-150 |
| JA32-10-100 | JA160-30-200 |
| JA40-12-125 | JA160-33- 200 |
| JA40-12-150 | JA160-36-150 |
| JA40-12-175 | JA160-36-200 |
| JA40-14-125 | JA180-40-150 |
| JA40-14-150 | JA180-40-200 |
| JA63-16-150 | JA180-42-150 |
| JA63-16-200 | JA180-42-200 |
| JA63-18-150 | |
Applications:
Application scenarios:
Pneumatic and hydraulic systems require connectors that can absorb
eccentricity and parallelism. SMC's JA series floating joints are
particularly suitable for such systems. They ensure stable
connection with cylinders and hydraulic cylinders.
In automated machinery, SMC's JA series floating joints connect
cylinders to driven bodies ensuring the stable and efficient
operation of the system. Similarly, in handling systems, these
connectors ensure stable operation of cylinders thereby improving
handling efficiency.
Market positioning and user evaluation:
SMC's JA series floating joints have earned a top spot in the
market by providing an efficient and flexible connection solution
for pneumatic systems. Their excellent design and performance make
them one of the most popular choices in the field of industrial
automation.
Users have acknowledged the effectiveness of SMC's JA series
floating joints. These connectors perform well in eccentricity
absorption, insufficient parallelism, high temperature tolerance,
and high load response ability. The connectors are widely
considered to be a stable and reliable pneumatic connection
solution.
Therefore, SMC's JA series floating joints are the go-to option for
connecting pneumatic and hydraulic systems with confidence in their
efficiency, reliability, and high performance.
